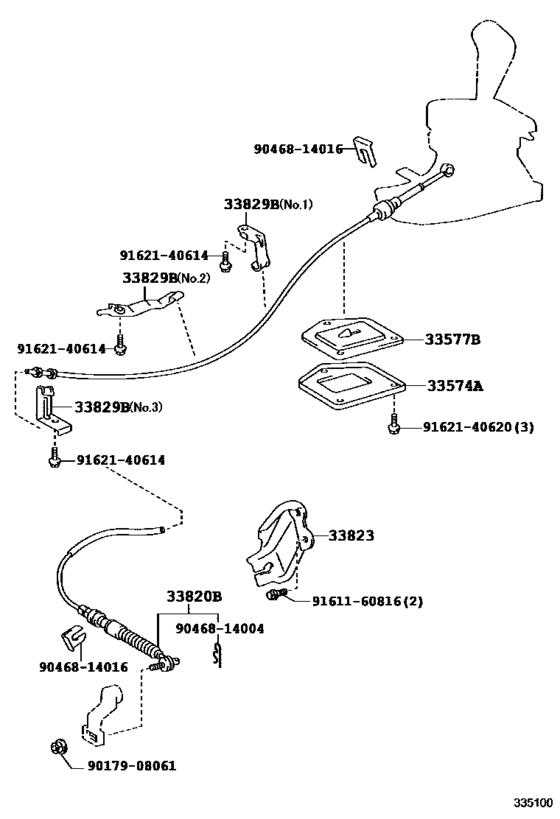

Shift Lever & Retainer ([01.1996 - 08.1997] (9601-9708)4FC..TZG) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33574A
|
33574A
33574-20380 Retainer, Shift Cable Grommet, No.1[01.1996 -] AT191,CT19#,ET196,ST19# |
33574-20380 |
US $18.78 |
||
|
33577B
|
33577B
33577-20020 Cover, Control Shaft Hole[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33577-20020 |
US $26.21 |
||
|
33820B
|
33820B
33820-21030 Cable Assy, Transmission Control[02.1995 - 01.1996] ST195..4FC..TZG |
33820-21030 |
US $232.96 |
||
|
33820B
|
33820B
33820-21080 Cable Assy, Transmission Control[01.1996 - 08.1997] ST195..4FC..TZG |
33820-21080 |
US $173.26 |
||
|
33823
|
33823
33823-20090 Bracket, Transmission Control Cable, No.1[11.1992 - 01.1996] ST195..4FC |
33823-20090 |
US $12.81 |
||
|
33823
|
33823
33823-32031 Bracket, Transmission Control Cable, No.1[01.1996 -] ST195,198..4FC |
33823-32031 |
US $16.16 |
||
|
33829B
|
33829B
33829-20040 Clamp, Transmission Control Cable[01.1996 - 08.1997] ST195..4FC..TZG ＮＯ．１ |
33829-20040 |
US $5.10 |
||
|
33829B
|
33829B
33829-20050 Clamp, Transmission Control Cable[01.1996 - 08.1997] ST195..4FC..TZG ＮＯ．２ |
33829-20050 |
US $8.15 |
||
|
33829B
|
33829B
33829-21010 Clamp, Transmission Control Cable[01.1996 - 08.1997] ST195..4FC..TZG ＮＯ．３ |
33829-21010 |
US $5.10 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.82 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.70 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $1.28 |
||
|
9162140620
|
9162140620
91621-40620 Bolt |
91621-40620 |
from US $1.92 |
||
