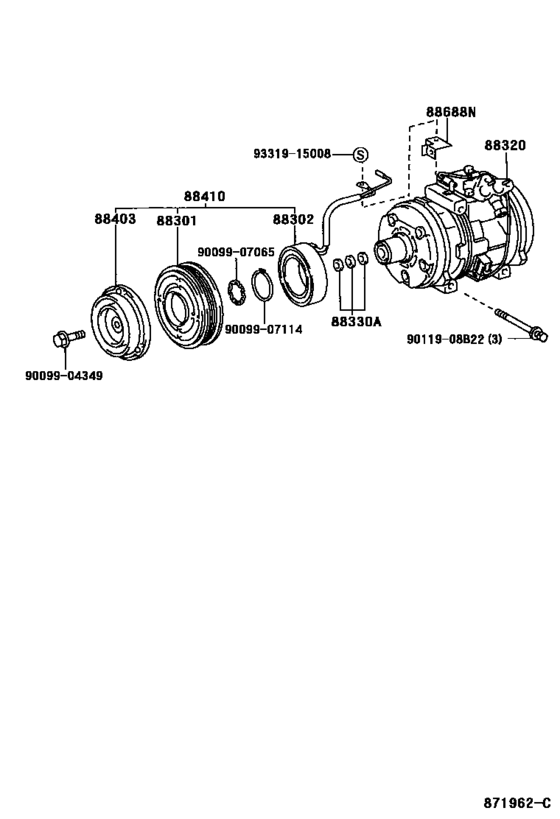

Heating & Air Conditioning - Compressor ([08.1997 - ] (9708- )ST21#..E,G) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST210
- grade
- G
- body
- WG
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-20200
Rotor Sub-Assy, Magnet Clutch
[08.1997 - 12.1999] ST21#..E,G |
88412-20200 |
— | ||
|
88301
|
88301
88412-2B090
Rotor Sub-Assy, Magnet Clutch
[12.1999 -] ST21#..E,G |
88412-2B090 |
— | ||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[08.1997 -] AT211,CT216,ST21# |
88411-2A030 |
US $79.67 |
||
| replacement | |||||
|
88302
|
88302
88411-02030 Stator Sub-Assy, Magnet Clutch[08.1997 -] AT211,CT216,ST21# |
88411-02030 |
US $294.80 |
||
|
88320
|
88320
88320-2B350
Compressor Assy, Cooler
[08.1997 -] ST21#..E,G |
88320-2B350 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1997 -] AT211,CT216,ST21# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1997 -] AT211,CT216,ST21# |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-2B180 Clutch Assy, Magnet[08.1997 - 07.1999] ST21#..E,G |
88410-2B180 |
US $551.82 |
||
| replacement | |||||
|
88410
|
88410
88410-2B240 Clutch Assy, Magnet[08.1997 - 07.1999] ST21#..E,G |
88410-2B240 |
US $349.44 |
||
|
88410
|
88410
88410-2B240 Clutch Assy, Magnet[07.1999 -] ST21#..E,G |
88410-2B240 |
US $349.44 |
||
|
88688N
|
88688N
88688-33260
Bracket, Cooler Compressor
[08.1997 -] ST21#..E,G |
88688-33260 |
— | ||
|
9011908B22
|
9011908B22
90119-08B22
New Genuine Part
|
90119-08B22 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
