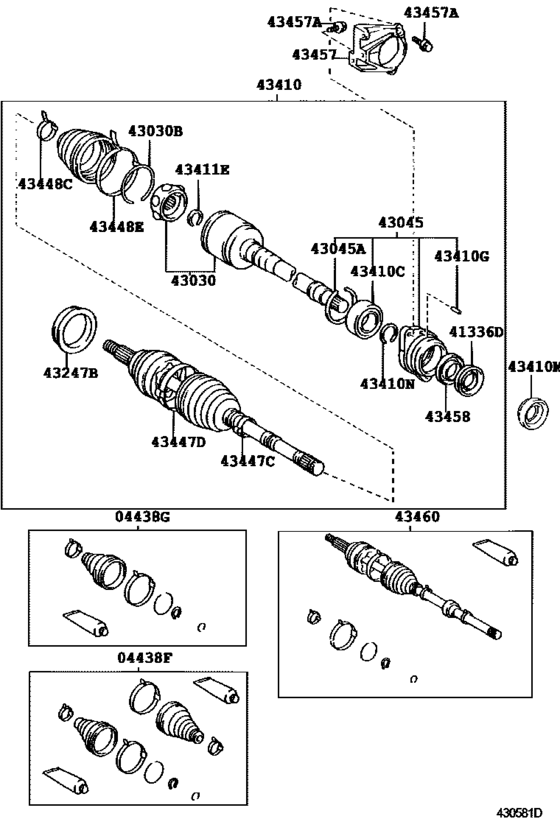

Front Drive Shaft ([12.1999 - ] RH (9912- )ST210..GT) Diagram Toyota CALDINA
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- ST210
- grade
- GT
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 12.1999
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-21060 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 08.2002] ST210..GT |
04438-21060 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04438-21062 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.1999 - 08.2002] ST210..GT |
04438-21062 |
US $141.52 |
||
|
04438F
|
04438F
04438-21061 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2002 -] ST210..GT |
04438-21061 |
US $169.94 |
||
| replacement | |||||
|
04438F
|
04438F
04438-21062 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2002 -] ST210..GT |
04438-21062 |
US $141.52 |
||
|
04438G
|
04438G
04438-21050
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[12.1999 -] ST210..GT |
04438-21050 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-21051 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1999 -] ST210..GT |
04438-21051 |
US $90.27 |
||
|
41336D
|
41336D
41336-20050 Cover, Front Drive Shaft Dust, Rh[08.1999 -] ST210 |
41336-20050 |
US $6.12 |
||
|
43030
|
43030
43030-20100 Joint Assy, Front Drive Inboard, Rh[12.1999 -] ST210..GT |
43030-20100 |
US $439.71 |
||
|
43030B
|
43030B
90521-79001 Ring, Hole Snap[08.1997 -] ST210..GT;CT216,ST215 |
90521-79001 |
US $4.37 |
||
|
43045
|
43045
43045-20010 Case Sub Assy, Drive Shaft Bearing[08.1997 -] ST210 |
43045-20010 |
US $68.32 |
||
|
43045A
|
43045A
96153-00680 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[08.1997 -] ST210 |
96153-00680 |
US $4.02 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[08.1997 -] AT211,CT216,ST21# |
43247-12010 |
from US $10.88 |
||
|
43410
|
43410
43410-21051 Shaft Assy, Front Drive, Rh[12.1999 - 09.2002] ST210..GT |
43410-21051 |
US $1,071.62 |
||
|
43410C
|
43410C
90363-36004 Bearing(For Rear Drive Shaft)[06.1998 -] ST210 |
90363-36004 |
from US $37.54 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[08.1997 -] ST210 |
90250-06003 |
US $1.44 |
||
|
43410M
|
43410M
90311-35019 Seal, Oil, No.2(For Transaxle Case)[08.1997 - 04.2001] ST210 |
90311-35019 |
from US $6.40 |
||
|
43410M
|
43410M
90311-35045 Oil Seal, Front Drive Shaft, Rh[04.2001 - 09.2002] ST210 |
90311-35045 |
from US $4.64 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[08.1997 -] CT216,ST21#..E,G,GT |
90520-33008 |
from US $1.76 |
||
|
43411E
|
43411E
90520-25034 Ring, Snap (For Rear Drive Shaft Outboard Joint)[08.1997 -] ST210..GT;CT216,ST215 |
90520-25034 |
US $1.22 |
||
|
43447C
|
43447C
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1997 - 09.2002] ST210..GT;CT216,ST215 内径＝３４．１ |
90949-01A65 |
US $3.20 |
||
|
43447D
|
43447D
90949-01937 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.1997 -] ST210..GT;CT216,ST215 内径＝９５．０ |
90949-01937 |
US $6.64 |
||
|
43448C
|
43448C
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1997 - 09.2002] ST210..GT;CT216,ST215 |
90949-01108 |
US $3.32 |
||
|
43448E
|
43448E
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1997 - 09.2002] ST210..GT;CT216,ST215 |
42346-22010 |
US $9.43 |
||
|
43457
|
43457
43457-20040
Bracket, Drive Shaft Bearing
[12.1999 -] ST210..GT |
43457-20040 |
— | ||
|
43457A
|
43457A
90105-10285
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
[08.1997 -] ST210 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10285 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[08.1997 -] ST210 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43458
|
43458
43458-20011 Cover, Front Drive Shaft Dust[08.1997 -] ST210 |
43458-20011 |
US $14.33 |
||
|
43460
|
43460
43460-29415 Shaft Assy, Front Drive Outboard Joint, Rh[12.1999 -] ST210..GT |
43460-29415 |
US $563.47 |
||
