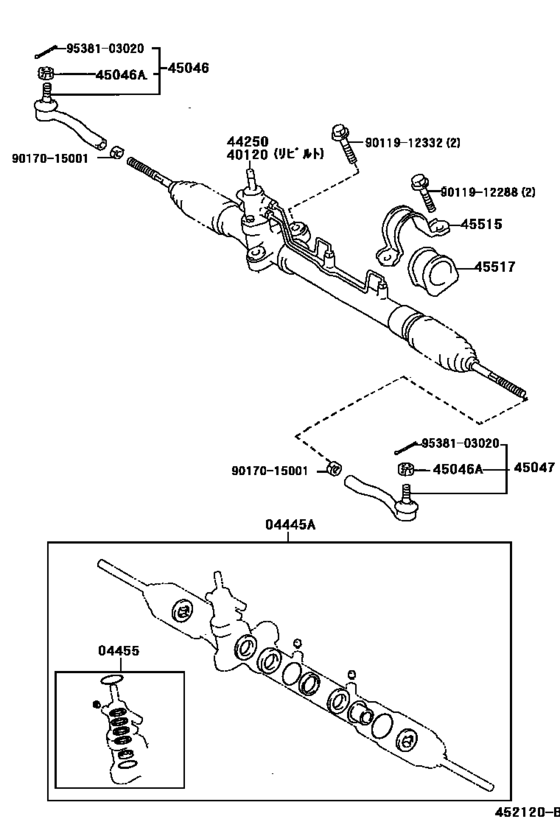

Front Steering Gear & Link ([12.1999 - ] (9912- )ST210..GT) Diagram Toyota CALDINA
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- ST210
- grade
- GT
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 12.1999
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-21010 Gasket Kit, Power Steering Gear(For Rack & Pinion)[12.1999 -] ST210..GT |
04445-21010 |
from US $82.99 |
||
|
04455
|
04455
04455-21010 Gasket Kit, Power Steering Control Valve Overhole[12.1999 -] ST210..GT |
04455-21010 |
US $41.79 |
||
|
40120
|
40120
40120-21030 Gear Assy,power Steering,rebuilt[12.1999 -] ST210..GT ＴＯＹＯＤＡ ＫＯＫＩ |
40120-21030 |
US $1,009.01 |
||
|
40120
|
40120
40120-21050 Gear Assy,power Steering,rebuilt[12.1999 -] ST210..GT ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),ＴＯＹＯＤＡ ＫＯＫＩ |
40120-21050 |
US $1,009.01 |
||
|
44250
|
44250
44250-21030 Gear Assy, Power Steering(For Rack & Pinion)[12.1999 -] ST210..GT |
44250-21030 |
US $1,438.53 |
||
|
44250
|
44250
44250-21050 Gear Assy, Power Steering(For Rack & Pinion)[12.1999 -] ST210..GT ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
44250-21050 |
US $1,438.53 |
||
|
45046
|
45046
45046-29335 End Sub-Assy, Tie Rod, Rh[08.1997 -] AT211,ST210 |
45046-29335 |
US $67.79 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1997 -] AT211,CT216,ST21# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-29105 End Sub-Assy, Tie Rod, Lh[08.1997 -] AT211,ST210 |
45047-29105 |
US $67.79 |
||
|
45515
|
45515
45515-20160
Bracket, Steering Rack Housing, No.2
[08.1997 -] AT211,ST210 |
45515-20160 |
— | ||
|
45517
|
45517
45517-20250 Grommet, Steering Rack Housing, No.2[12.1999 -] ST210..GT |
45517-20250 |
US $14.85 |
||
|
9011912288
|
9011912288
90119-12288 Bolt |
90119-12288 |
US $2.97 |
||
|
9011912332
|
9011912332
90119-12332 New Genuine Part |
90119-12332 |
US $5.07 |
||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
US $2.08 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
