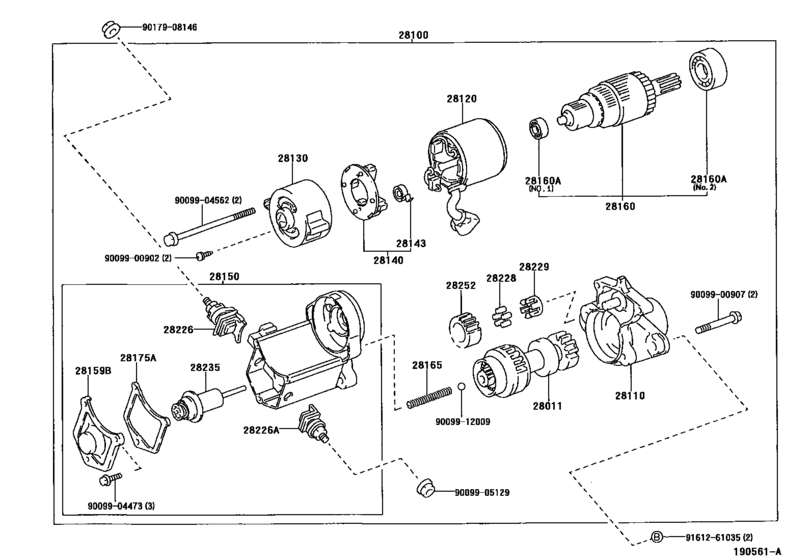

Starter ([08.1997 - ] 12V 1.0KW (9708- )3SFE..ST215..5F) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- G
- body
- WG
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74060
Clutch Sub-Assy, Starter
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28011-74060 |
— | ||
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[08.1997 -] 3SGTE..ST215;3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-74130 Starter Assy[08.1997 -] 3SFE,3SGE..ST21# １２Ｖ １．２ＫＷ |
28100-74130 |
US $1,352.62 |
||
| replacement | |||||
|
28100
|
28100
28100-74140 Starter Assy[08.1997 -] 3SFE,3SGE..ST21# １２Ｖ １．２ＫＷ |
28100-74140 |
US $1,415.23 |
||
|
28100
|
28100
28100-74200 Starter Assy[08.1997 -] 3SFE..ST215..5F １２Ｖ １．０ＫＷ |
28100-74200 |
US $1,282.74 |
||
| replacement | |||||
|
28100
|
28100
28100-74140 Starter Assy[08.1997 -] 3SFE..ST215..5F １２Ｖ １．０ＫＷ |
28100-74140 |
US $1,415.23 |
||
|
28110
|
28110
28110-74100 Housing Assy, Starter Drive[08.1997 -] 3SGTE..ST215;3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28110-74100 |
US $90.27 |
||
|
28110
|
28110
28110-74110 Housing Assy, Starter Drive[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28110-74110 |
US $88.82 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[08.1997 -] 3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28120-16180 |
— | ||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-74110
Frame Assy, Starter Commutator End
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28130-74110 |
— | ||
|
28130
|
28130
28130-74120
Frame Assy, Starter Commutator End
[08.1997 -] 3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28130-74120 |
— | ||
|
28140
|
28140
28140-74010
Holder Assy, Starter Brush
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28140-74010 |
— | ||
|
28140
|
28140
28140-74120 Holder Assy, Starter Brush[08.1997 -] 3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28140-74120 |
US $18.04 |
||
|
28143
|
28143
28143-76060
Spring, Starter Brush
[08.1997 -] 3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28143-76060 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[08.1997 -] 3SFE..ST215..5F;3CTE,3SGTE..CT216,ST215 12V 1.0KW,1.4KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-74140 Switch Assy, Magnet Starter[08.1997 -] 3SGTE..ST215;3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28150-74140 |
US $208.21 |
||
|
28150
|
28150
28150-74200 Switch Assy, Magnet Starter[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28150-74200 |
US $202.38 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[08.1997 -] 3CTE..CT216 12V 2.2KW; 3SFE..ST215..5F 12V 1.0KW |
28159-10040 |
— | ||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[08.1997 -] 3SGTE..ST215;3CTE,3SFE,3SGE..CT216,ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28159-55050 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28160-26071 |
— | ||
|
28160
|
28160
28160-76060 Armature Assy, Starter[08.1997 -] 3SFE,3SGE..ST21# 12V 1.2KW |
28160-76060 |
US $318.86 |
||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[08.1997 -] 3SFE..ST215..5F ＮＯ．１ |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[08.1997 -] 3SFE..ST215..5F ＮＯ．２ |
90099-10113 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[08.1997 -] 3SGTE..ST215;3CTE,3SFE,3SGE..CT216,ST21#..4FC ＮＯ．１; 3SFE..ST215..5F 12V 1.2KW,ＮＯ．１ |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[08.1997 -] 3SGTE..ST215;3CTE,3SFE,3SGE..CT216,ST21#..4FC ＮＯ．２; 3SFE..ST215..5F 12V 1.2KW,ＮＯ．２ |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-74010
Spring, Starter Magnet Switch Return
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28165-74010 |
— | ||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[08.1997 -] 3SFE..ST215..5F 12V 1.2KW; 3SGTE..ST215;3SFE,3SGE..ST21#..4FC 12V 1.4KW |
28165-74070 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[08.1997 -] 3CTE..CT216 12V 2.2KW; 3SFE..ST215..5F 12V 1.0KW |
28175-10040 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[08.1997 -] 3SGTE..ST215;3CTE,3SFE,3SGE..CT216,ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28175-55050 |
US $1.92 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[08.1997 -] 3SFE..ST215..5F 12V 1.2KW |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[08.1997 -] 3SFE..ST215..5F 12V 1.2KW |
28226-64370 |
from US $7.12 |
||
|
28226
|
28226
28226-70040 Starter Kit, Battery Terminal[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28226-70040 |
from US $9.43 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[08.1997 -] 3CTE..CT216 12V 2.2KW; 3SFE..ST215..5F 12V 1.0KW |
28226-72010 |
from US $10.49 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[08.1997 -] 3SGTE..ST215;3CTE,3SFE,3SGE..CT216,ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28226-74070 |
US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.1997 -] 3CTE,3SFE,3SG#..CT216,ST21# |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[08.1997 -] 3CTE..CT216 12V 2.2KW; 3SFE..ST215..5F 12V 1.0KW |
28229-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[08.1997 -] 3SGTE..ST215;3CTE,3SFE,3SGE..CT216,ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-74060
Plunger, Magnet Switch
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28235-74060 |
— | ||
|
28235
|
28235
28235-74130
Plunger, Magnet Switch
[08.1997 -] 3SGTE..ST215;3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28235-74130 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[08.1997 -] 3SFE..ST215..5F 12V 1.0KW |
28254-54070 |
— | ||
|
28252
|
28252
28254-74070
Pinion, Starter Drive
[08.1997 -] 3SGTE..ST215;3SFE,3SGE..ST21#..4FC; 3SFE..ST215..5F 12V 1.2KW |
28254-74070 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
