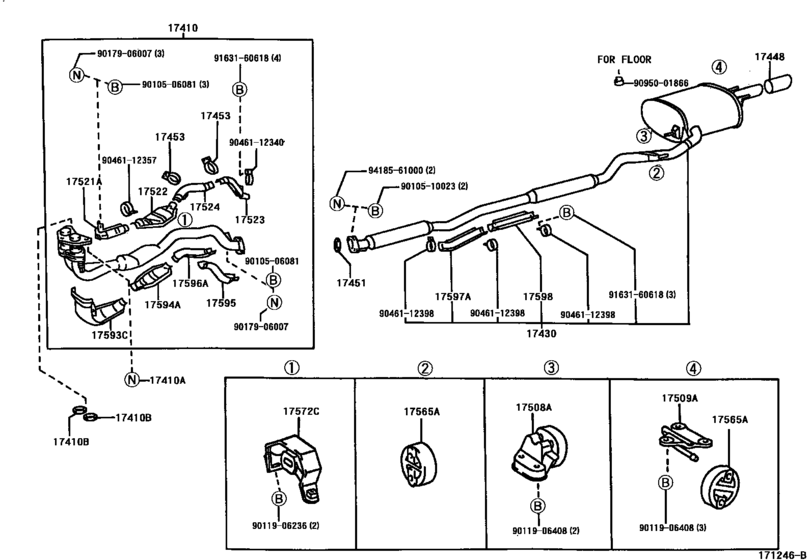

Exhaust Pipe ([08.1997 - ] (9708- )3SGE..ST215) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GT
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-7A690 Pipe Assy, Exhaust, Front[08.1997 -] 3SGE..ST215 |
17410-7A690 |
US $435.34 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1997 -] 3SGE..ST215;3SFE,3SGE..ST210 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1997 -] 3SGE..ST215;3SFE,3SGE..ST210 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06075 Gasket, Exhaust Pipe[08.1997 -] 3SGE..ST21# |
90917-06075 |
from US $9.28 |
||
|
17430
|
17430
17430-7B020 Pipe Assy, Exhaust, Tail[08.1997 -] 3SGE..ST215 |
17430-7B020 |
US $786.24 |
||
|
17448
|
17448
17408-74040 Baffle Sub Assy, Exhaust Tail Pipe[12.1999 -] 3SGE..ST21# |
17408-74040 |
US $69.54 |
||
|
17448
|
17448
17408-74080 Baffle Sub Assy, Exhaust Tail Pipe[08.1997 - 12.1999] 3SGE..ST215 |
17408-74080 |
from US $38.22 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[08.1997 -] 3SG#..ST21# |
90917-06078 |
from US $5.44 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[08.1997 -] 3SG#..ST21# |
90917-A6003 |
US $19.80 |
||
|
17453
|
17453
17453-74090 Clamp, Exhaust Pipe, No.2[08.1997 -] 3SG#..ST215 |
17453-74090 |
US $11.07 |
||
|
17508A
|
17508A
17508-74070 Bracket Sub-Assy, Exhaust Pipe No.3 Support[08.1997 -] 3CTE,3SFE,3SG#..CT216,ST215 |
17508-74070 |
US $20.09 |
||
|
17509A
|
17509A
17509-74220 Bracket Sub-Assy, Exhaust Pipe No.4 Support[08.1997 -] 3SG#..ST215 |
17509-74220 |
US $31.89 |
||
|
17521A
|
17521A
17521-74610 Protector, Exhaust Pipe, Upper No.1[08.1997 -] 3SGE..ST215 |
17521-74610 |
US $47.47 |
||
|
17522
|
17522
17522-74450 Protector, Exhaust Pipe, Upper No.2[08.1997 -] 3SGE..ST215 |
17522-74450 |
US $41.20 |
||
|
17523
|
17523
17523-74190 Protector, Exhaust Pipe, Upper No.3[08.1997 -] 3SG#..ST215 |
17523-74190 |
US $32.76 |
||
|
17524
|
17524
17524-74130 Protector, Exhaust Pipe, Upper No.4[08.1997 -] 3SGE..ST215 |
17524-74130 |
US $27.23 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[08.1997 -] 3SG#..ST215 |
17565-11160 |
from US $9.17 |
||
|
17572C
|
17572C
17571-74510 Bracket, Exhaust Pipe Front (For Front)[08.1997 -] 3SFE,3SG#..ST215 |
17571-74510 |
US $12.67 |
||
|
17593C
|
17593C
17593-74810 Protector, Exhaust Pipe, Lower No.1[08.1997 -] 3SGE..ST215 |
17593-74810 |
US $43.53 |
||
|
17594A
|
17594A
17594-74730 Protector, Exhaust Pipe, Lower No.2[08.1997 -] 3SGE..ST215 |
17594-74730 |
US $37.13 |
||
|
17595
|
17595
17595-74520 Protector, Exhaust Pipe, Lower No.3[08.1997 -] 3SG#..ST215 |
17595-74520 |
US $32.76 |
||
|
17596A
|
17596A
17596-74180 Protector, Exhaust Pipe, Lower No.4[08.1997 -] 3SGE..ST215 |
17596-74180 |
US $24.61 |
||
|
17597A
|
17597A
17597-74210 Protector, Exhaust Pipe, Lower No.5[08.1997 - 01.1998] 3SGE..ST215 |
17597-74210 |
US $34.65 |
||
| replacement | |||||
|
17597A
|
17597A
17597-74211 Protector, Exhaust Pipe, Lower No.5[08.1997 - 01.1998] 3SGE..ST215 |
17597-74211 |
US $34.80 |
||
|
17597A
|
17597A
17597-74211 Protector, Exhaust Pipe, Lower No.5[01.1998 -] 3SGE..ST215 |
17597-74211 |
US $34.80 |
||
|
17598
|
17598
17598-74080 Protector, Exaust Pipe, Lower No.6[08.1997 - 01.1998] 3SGE..ST215 |
17598-74080 |
US $32.61 |
||
| replacement | |||||
|
17598
|
17598
17598-74081 Protector, Exaust Pipe, Lower No.6[08.1997 - 01.1998] 3SGE..ST215 |
17598-74081 |
US $32.76 |
||
|
17598
|
17598
17598-74081 Protector, Exaust Pipe, Lower No.6[01.1998 -] 3SGE..ST215 |
17598-74081 |
US $32.76 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906236
|
9011906236
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9011906408
|
9011906408
90119-06408 New Genuine Part |
90119-06408 |
US $1.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112340
|
9046112340
90461-12340 New Genuine Part |
90461-12340 |
US $6.55 |
||
|
9046112357
|
9046112357
90461-12357 New Genuine Part |
90461-12357 |
US $10.48 |
||
|
9046112398
|
9046112398
90461-12398 New Genuine Part |
90461-12398 |
US $5.68 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
