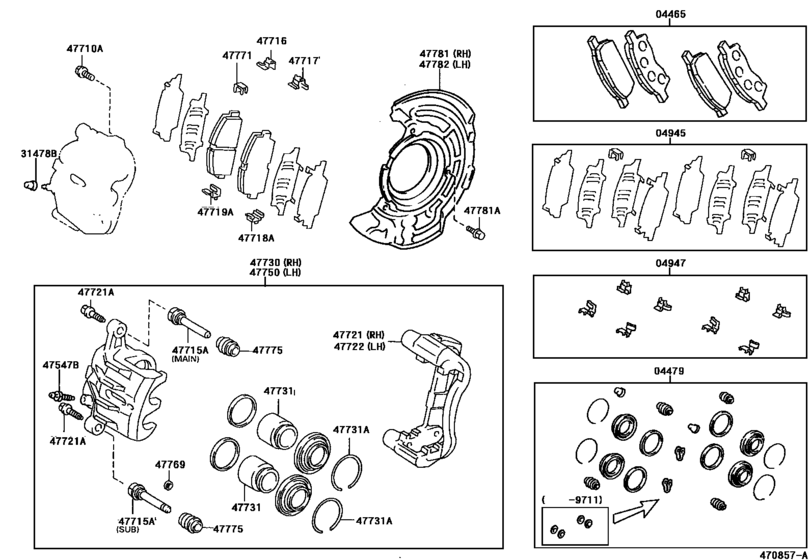

Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- )GT,GTT) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GT
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-20470 Pad Kit, Disc Brake, Front[08.1997 -] ST21#..GT,GTT |
04465-20470 |
US $113.57 |
||
|
04479
|
04479
04479-20280
Cylinder Kit, Disc Brake, Front
[08.1997 - 11.1997] ST215..GT,GTT PNC 47313P = ｲﾗｽﾄｻﾝｼﾖｳ |
04479-20280 |
— | ||
|
04479
|
04479
04479-20310
Cylinder Kit, Disc Brake, Front
[11.1997 -] ST21#..GT,GTT PNC 47313P = ｲﾗｽﾄｻﾝｼﾖｳ |
04479-20310 |
— | ||
| replacement | |||||
|
04479
|
04479
04479-20281 Cylinder Kit, Disc Brake, FrontDISC BRAKE, FRONT [11.1997 -] ST21#..GT,GTT PNC 47313P = ｲﾗｽﾄｻﾝｼﾖｳ |
04479-20281 |
US $35.29 |
||
|
04945
|
04945
04945-20200
Shim Kit, Anti Squeal, Front
[08.1997 -] ST21#..GT,GTT |
04945-20200 |
— | ||
|
04947
|
04947
04947-33100 Fitting Kit, Disc Brake, Front[08.1997 -] AT211,CT216,ST21# |
04947-33100 |
from US $31.82 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[08.1997 -] AT211,CT216,ST21# |
31478-30010 |
from US $1.66 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[08.1997 -] AT211,CT216,ST21# |
47547-20010 |
from US $3.20 |
||
|
47710A
|
47710A
90105-12131 Bolt, Hexagon(For Front Disc Brake Caliper)[08.1997 -] AT211,CT216,ST21# ＊１２−１．２５ＰＸ２５．５−２３ |
90105-12131 |
US $4.16 |
||
|
47715A
|
47715A
47715-22070 Pin, Front Disc Brake Cylinder Slide[08.1997 - 03.2001] ST21#..GT,GTT サブ ピン側 |
47715-22070 |
from US $6.16 |
||
| replacement | |||||
|
47715A
|
47715A
47715220701
Pin, Cylinder Slide
[08.1997 - 03.2001] ST21#..GT,GTT サブ ピン側 |
47715220701 |
— | ||
|
47715A
|
47715A
47715-22080 Pin, Front Disc Brake Cylinder Slide[08.1997 - 03.2001] ST21#..GT,GTT メイン ピン側 |
47715-22080 |
from US $9.73 |
||
|
47716
|
47716
47716-33050 Plate, Pad Support, No.1(For Front Disc Brake)[08.1997 -] AT211,CT216,ST21# |
47716-33050 |
US $3.84 |
||
|
47717
|
47717
47716-33060 Plate, Pad Support, No.2(For Front Disc Brake)[08.1997 -] AT211,CT216,ST21# |
47716-33060 |
US $3.84 |
||
|
47718A
|
47718A
47717-20150 Plate, Pad Support, No.2(For Front Disc Brake)[08.1997 -] AT211,CT216,ST21# |
47717-20150 |
US $3.84 |
||
|
47719A
|
47719A
47717-20160 Plate, Pad Support, No.1(For Front Disc Brake)[08.1997 -] AT211,CT216,ST21# |
47717-20160 |
US $3.84 |
||
|
47721
|
47721
47721-21010
Mounting, Front Disc Brake Cylinder, Rh
[08.1997 -] ST21#..GT,GTT |
47721-21010 |
— | ||
|
47721A
|
47721A
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[08.1997 -] AT211,CT216,ST21# ＊８−１．００ＰＸ２３−１５ |
90105-08164 |
from US $0.94 |
||
|
47722
|
47722
47722-21010 Mounting, Front Disc Brake Cylinder, Lh[08.1997 -] ST21#..GT,GTT |
47722-21010 |
US $152.88 |
||
|
47730
|
47730
47730-21010 Cylinder Assy, Front Disc Brake, Rh[08.1997 -] ST21#..GT,GTT |
47730-21010 |
US $722.18 |
||
|
47731
|
47731
47731-21010
Piston, Front Disc Brake
[08.1997 -] ST21#..GT,GTT |
47731-21010 |
— | ||
| replacement | |||||
|
47731
|
47731
47731-20200 Piston, Front Disc Brake[08.1997 -] ST21#..GT,GTT |
47731-20200 |
US $25.69 |
||
|
47731A
|
47731A
90520-52006 Ring, Set(For Disc Brake Piston)[08.1997 -] ST21#..GT,GTT |
90520-52006 |
US $1.14 |
||
|
47750
|
47750
47750-21010 Cylinder Assy, Disc Brake, Lh[08.1997 -] ST21#..GT,GTT |
47750-21010 |
US $722.18 |
||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[08.1997 -] AT211,CT216,ST21# |
47769-50010 |
from US $0.80 |
||
|
47771
|
47771
47771-50010 Plate, Pad Wear Indicator, No.1[08.1997 -] ST21#..GT,GTT |
47771-50010 |
US $3.49 |
||
|
47775
|
47775
47775-30070
Boot, Bush Dust(For Front Disc Brake)
[08.1997 -] ST21#..GT,GTT |
47775-30070 |
— | ||
| replacement | |||||
|
47775
|
47775
47775-50010 Boot, Bush Dust(For Front Disc Brake)[08.1997 -] ST21#..GT,GTT |
47775-50010 |
from US $2.32 |
||
|
47781
|
47781
47781-21010 Cover, Disc Brake Dust, Front Rh[08.1997 -] ST21#..GT |
47781-21010 |
US $26.64 |
||
|
47781A
|
47781A
90109-06134 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[08.1997 -] AT211,CT216,ST21#..E,G,GT |
90109-06134 |
US $1.92 |
||
|
47782
|
47782
47782-21010 Cover, Disc Brake Dust, Front Lh[08.1997 -] ST21#..GT |
47782-21010 |
US $26.64 |
||
