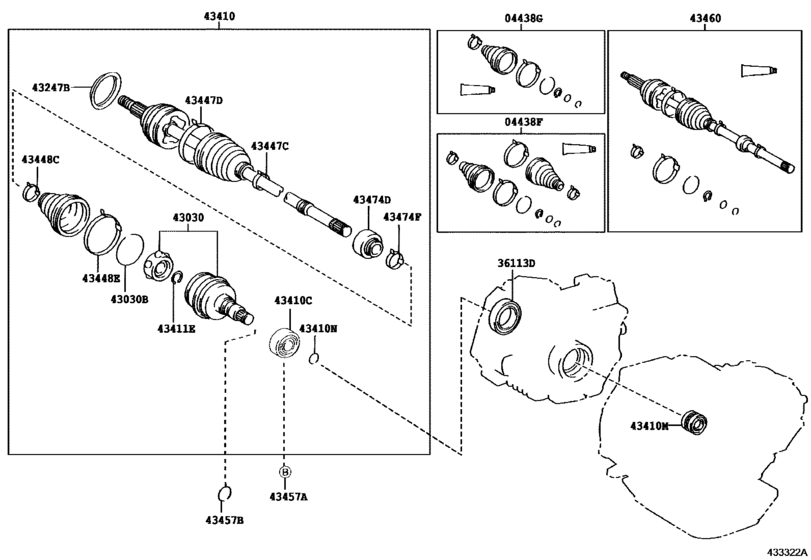

Front Drive Shaft ([08.1997 - ] RH (9708- )CT216,ST215..E,G,GT) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GT
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-21040 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.1997 -] CT216,ST215..E,G,GT |
04438-21040 |
US $145.60 |
||
|
04438G
|
04438G
04438-21030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.1997 -] CT216,ST215..E,G,GT |
04438-21030 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-21031 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.1997 -] CT216,ST215..E,G,GT |
04438-21031 |
from US $90.27 |
||
|
36113D
|
36113D
90311-36006 Seal, Oil (For Transfer Case Rh)[08.1997 -] CT216,ST215..E,G,GT |
90311-36006 |
from US $8 |
||
|
43030
|
43030
43030-21020 Joint Assy, Front Drive Inboard, Rh[08.1997 -] CT216,ST215..E,G,GT |
43030-21020 |
from US $425.15 |
||
|
43030B
|
43030B
90521-79001 Ring, Hole Snap[08.1997 -] ST210..GT;CT216,ST215 |
90521-79001 |
US $4.37 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[08.1997 -] AT211,CT216,ST21# |
43247-12010 |
from US $10.88 |
||
|
43410
|
43410
43410-21030 Shaft Assy, Front Drive, Rh[08.1997 - 09.1997] ST215..E,G,GT |
43410-21030 |
US $1,112.38 |
||
| replacements | |||||
|
43410
|
43410
43410-21031 Shaft Assy, Front Drive, Rh[08.1997 - 09.1997] ST215..E,G,GT |
43410-21031 |
US $1,116.75 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[08.1997 - 09.1997] ST215..E,G,GT |
90178-22001 |
from US $2.15 |
||
|
43410
|
43410
43410-21031 Shaft Assy, Front Drive, Rh[09.1997 - 09.2002] ST215..E,G,GT |
43410-21031 |
US $1,116.75 |
||
|
43410C
|
43410C
90363-36001
Bearing
[08.1997 - 06.1998] CT216,ST21#..E,G,GT |
90363-36001 |
— | ||
| replacements | |||||
|
43410C
|
43410C
90363-36004 Bearing(For Rear Drive Shaft)[08.1997 - 06.1998] CT216,ST21#..E,G,GT |
90363-36004 |
from US $37.54 |
||
|
43410C
|
43410C
90363-36010 Bearing (For Front Drive Shaft)[08.1997 - 06.1998] CT216,ST21#..E,G,GT |
90363-36010 |
US $26.73 |
||
|
43410C
|
43410C
90363-36006 Bearing (For Front Drive Shaft)[06.1998 -] CT216,ST215..E,G,GT |
90363-36006 |
US $37.54 |
||
|
43410M
|
43410M
90316-28003 Oil Seal, Front Drive Shaft, Rh[08.1997 - 09.2002] ST215..5F..(E,G); CT216,ST215..4FC..(E,G,GT) |
90316-28003 |
from US $7.20 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[08.1997 -] CT216,ST21#..E,G,GT |
90520-33008 |
from US $1.76 |
||
|
43411E
|
43411E
90520-25034 Ring, Snap (For Rear Drive Shaft Outboard Joint)[08.1997 -] ST210..GT;CT216,ST215 |
90520-25034 |
US $1.22 |
||
|
43447C
|
43447C
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1997 - 09.2002] ST210..GT;CT216,ST215 内径＝３４．１ |
90949-01A65 |
US $3.20 |
||
|
43447D
|
43447D
90949-01937 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.1997 -] ST210..GT;CT216,ST215 内径＝９５．０ |
90949-01937 |
US $6.64 |
||
|
43448C
|
43448C
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1997 - 09.2002] ST210..GT;CT216,ST215 |
90949-01108 |
US $3.32 |
||
|
43448E
|
43448E
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.1997 - 09.2002] ST210..GT;CT216,ST215 |
42346-22010 |
US $9.43 |
||
|
43457A
|
43457A
90901-19023
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
[08.1997 - 04.1998] CT216,ST215..E,G,GT ＊１０−１．２５ＰＸ２７．８−１４．８ |
90901-19023 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[08.1997 - 04.1998] CT216,ST215..E,G,GT ＊１０−１．２５ＰＸ２７．８−１４．８ |
90901-19060 |
from US $2.08 |
||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[04.1998 -] CT216,ST215..E,G,GT ＊１０−１．２５ＰＸ２８．５−１４．８ |
90901-19060 |
from US $2.08 |
||
|
43457B
|
43457B
90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[08.1997 -] CT216,ST215..E,G,GT |
90521-75002 |
from US $2.11 |
||
|
43460
|
43460
43460-29335 Shaft Assy, Front Drive Outboard Joint, Rh[08.1997 - 09.1997] ST215..E,G,GT |
43460-29335 |
US $583.86 |
||
| replacements | |||||
|
43460
|
43460
43460-29336 Shaft Assy, Front Drive Outboard Joint, Rh[08.1997 - 09.1997] ST215..E,G,GT |
43460-29336 |
US $583.86 |
||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[08.1997 - 09.1997] ST215..E,G,GT |
90178-22001 |
from US $2.15 |
||
|
43460
|
43460
43460-29336 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 -] ST215..E,G,GT |
43460-29336 |
US $583.86 |
||
|
43474D
|
43474D
43474-20090 Damper, Drive Shaft[08.1997 -] ST215..4FC..GTT;CT216,ST215..E,G,GT |
43474-20090 |
US $53.76 |
||
|
43474F
|
43474F
90949-01696 Clamp (For Drive Shaft Damper Setting)[08.1997 -] CT216,ST215 |
90949-01696 |
US $3.01 |
||
