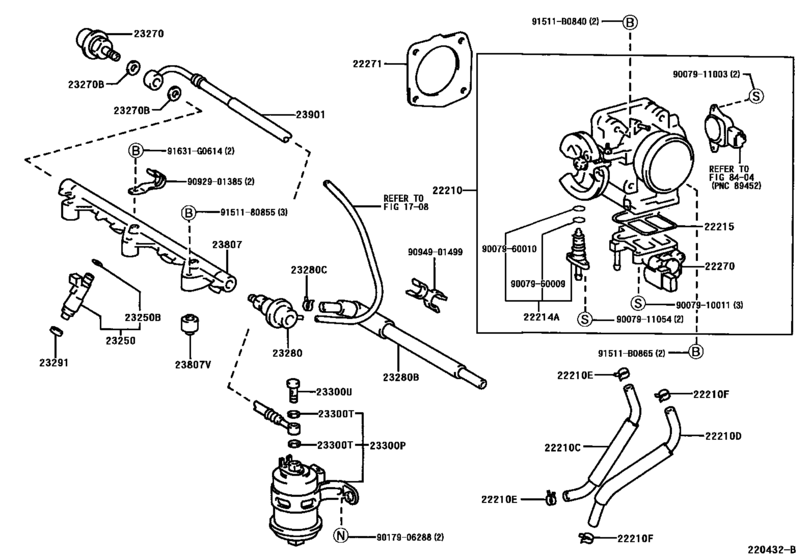

Fuel Injection System ([08.1997 - ] (9708- )3SGE) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GT
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-7A680
Body Assy, Throttle
[08.1997 -] 3SGE..ST21# |
22210-7A680 |
— | ||
|
22210C
|
22210C
16264-88560
Hose, Water By-Pass, No.1
[08.1997 -] 3SGE..ST21# |
16264-88560 |
— | ||
|
22210D
|
22210D
16267-88560
Hose, Water By-Pass, No.2
[08.1997 -] 3SGE..ST21# |
16267-88560 |
— | ||
|
22210E
|
22210E
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1997 - 09.2002] 3SGE..ST21# |
90467-13128 |
from US $1.44 |
||
|
22210F
|
22210F
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1997 - 09.2002] 3SGE..ST21# |
90467-13128 |
from US $1.44 |
||
|
22214A
|
22214A
22214-7A680
Thermostat, Throttle Body
[08.1997 -] 3SGE..ST21# |
22214-7A680 |
— | ||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[08.1997 -] 3SG#..ST21# |
22215-7A680 |
from US $3.45 |
||
|
22270
|
22270
22270-74370 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1997 -] 3SGE..ST21# |
22270-74370 |
US $585.31 |
||
|
22271
|
22271
22271-88560 Gasket, Throttle Body[08.1997 -] 3SGE..ST21# |
22271-88560 |
US $5.44 |
||
|
23250
|
23250
23209-74190 Injector Assy, Fuel[08.1997 -] 3SGE..ST21# |
23209-74190 |
US $272.27 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1997 - 11.1998] 7AFE..AT211; 3SFE,3SG#..ST21# |
90301-07001 |
from US $2.93 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[12.1998 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
90301-07024 |
US $3.04 |
||
|
23270
|
23270
23270-70060
Damper Assy, Fuel Pressure Pulsation
[08.1997 -] 3SG#..ST21# |
23270-70060 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[08.1997 -] 3SG#..ST21# |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1997 -] 3SG#..ST21# |
23232-41081 |
from US $1.40 |
||
|
23280
|
23280
23280-74110
Regulator Assy, Fuel Pressure
[08.1997 -] 3SGE..ST21# |
23280-74110 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-74120
Regulator Assy, Fuel Pressure
[08.1997 -] 3SGE..ST21# |
23280-74120 |
— | ||
|
23280B
|
23280B
23271-88460 Hose, Fuel Pressure Regulator Return[08.1997 -] 3SGE..ST21# |
23271-88460 |
US $32.18 |
||
|
23280C
|
23280C
90467-11065 Clip(For Fuel Hose No.2)[08.1997 -] 3SGE..ST21# |
90467-11065 |
US $2.56 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-19465 Filter, Fuel(For Efi)[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
23300-19465 |
US $103.38 |
||
|
23300T
|
23300T
90430-12026 Gasket[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
96341-11200 |
US $2.72 |
||
|
23807
|
23807
23814-88560 Pipe Sub-Assy, Fuel Delivery[08.1997 -] 3SGE..ST21# |
23814-88560 |
US $168.90 |
||
|
23807V
|
23807V
90561-08051 Spacer, No.1(For Delivery Pipe)[08.1997 -] 3SGE..ST21# |
90561-08051 |
US $3.04 |
||
|
23901
|
23901
23901-88560 Tube Sub-Assy, Fuel[08.1997 -] 3SGE..ST21# |
23901-88560 |
US $214.03 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
91511B0865
|
91511B0865
91511-B0865 New Genuine Part |
91511-B0865 |
US $3.20 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
US $0.96 |
||
|
9007910011
|
9007910011
90079-10011 New Genuine Part |
90079-10011 |
US $1.76 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9007911054
|
9007911054
90079-11054 New Genuine Part |
90079-11054 |
US $1.60 |
||
|
9007960009
|
9007960009
90079-60009
New Genuine Part
|
90079-60009 |
— | ||
|
9007960010
|
9007960010
90079-60010
New Genuine Part
|
90079-60010 |
— | ||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
US $1.12 |
||
|
9092901385
|
9092901385
90929-01385
New Genuine Part
|
90929-01385 |
— | ||
|
9094901499
|
9094901499
90949-01499 New Genuine Part |
90949-01499 |
US $1.60 |
||
|
9151180855
|
9151180855
91511-80855
New Genuine Part
|
91511-80855 |
— | ||
| replacement | |||||
|
9151180855
|
9151180855
91511-C0855 New Genuine Part |
91511-C0855 |
US $0.87 |
||
