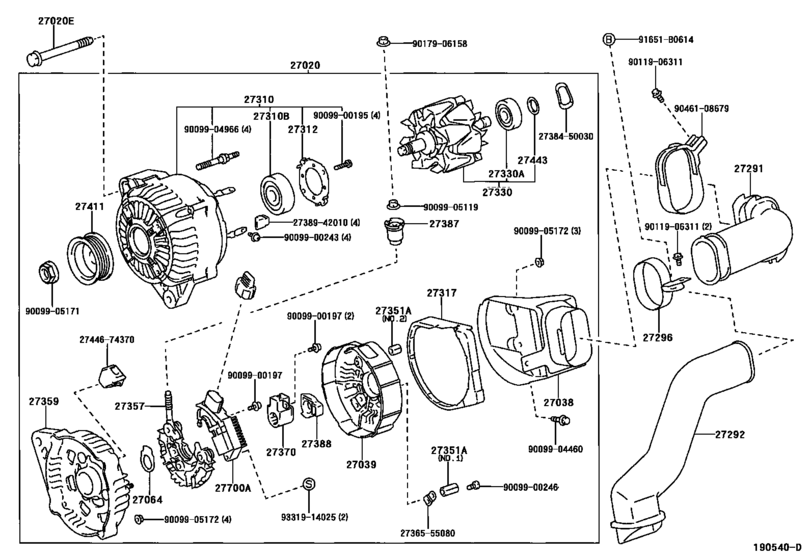

Alternator ([08.1997 - ] 12V 100A (9708- )3SGTE) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-74720 Alternator Assy[08.1997 -] 3SGTE..ST215 １２Ｖ １００Ａ |
27060-74720 |
US $1,820 |
||
|
27020E
|
27020E
90105-10249 Bolt(For Alternator)[08.1997 - 09.2002] 3SFE,3SG#..ST21# |
90105-10249 |
US $4.96 |
||
|
27038
|
27038
27038-74620
Duct Sub-Assy, Alternator Air
[08.1997 -] 3SGTE..ST215 |
27038-74620 |
— | ||
|
27039
|
27039
27039-20060
Cover, Alternator Rear End
[08.1997 - 04.2001] 3CTE,3SGTE..CT216,ST215 |
27039-20060 |
— | ||
|
27039
|
27039
27039-20160
Cover, Alternator Rear End
[04.2001 -] 3CTE,3SGTE..CT216,ST215 |
27039-20160 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
27064-42010 |
from US $2.10 |
||
|
27291
|
27291
27291-74040 Duct, Alternator, No.1[08.1997 -] 3SGTE..ST215 |
27291-74040 |
US $38.15 |
||
|
27292
|
27292
27292-74040 Duct, Alternator, No.2[08.1997 -] 3SGTE..ST215 |
27292-74040 |
US $43.53 |
||
|
27296
|
27296
27296-74030 Clamp, Alternator Duct[08.1997 -] 3SGTE..ST215 |
27296-74030 |
US $8.88 |
||
|
27310
|
27310
27310-74620
Frame Assy, Drive End, Alternator
[08.1997 -] 3SGTE..ST215 |
27310-74620 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
27312-42010 |
— | ||
|
27317
|
27317
27317-74620
Packing, Cover, Rear End
[08.1997 -] 3SGTE..ST215 |
27317-74620 |
— | ||
|
27330
|
27330
27330-28050
Rotor Assy, Alternator
[07.2000 -] 3SGTE..ST215 |
27330-28050 |
— | ||
|
27330
|
27330
27330-42020
Rotor Assy, Alternator
[08.1997 - 07.2000] 3SGTE..ST215 |
27330-42020 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-28050
Rotor Assy, Alternator
[08.1997 - 07.2000] 3SGTE..ST215 |
27330-28050 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
90099-10140 |
from US $9.43 |
||
|
27351A
|
27351A
27351-76040
Collar, Adjusting Alternator
[08.1997 -] 3SGTE..ST215 ＮＯ．１ |
27351-76040 |
— | ||
|
27351A
|
27351A
27351-76050
Collar, Adjusting Alternator
[08.1997 -] 3SGTE..ST215 ＮＯ．２ |
27351-76050 |
— | ||
|
27357
|
27357
27357-20060 Holder, Alternator, W/rectifier[08.1997 -] 3CTE,3SGTE..CT216,ST215 |
27357-20060 |
from US $71.45 |
||
|
27359
|
27359
27359-74620
Frame, Alternator Rectifier End
[08.1997 -] 3SGTE..ST215 |
27359-74620 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
27370-75060 |
from US $16.50 |
||
|
27387
|
27387
27387-42021 Insulator, Terminal[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
27387-42021 |
US $2.42 |
||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1997 -] 7AFE,3SFE,3SG#..AT211,ST21# |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-74050
Pulley, Alternator
[08.1997 -] 3SGTE..ST215 |
27411-74050 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1997 -] 7AFE,3CTE,3SFE,3SG#..AT211,CT216,ST21# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-64130 Regulator Assy, Generator[08.1997 -] 3SGTE..ST215 |
27700-64130 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-46060 Regulator Assy, Generator[08.1997 -] 3SGTE..ST215 |
27700-46060 |
US $279.55 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738450030
|
2738450030
27384-50030 Holder, Alternator Brush, A |
27384-50030 |
from US $2.80 |
||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
2744674370
|
2744674370
27446-74370
Clip, Alternator Cord
|
27446-74370 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904460
|
9009904460
90099-04460 New Genuine Part |
90099-04460 |
US $0.80 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9011906311
|
9011906311
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9046108679
|
9046108679
90461-08679
New Genuine Part
|
90461-08679 |
— | ||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
