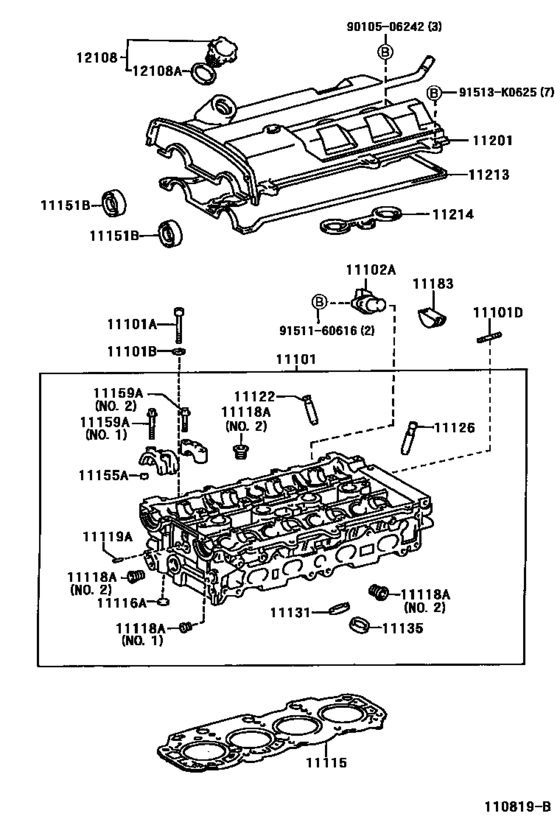

Cylinder Head ([08.1997 - ] (9708- )3SGTE) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-88580 Head Sub-Assy, Cylinder[08.1997 -] 3SGTE..ST215 |
11101-88580 |
US $2,096.64 |
||
|
11101A
|
11101A
90910-02094 Bolt(For Cylinder Head Set)[08.1997 -] 3SG#..ST21# |
90910-02094 |
from US $6.56 |
||
|
11101B
|
11101B
90201-10060 Washer, Plate(For Cylinder Head Set)[08.1997 -] 3SG#..ST21# |
90201-10060 |
US $3.20 |
||
|
11101D
|
11101D
90126-08008 Bolt, Stud(For Water Outlet)[08.1997 -] 3SGTE..ST215 |
90126-08008 |
from US $1.13 |
||
|
11102A
|
11102A
90919-05007 Sensor, Cam Position[08.1997 -] 3SG#..ST21# |
90919-05007 |
from US $99.16 |
||
|
11115
|
11115
11115-88580 Gasket, Cylinder Head[08.1997 -] 3SGTE..ST215 |
11115-88580 |
US $118.81 |
||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[08.1997 -] 3SG#..ST21# |
96411-41800 |
from US $1.72 |
||
|
11118A
|
11118A
90341-18010 Plug, W/head Straight Screw, No.1[08.1997 -] 3SGTE..ST215 ＮＯ．１ |
90341-18010 |
US $10.48 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[08.1997 -] 3SGE..ST21#; 3SGTE..ST215 ＮＯ．２ |
90341-27003 |
from US $7.16 |
||
|
11119A
|
11119A
90250-06003 Pin, Straight[08.1997 -] 3SFE,3SGTE..ST21# 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11122
|
11122
11122-88460 Bush, Intake Valve Guide[08.1997 -] 3SGTE..ST215 ＳＴＤ |
11122-88460 |
US $12.32 |
||
|
11122
|
11122
11123-88460 Bush, Intake Valve Guide[08.1997 -] 3SGTE..ST215 Ｏ／Ｓ ０．０５ |
11123-88460 |
US $10.34 |
||
|
11126
|
11126
11122-88460 Bush, Intake Valve Guide[08.1997 -] 3SGTE..ST215 ＳＴＤ |
11122-88460 |
US $12.32 |
||
|
11126
|
11126
11123-88460 Bush, Intake Valve Guide[08.1997 -] 3SGTE..ST215 Ｏ／Ｓ ０．０５ |
11123-88460 |
US $10.34 |
||
|
11131
|
11131
11131-74010 Seat, Intake Valve[08.1997 -] 3SGTE..ST215 ＳＴＤ |
11131-74010 |
US $38.88 |
||
|
11131
|
11131
11132-74010 Seat, Intake Valve[08.1997 -] 3SGTE..ST215 Ｏ／Ｓ ０．０３ |
11132-74010 |
US $18.93 |
||
|
11135
|
11135
11135-74010 Seat, Exhaust Valve[08.1997 -] 3SGTE..ST215 ＳＴＤ |
11135-74010 |
US $34.94 |
||
|
11135
|
11135
11136-74010 Seat, Exhaust Valve[08.1997 -] 3SGTE..ST215 Ｏ／Ｓ ０．０３ |
11136-74010 |
US $19.95 |
||
|
11151B
|
11151B
90311-35035 Seal, Oil(For Camshaft Setting)[08.1997 -] 3SGTE..ST215 |
90311-35035 |
from US $4.96 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.1997 -] 3SGTE..ST215 |
90253-10004 |
US $1.92 |
||
|
11159A
|
11159A
90119-07001 Bolt(For Head To Camshaft Bearing Cap)[08.1997 -] 3SGTE..ST215 ＮＯ．１ |
90119-07001 |
US $3.20 |
||
|
11159A
|
11159A
90119-07002 Bolt(For Head To Camshaft Bearing Cap)[08.1997 -] 3SG#..ST21# ＮＯ．２ |
90119-07002 |
US $3.20 |
||
|
11183
|
11183
11183-88580 Plug, Semicircular[08.1997 -] 3SGTE..ST215 |
11183-88580 |
US $10.72 |
||
|
11201
|
11201
11201-88580
Cover Sub-Assy, Cylinder Head
[08.1997 -] 3SGTE..ST215 |
11201-88580 |
— | ||
|
11213
|
11213
11213-88580 Gasket, Cylinder Head Cover[08.1997 -] 3SGTE..ST215 |
11213-88580 |
from US $25.23 |
||
|
11214
|
11214
11214-88580 Gasket, Cylinder Head Cover, No.2[08.1997 -] 3SGTE..ST215 |
11214-88580 |
from US $8.89 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
90430-37140 |
from US $1.25 |
||
|
91513K0625
|
91513K0625
91513-K0625 New Genuine Part |
91513-K0625 |
US $0.87 |
||
|
9010506242
|
9010506242
90105-06242 New Genuine Part |
90105-06242 |
US $2.08 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
