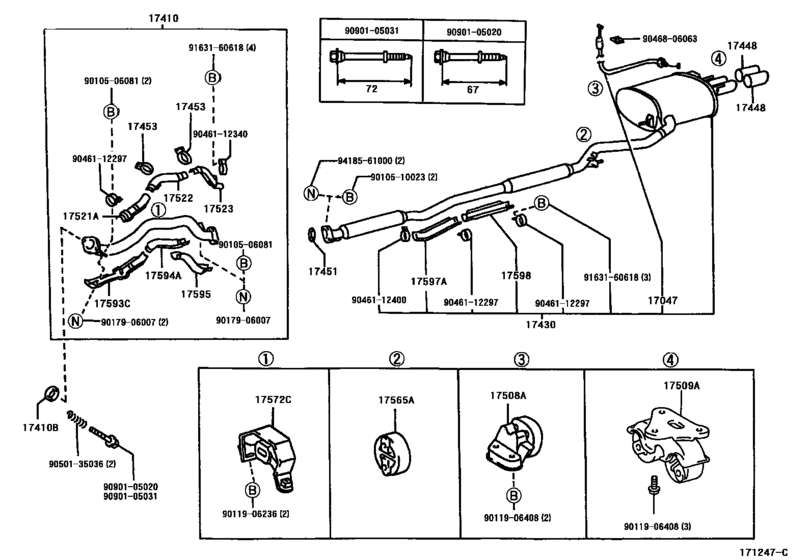

Exhaust Pipe ([08.1997 - ] (9708- )3SGTE) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17047
|
17047
17047-74010 Cable Sub-Assy, Exhaust Pipe Gas Control[08.1997 -] 3SGTE..ST215 |
17047-74010 |
US $56.49 |
||
|
17410
|
17410
17410-7A700
Pipe Assy, Exhaust, Front
[08.1997 -] 3SGTE..ST215 |
17410-7A700 |
— | ||
|
17410B
|
17410B
17451-74051 Gasket, Exhaust Pipe[08.1997 -] 3SFE,3SGTE..ST215 |
17451-74051 |
from US $16.38 |
||
|
17430
|
17430
17430-7B030 Pipe Assy, Exhaust, Tail[08.1997 - 05.1998] 3SGTE..ST215 |
17430-7B030 |
US $808.08 |
||
| replacement | |||||
|
17430
|
17430
17430-7B031 Pipe Assy, Exhaust, Tail[08.1997 - 05.1998] 3SGTE..ST215 |
17430-7B031 |
US $808.08 |
||
|
17430
|
17430
17430-7B031 Pipe Assy, Exhaust, Tail[05.1998 -] 3SGTE..ST215 |
17430-7B031 |
US $808.08 |
||
|
17448
|
17448
17408-74090 Baffle Sub Assy, Exhaust Tail Pipe[08.1997 -] 3SGTE..ST215 |
17408-74090 |
US $40.62 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[08.1997 -] 3SG#..ST21# |
90917-06078 |
from US $5.44 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[08.1997 -] 3SG#..ST21# |
90917-A6003 |
US $19.80 |
||
|
17453
|
17453
17453-74090 Clamp, Exhaust Pipe, No.2[08.1997 -] 3SG#..ST215 |
17453-74090 |
US $11.07 |
||
|
17508A
|
17508A
17508-74070 Bracket Sub-Assy, Exhaust Pipe No.3 Support[08.1997 -] 3CTE,3SFE,3SG#..CT216,ST215 |
17508-74070 |
US $20.09 |
||
|
17509A
|
17509A
17509-74220 Bracket Sub-Assy, Exhaust Pipe No.4 Support[08.1997 -] 3SG#..ST215 |
17509-74220 |
US $31.89 |
||
|
17521A
|
17521A
17521-74600 Protector, Exhaust Pipe, Upper No.1[08.1997 -] 3SGTE..ST215 |
17521-74600 |
US $43.53 |
||
|
17522
|
17522
17522-74460 Protector, Exhaust Pipe, Upper No.2[08.1997 -] 3SGTE..ST215 |
17522-74460 |
US $30.43 |
||
|
17523
|
17523
17523-74190 Protector, Exhaust Pipe, Upper No.3[08.1997 -] 3SG#..ST215 |
17523-74190 |
US $32.76 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[08.1997 -] 3SG#..ST215 |
17565-11160 |
from US $9.85 |
||
|
17572C
|
17572C
17571-74510 Bracket, Exhaust Pipe Front (For Front)[08.1997 -] 3SFE,3SG#..ST215 |
17571-74510 |
US $12.67 |
||
|
17593C
|
17593C
17593-74820 Protector, Exhaust Pipe, Lower No.1[08.1997 -] 3SGTE..ST215 |
17593-74820 |
US $43.53 |
||
|
17594A
|
17594A
17594-74740 Protector, Exhaust Pipe, Lower No.2[08.1997 -] 3SGTE..ST215 |
17594-74740 |
US $27.23 |
||
|
17595
|
17595
17595-74520 Protector, Exhaust Pipe, Lower No.3[08.1997 -] 3SG#..ST215 |
17595-74520 |
US $32.76 |
||
|
17597A
|
17597A
17597-74220 Protector, Exhaust Pipe, Lower No.5[08.1997 - 01.1998] 3SGTE..ST215 |
17597-74220 |
US $41.20 |
||
| replacement | |||||
|
17597A
|
17597A
17597-74221 Protector, Exhaust Pipe, Lower No.5[08.1997 - 01.1998] 3SGTE..ST215 |
17597-74221 |
US $41.20 |
||
|
17597A
|
17597A
17597-74221 Protector, Exhaust Pipe, Lower No.5[01.1998 -] 3SGTE..ST215 |
17597-74221 |
US $41.20 |
||
|
17598
|
17598
17598-74090 Protector, Exaust Pipe, Lower No.6[08.1997 - 01.1998] 3SGTE..ST215 |
17598-74090 |
US $41.20 |
||
| replacement | |||||
|
17598
|
17598
17598-74091 Protector, Exaust Pipe, Lower No.6[08.1997 - 01.1998] 3SGTE..ST215 |
17598-74091 |
US $41.20 |
||
|
17598
|
17598
17598-74091 Protector, Exaust Pipe, Lower No.6[01.1998 -] 3SGTE..ST215 |
17598-74091 |
US $41.20 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906236
|
9011906236
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9011906408
|
9011906408
90119-06408 New Genuine Part |
90119-06408 |
US $1.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112297
|
9046112297
90461-12297 Clamp, Exhaust Pipe |
90461-12297 |
US $4.95 |
||
|
9046112340
|
9046112340
90461-12340 New Genuine Part |
90461-12340 |
US $6.55 |
||
|
9046112400
|
9046112400
90461-12400 Clamp, Exhaust Pipe |
90461-12400 |
US $5.76 |
||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.44 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9090105031
|
9090105031
90901-05031 BOLT |
90901-05031 |
from US $3.68 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
