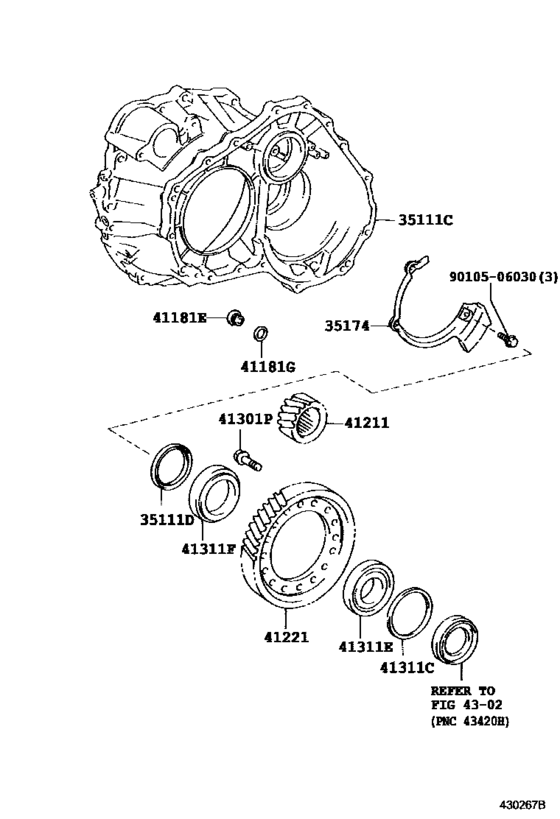

Front Axle Housing & Differential ([11.1997 - ] U140F (9711- )4FC..GTT) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-21010 Housing, Transaxle[11.1997 - 05.2002] ST215..4FC..GTT |
35105-21010 |
US $848.85 |
||
| replacements | |||||
|
35111C
|
35111C
35104-28083 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [11.1997 - 05.2002] ST215..4FC..GTT |
35104-28083 |
US $963.87 |
||
|
35111C
|
35111C
35105-48023 Housing, Transaxle[11.1997 - 05.2002] ST215..4FC..GTT |
35105-48023 |
US $591.14 |
||
|
35111C
|
35111C
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[11.1997 - 05.2002] ST215..4FC..GTT |
90105-06320 |
— | ||
|
35111C
|
35111C
90301-06008 Ring, O (For Transfer Oil Strainer)[11.1997 - 05.2002] ST215..4FC..GTT |
90301-06008 |
US $3.14 |
||
|
35111C
|
35111C
90301-10189 Ring, O(For Oil Cooler Tube Union)[11.1997 - 05.2002] ST215..4FC..GTT |
90301-10189 |
US $2.72 |
||
|
35111C
|
35111C
35105-21011 Housing, Transaxle[05.2002 - 09.2002] ST215..4FC..GTT |
35105-21011 |
US $850.30 |
||
| replacements | |||||
|
35111C
|
35111C
35104-28083 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [05.2002 - 09.2002] ST215..4FC..GTT |
35104-28083 |
US $963.87 |
||
|
35111C
|
35111C
35105-48023 Housing, Transaxle[05.2002 - 09.2002] ST215..4FC..GTT |
35105-48023 |
US $591.14 |
||
|
35111C
|
35111C
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[05.2002 - 09.2002] ST215..4FC..GTT |
90105-06320 |
— | ||
|
35111C
|
35111C
90301-06008 Ring, O (For Transfer Oil Strainer)[05.2002 - 09.2002] ST215..4FC..GTT |
90301-06008 |
US $3.14 |
||
|
35111C
|
35111C
90301-10189 Ring, O(For Oil Cooler Tube Union)[05.2002 - 09.2002] ST215..4FC..GTT |
90301-10189 |
US $2.72 |
||
|
35111D
|
35111D
90311-62004
Seal, Oil (For Transaxle Housing)
[11.1997 - 09.2002] ST215..4FC..GTT |
90311-62004 |
— | ||
| replacement | |||||
|
35111D
|
35111D
90311-62006 Seal, Oil (For Transaxle Housing)[11.1997 - 09.2002] ST215..4FC..GTT |
90311-62006 |
from US $9.76 |
||
|
35174
|
35174
35174-21010 Separator, Transaxle Housing Oil[11.1997 - 09.2002] ST215..4FC..GTT |
35174-21010 |
US $16.16 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[11.1997 - 09.2002] ST215..4FC..GTT |
90341-18021 |
from US $2.44 |
||
|
41181G
|
41181G
90430-18008 Gasket[11.1997 - 09.2002] ST215..4FC..GTT |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[11.1997 - 09.2002] ST215..4FC..GTT |
90430-T0021 |
— | ||
|
41211
|
41211
41211-21040 Pinion, Differential Drive[11.1997 - 09.2002] ST215..4FC..GTT |
41211-21040 |
US $71.93 |
||
|
41221
|
41221
41221-21060 Gear, Front Differential Ring[11.1997 - 09.2002] ST215..4FC..GTT |
41221-21060 |
US $205.30 |
||
| replacement | |||||
|
41221
|
41221
41211-28H01 Gear, Front Differential Ring[11.1997 - 09.2002] ST215..4FC..GTT |
41211-28H01 |
US $1,041.04 |
||
|
41301P
|
41301P
90105-12302 Screw(For Front Differential Case)[11.1997 - 09.2002] ST215..4FC..GTT |
90105-12302 |
US $1.93 |
||
|
41311C
|
41311C
90564-79001
Shim (For Front Differential Case Rear)
[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．００，マーク ０ |
90564-79001 |
— | ||
|
41311C
|
41311C
90564-79002 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．０５，マーク １ |
90564-79002 |
US $2.77 |
||
|
41311C
|
41311C
90564-79003 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．１０，マーク ２ |
90564-79003 |
US $2.77 |
||
|
41311C
|
41311C
90564-79004 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．１５，マーク ３ |
90564-79004 |
US $2.77 |
||
|
41311C
|
41311C
90564-79005 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．２０，マーク ４ |
90564-79005 |
US $2.77 |
||
|
41311C
|
41311C
90564-79006 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．２５，マーク ５ |
90564-79006 |
US $2.77 |
||
|
41311C
|
41311C
90564-79007 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．３０，マーク ６ |
90564-79007 |
US $2.77 |
||
|
41311C
|
41311C
90564-79008 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．３５，マーク ７ |
90564-79008 |
US $2.77 |
||
|
41311C
|
41311C
90564-79009 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．４０，マーク ８ |
90564-79009 |
US $2.77 |
||
|
41311C
|
41311C
90564-79010 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．４５，マーク ９ |
90564-79010 |
US $2.77 |
||
|
41311C
|
41311C
90564-79011 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．５０，マーク Ａ |
90564-79011 |
US $2.77 |
||
|
41311C
|
41311C
90564-79012 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．５５，マーク Ｂ |
90564-79012 |
US $2.77 |
||
|
41311C
|
41311C
90564-79013 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．６０，マーク Ｃ |
90564-79013 |
US $2.77 |
||
|
41311C
|
41311C
90564-79014 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．６５，マーク Ｄ |
90564-79014 |
US $2.77 |
||
|
41311C
|
41311C
90564-79015 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．７０，マーク Ｅ |
90564-79015 |
US $2.77 |
||
|
41311C
|
41311C
90564-79016 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．７５，マーク Ｆ |
90564-79016 |
US $2.77 |
||
|
41311C
|
41311C
90564-79017 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．８０，マーク Ｇ |
90564-79017 |
US $2.77 |
||
|
41311C
|
41311C
90564-79018 Shim (For Front Differential Case Rear)[11.1997 - 09.2002] ST215..4FC..GTT 厚さ＝２．８５，マーク Ｈ |
90564-79018 |
US $2.77 |
||
|
41311E
|
41311E
90366-62004 Bearing, Tapered Roller (For Front Differential Case Front)[11.1997 - 09.2002] ST215..4FC..GTT |
90366-62004 |
from US $47.17 |
||
|
41311F
|
41311F
90366-50057
Bearing, Tapered Roller (For Front Differential Case Front)
[11.1997 - 09.2002] ST215..4FC..GTT |
90366-50057 |
— | ||
| replacements | |||||
|
41311F
|
41311F
04419-33010 BEARING KIT, FR[11.1997 - 09.2002] ST215..4FC..GTT |
04419-33010 |
US $100.46 |
||
|
41311F
|
41311F
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[11.1997 - 09.2002] ST215..4FC..GTT |
90366-50106 |
from US $26.38 |
||
|
9010506030
|
9010506030
90105-06030 New Genuine Part |
90105-06030 |
US $1.60 |
||
| replacement | |||||
|
9010506030
|
9010506030
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.12 |
||
