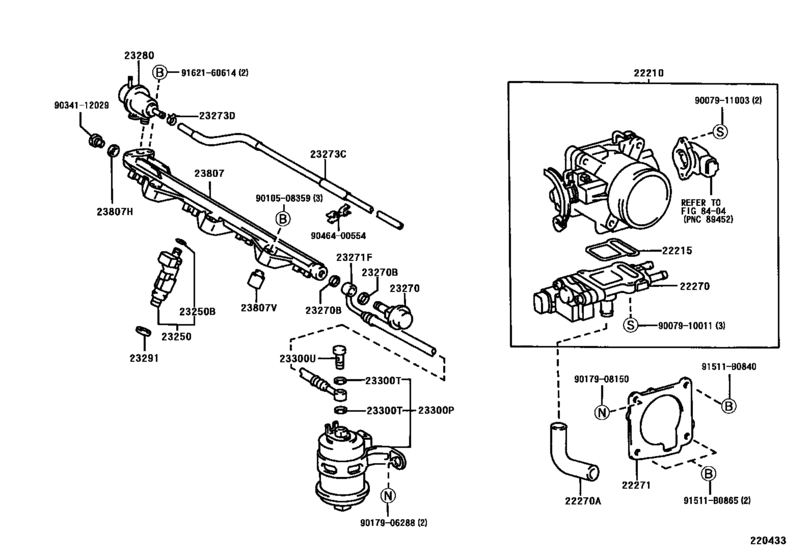

Fuel Injection System ([08.1997 - ] (9708- )3SGTE) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-7A700 Body Assy, Throttle[08.1997 -] 3SGTE..ST215 |
22210-7A700 |
US $1,218.67 |
||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[08.1997 -] 3SG#..ST21# |
22215-7A680 |
from US $3.45 |
||
|
22270
|
22270
22270-74380
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1997 -] 3SGTE..ST215 |
22270-74380 |
— | ||
|
22270A
|
22270A
17341-88580
Hose, Air, No.1(For Idle Speed Control Valve)
[08.1997 -] 3SGTE..ST215 |
17341-88580 |
— | ||
|
22271
|
22271
22271-88580 Gasket, Throttle Body[08.1997 -] 3SGTE..ST215 |
22271-88580 |
US $10.08 |
||
|
23250
|
23250
23209-74200
Injector Assy, Fuel
[08.1997 -] 3SGTE..ST215 |
23209-74200 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1997 - 11.1998] 7AFE..AT211; 3SFE,3SG#..ST21# |
90301-07001 |
from US $2.93 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[12.1998 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
90301-07024 |
US $3.04 |
||
|
23270
|
23270
23270-70060
Damper Assy, Fuel Pressure Pulsation
[08.1997 -] 3SG#..ST21# |
23270-70060 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[08.1997 -] 3SG#..ST21# |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1997 -] 3SG#..ST21# |
23232-41081 |
from US $1.40 |
||
|
23271F
|
23271F
23271-88580
Hose, Fuel
[08.1997 -] 3SGTE..ST215 |
23271-88580 |
— | ||
|
23273C
|
23273C
23273-88580 Hose, Fuel, No.2[08.1997 -] 3SGTE..ST215 |
23273-88580 |
US $25.79 |
||
|
23273D
|
23273D
90467-11065 Clip(For Fuel Hose No.2)[08.1997 -] 3SGTE..ST215 |
90467-11065 |
US $2.56 |
||
|
23280
|
23280
23280-74210
Regulator Assy, Fuel Pressure
[08.1997 -] 3SGTE..ST215 |
23280-74210 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-19465 Filter, Fuel(For Efi)[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
23300-19465 |
US $103.38 |
||
|
23300T
|
23300T
90430-12026 Gasket[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1997 -] 7AFE..AT211; 3SFE,3SG#..ST21# |
96341-11200 |
from US $2.72 |
||
|
23807
|
23807
23814-88580
Pipe Sub-Assy, Fuel Delivery
[08.1997 -] 3SGTE..ST215 |
23814-88580 |
— | ||
|
23807H
|
23807H
90430-12026 Gasket[08.1997 -] 3SGTE..ST215 |
90430-12026 |
from US $0.88 |
||
|
23807V
|
23807V
90561-08036 Spacer, No.1(For Delivery Pipe)[08.1997 -] 3SGTE..ST215 |
90561-08036 |
from US $1.25 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
91511B0865
|
91511B0865
91511-B0865 New Genuine Part |
91511-B0865 |
US $3.20 |
||
|
9007910011
|
9007910011
90079-10011 New Genuine Part |
90079-10011 |
US $1.76 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9010508359
|
9010508359
90105-08359 New Genuine Part |
90105-08359 |
US $1.46 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
US $1.12 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.07 |
||
|
9034112029
|
9034112029
90341-12029 New Genuine Part |
90341-12029 |
US $2.85 |
||
|
9046400554
|
9046400554
90464-00554 New Genuine Part |
90464-00554 |
US $3.06 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
