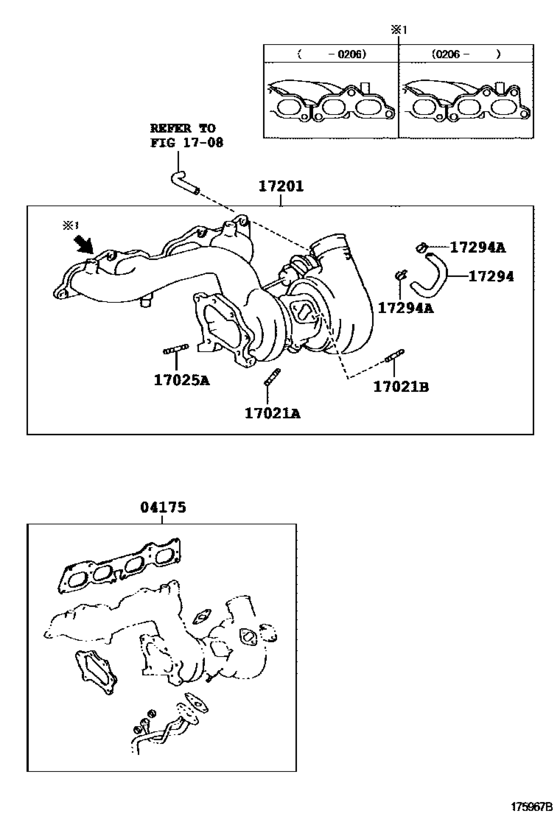

Manifold ([08.1997 - ] (9708- )3SGTE) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-74051
Gasket Kit, Turbocharger
[08.1997 - 06.2002] 3SGTE..ST215 |
04175-74051 |
— | ||
| replacement | |||||
|
04175
|
04175
04175-74052 Gasket Kit, Turbocharger[08.1997 - 06.2002] 3SGTE..ST215 |
04175-74052 |
US $103.08 |
||
|
04175
|
04175
04175-74052 Gasket Kit, Turbocharger[06.2002 - 09.2002] 3SGTE..ST215 |
04175-74052 |
US $103.08 |
||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[08.1997 - 09.2002] 3SGTE..ST215 |
90116-08158 |
from US $1.76 |
||
|
17021B
|
17021B
90116-06048 Bolt, Stud(For Oil Pan)[08.1997 - 09.2002] 3SGTE..ST215 |
90116-06048 |
from US $0.72 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[08.1997 - 09.2002] 3SGTE..ST215 |
90116-10125 |
from US $1.48 |
||
|
17201
|
17201
17201-74090
Turbocharger Sub-Assy
[08.1997 - 06.2002] 3SGTE..ST215 |
17201-74090 |
— | ||
| replacements | |||||
|
17201
|
17201
17173-88581 Gasket, Exhaust Manifold To Head[08.1997 - 06.2002] 3SGTE..ST215 |
17173-88581 |
US $71.74 |
||
|
17201
|
17201
17201-74091
Turbocharger Sub-Assy
[08.1997 - 06.2002] 3SGTE..ST215 |
17201-74091 |
— | ||
|
17201
|
17201
17271-88581
Insulator, Turbo, No.1
[08.1997 - 06.2002] 3SGTE..ST215 |
17271-88581 |
— | ||
|
17201
|
17201
90126-10032 Bolt, Stud(For Exhaust Manifold, Rh)used for exhaust manifold [08.1997 - 06.2002] 3SGTE..ST215 |
90126-10032 |
US $3.68 |
||
|
17201
|
17201
90179-10128 NUT[08.1997 - 06.2002] 3SGTE..ST215 |
90179-10128 |
from US $1.54 |
||
|
17201
|
17201
90387-10171 Collar(For Exhaust Manifold)[08.1997 - 06.2002] 3SGTE..ST215 |
90387-10171 |
US $3.20 |
||
|
17201
|
17201
17201-74091
Turbocharger Sub-Assy
[06.2002 - 09.2002] 3SGTE..ST215 |
17201-74091 |
— | ||
|
17294
|
17294
17294-28010 Hose, Actuator[08.1997 - 09.2002] 3SGTE..ST215 |
17294-28010 |
US $16.07 |
||
|
17294A
|
17294A
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[08.1997 - 09.2002] 3SGTE..ST215 |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[08.1997 - 09.2002] 3SGTE..ST215 |
96132-51100 |
from US $1.74 |
||
