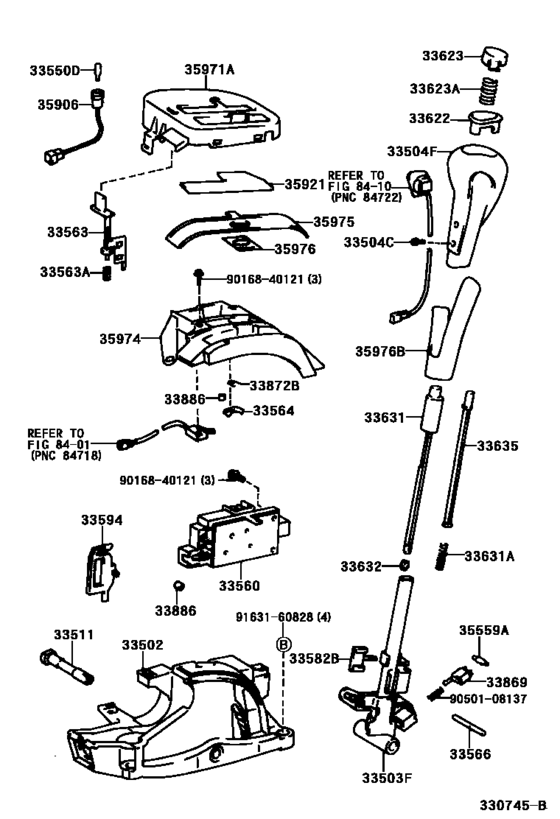

Shift Lever & Retainer ([11.1997 - ] (9711- )4FC..GTT) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- ST215
- grade
- GTT
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 11.1997
- To
- 09.2002
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33521-21010 Plate Sub-Assy, Shift Lever[11.1997 -] ST215..4FC..GTT |
33521-21010 |
US $104.83 |
||
|
33503F
|
33503F
33503-21010 Lever Sub-Assy, Shift(For Floor Shift)[11.1997 -] ST215..4FC..GTT |
33503-21010 |
US $74.26 |
||
|
33504C
|
33504C
90159-40134 Screw (For Shift Lever Knob Setting)[11.1997 -] ST215..4FC..GTT |
90159-40134 |
US $1.60 |
||
|
33504F
|
33504F
33542-21010 Knob Sub-Assy, Shift Lever[11.1997 -] ST215..4FC..GTT |
33542-21010 |
US $109.20 |
||
|
33511
|
33511
33511-16070 Shaft, Control (For Floor Shift)[08.1997 -] AT211,CT216,ST21#..4FC |
33511-16070 |
US $8.59 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[08.1997 - 12.1999] AT211,CT216,ST21#..4FC １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
33560
|
33560
33560-20021 Unit Assy, Shift Lock Control[08.1997 -] AT211,CT216,ST21#..4FC |
33560-20021 |
US $161.62 |
||
|
33563
|
33563
33563-21010 Button, Shift Lock Release[11.1997 -] ST215..4FC..GTT |
33563-21010 |
US $10.19 |
||
|
33563A
|
33563A
90501-07103 Spring, Compression (For Shift Lock Release Button)[08.1997 -] AT211,CT216,ST21#..4FC |
90501-07103 |
US $2.04 |
||
|
33564
|
33564
33564-21010 Link, Shift Lock Release, No.1[11.1997 -] ST215..4FC..GTT |
33564-21010 |
US $5.10 |
||
|
33566
|
33566
33566-21010 Pin, Shift Lever Stop[11.1997 -] ST215..4FC..GTT |
33566-21010 |
US $5.10 |
||
|
33582B
|
33582B
33582-21010 Stopper, Shift Lock Plate (For Floor Shift)[11.1997 -] ST215..4FC..GTT |
33582-21010 |
US $3.49 |
||
|
33594
|
33594
33594-20060 Plate, Shift Lock (For Floor Shift)[08.1997 -] AT211,CT216,ST21#..4FC |
33594-20060 |
US $6.84 |
||
|
33622
|
33622
35976-21030
Cover, Shift Lever Knob, No.1
[12.1999 -] ST215..4FC..GTT |
35976-21030 |
— | ||
| replacement | |||||
|
33622
|
33622
35976-21040
Cover, Shift Lever Knob, No.1
[12.1999 -] ST215..4FC..GTT |
35976-21040 |
— | ||
|
33622
|
33622
35976-21040
Cover, Shift Lever Knob, No.1
[11.1997 - 12.1999] ST215..4FC..GTT |
35976-21040 |
— | ||
|
33623
|
33623
33623-21010 Button, Shift Lever Knob[11.1997 -] ST215..4FC..GTT |
33623-21010 |
US $12.81 |
||
|
33623A
|
33623A
90501-09142 Spring, Compression (For Shift Lever Knob Button)[11.1997 -] ST215..4FC..GTT |
90501-09142 |
US $1.75 |
||
|
33631
|
33631
33631-21010 Rod, Detent[11.1997 -] ST215..4FC..GTT |
33631-21010 |
US $15.14 |
||
|
33631A
|
33631A
90501-08177 Spring, Compression (For Detent Rod)[11.1997 -] ST215..4FC..GTT |
90501-08177 |
US $1.75 |
||
|
33632
|
33632
33632-16030 Rod, Detent, No.2[11.1997 -] ST215..4FC..GTT |
33632-16030 |
US $1.89 |
||
|
33635
|
33635
33635-21020 Guide, Wire (For Shift Lever)[11.1997 -] ST215..4FC..GTT |
33635-21020 |
US $8.74 |
||
|
33869
|
33869
33869-20020 Holder, Shift Lever Detent Roller[08.1997 -] AT211,CT216,ST21#..4FC |
33869-20020 |
US $5.24 |
||
|
33872B
|
33872B
90949-03093 Spring, Torsion (For Shift Lock Release Link)[11.1997 -] ST215..4FC..GTT |
90949-03093 |
US $0.73 |
||
|
33886
|
33886
33886-20030 Stopper, Shift Lever[11.1997 -] ST215..4FC..GTT |
33886-20030 |
US $2.33 |
||
|
35559A
|
35559A
90903-61002 Roller (For Shift Lock Switch)[08.1997 -] AT211,CT216,ST21#..4FC |
90903-61002 |
US $2.04 |
||
|
35906
|
35906
35906-20090 Wire Sub-Assy, Indicator Lamp[08.1997 -] AT211,CT216,ST21#..4FC |
35906-20090 |
US $11.94 |
||
|
35921
|
35921
35921-21010 Plate, Control Position Indicator[11.1997 -] ST215..4FC..GTT |
35921-21010 |
US $43.53 |
||
|
35971A
|
35971A
35971-21010
Housing, Position Indicator, Upper
[11.1997 - 12.1999] ST215..4FC..GTT |
35971-21010 |
— | ||
|
35971A
|
35971A
35971-21030 Housing, Position Indicator, Upper[12.1999 -] ST215..4FC..GTT |
35971-21030 |
US $35.67 |
||
|
35974
|
35974
35974-21030 Housing, Position Indicator, Lower[11.1997 -] ST215..4FC..GTT |
35974-21030 |
US $53.14 |
||
|
35975
|
35975
35975-21010
Cover, Slide (For Position Indicator)
[11.1997 -] ST215..4FC..GTT |
35975-21010 |
— | ||
|
35976
|
35976
35975-21020 Cover, Slide, No.2 (For Position Indicator)[11.1997 -] ST215..4FC..GTT |
35975-21020 |
US $5.42 |
||
|
35976B
|
35976B
35976-21010 Cover, Shift Lever Knob (For Floor Shift)[11.1997 - 12.1999] ST215..4FC..GTT |
35976-21010 |
US $53.14 |
||
|
35976B
|
35976B
35976-21020 Cover, Shift Lever Knob (For Floor Shift)[12.1999 -] ST215..4FC..GTT |
35976-21020 |
US $53.87 |
||
| replacement | |||||
|
35976B
|
35976B
35976-21010 Cover, Shift Lever Knob (For Floor Shift)[12.1999 -] ST215..4FC..GTT |
35976-21010 |
US $53.14 |
||
|
9016840121
|
9016840121
90168-40121 New Genuine Part |
90168-40121 |
US $1.24 |
||
|
9050108137
|
9050108137
90501-08137 New Genuine Part |
90501-08137 |
US $0.73 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
