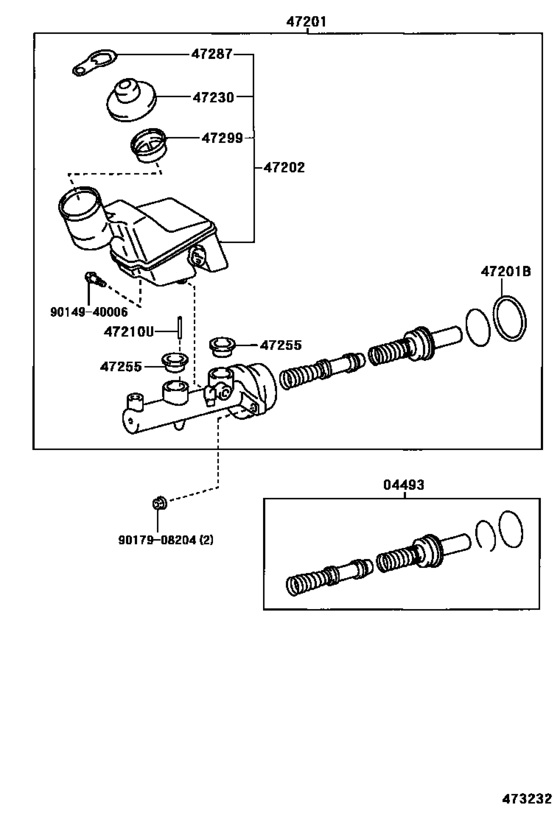

Brake Master Cylinder ([09.2002 - ] ｱﾘ(VSC) (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-21020 Cylinder Kit, Brake Master[09.2002 - 01.2005] ST246 |
04493-21020 |
US $84.45 |
||
|
04493
|
04493
04493-21030 Cylinder Kit, Brake Master[09.2002 - 01.2005] ST246 ＶＳＣ |
04493-21030 |
US $84.45 |
||
|
47201
|
47201
47201-21050 Cylinder Sub-Assy, Brake Master[09.2002 - 01.2005] ST246 |
47201-21050 |
US $390.21 |
||
|
47201
|
47201
47201-21060
Cylinder Sub-Assy, Brake Master
[09.2002 - 01.2005] ST246 ＶＳＣ |
47201-21060 |
— | ||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90029-20059 |
from US $2.24 |
||
|
47202
|
47202
47220-21020 Reservoir Sub-Assy, Brake Master Cylinder[09.2002 - 01.2005] ST246 |
47220-21020 |
US $131.04 |
||
|
47210U
|
47210U
90029-14204 Pin, Straight(For Brake Master Cylinder)[09.2002 - 01.2005] ST246 ＶＳＣ |
90029-14204 |
US $0.83 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47230-20140 |
from US $6.60 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47255-16010 |
from US $6.45 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47299-25010 |
US $5.42 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
