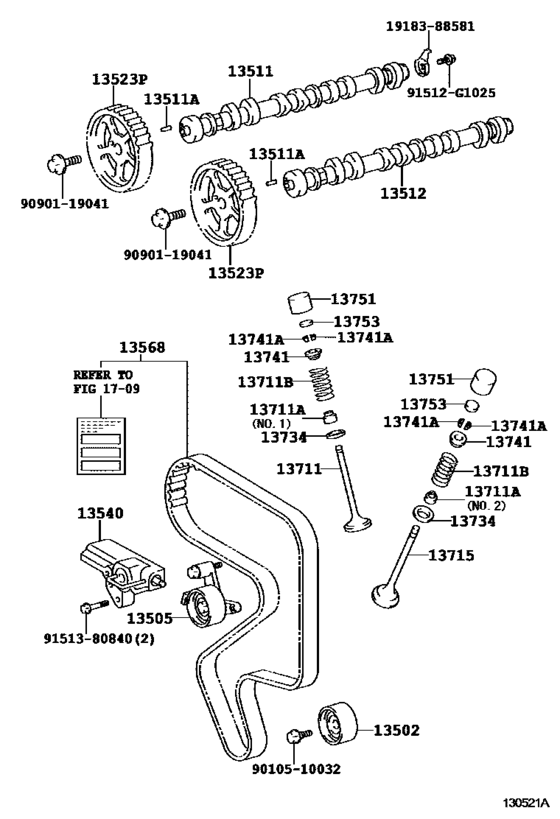

Camshaft & Valve ([09.2002 - ] (0209- )3SGTE) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13502
|
13502
13503-88560 Idler Sub-Assy, Timing Belt, No.2[09.2002 - 01.2005] 3SGTE..ST246 |
13503-88560 |
US $40.32 |
||
|
13505
|
13505
13505-88560 Idler Sub-Assy, Timing Belt, No.1[09.2002 - 01.2005] 3SGTE..ST246 |
13505-88560 |
from US $57.12 |
||
|
13511
|
13511
13501-88580 Camshaft[09.2002 - 01.2005] 3SGTE..ST246 |
13501-88580 |
US $492.13 |
||
|
13511A
|
13511A
90250-05021 Pin, Straight[09.2002 - 01.2005] 3SGTE..ST246 長さ＝１３．８，外径＝５．０ |
90250-05021 |
from US $0.68 |
||
|
13512
|
13512
13502-88480 Camshaft, No.2[09.2002 - 01.2005] 3SGTE..ST246 |
13502-88480 |
US $492.13 |
||
|
13523P
|
13523P
13523-88301 Pulley, Camshaft Timing[09.2002 - 01.2005] 3SGTE..ST246 |
13523-88301 |
US $222.70 |
||
|
13540
|
13540
13540-88480 Tensioner Assy, Chain, No.1[09.2002 - 01.2005] 3SGTE..ST246 |
13540-88480 |
from US $72.60 |
||
|
13568
|
13568
13568-79105
Belt, Timing
[09.2002 - 01.2005] 3SGTE..ST246 |
13568-79105 |
— | ||
| replacement | |||||
|
13568
|
13568
13568-79315 Belt, Timing[09.2002 - 01.2005] 3SGTE..ST246 |
13568-79315 |
from US $98.01 |
||
|
13711
|
13711
13711-88580
Valve, Intake
[09.2002 - 01.2005] 3SGTE..ST246 |
13711-88580 |
— | ||
|
13711A
|
13711A
90913-02090 Seal Or Ring, O(For Valve Stem Oil)[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．１ |
90913-02090 |
from US $4.70 |
||
|
13711A
|
13711A
90913-02104 Seal Or Ring, O(For Valve Stem Oil)[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．２ |
90913-02104 |
from US $8.06 |
||
|
13711B
|
13711B
90501-35022 Spring, Compression(For Inner)[09.2002 - 01.2005] 3SGTE..ST246 |
90501-35022 |
US $5.50 |
||
|
13715
|
13715
13715-88480 Valve, Exhaust[09.2002 - 01.2005] 3SGTE..ST246 |
13715-88480 |
US $63.48 |
||
|
13734
|
13734
13734-88460 Seat, Valve Spring[09.2002 - 01.2005] 3SGTE..ST246 |
13734-88460 |
US $4.12 |
||
|
13741
|
13741
13741-88460 Retainer, Valve Spring[09.2002 - 01.2005] 3SGTE..ST246 |
13741-88460 |
US $6.47 |
||
|
13741A
|
13741A
90913-03021 Seal Or Ring, O(For Valve Stem Oil)[09.2002 - 01.2005] 3SGTE..ST246 |
90913-03021 |
from US $1.99 |
||
|
13751
|
13751
13751-88460 Lifter, Valve[09.2002 - 01.2005] 3SGTE..ST246 |
13751-88460 |
US $22.85 |
||
|
13753
|
13753
13753-88003 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．５０ |
13753-88003 |
US $7.16 |
||
|
13753
|
13753
13753-88053 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．５５ |
13753-88053 |
US $7.16 |
||
|
13753
|
13753
13753-88103 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．６０ |
13753-88103 |
US $7.16 |
||
|
13753
|
13753
13753-88153 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．６５ |
13753-88153 |
US $7.16 |
||
|
13753
|
13753
13753-88203 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．７０ |
13753-88203 |
US $9.68 |
||
|
13753
|
13753
13753-88253 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．７５ |
13753-88253 |
US $9.68 |
||
|
13753
|
13753
13753-88303 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．８０ |
13753-88303 |
US $9.68 |
||
|
13753
|
13753
13753-88353 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．８５ |
13753-88353 |
US $9.68 |
||
|
13753
|
13753
13753-88403 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．９０ |
13753-88403 |
US $9.68 |
||
|
13753
|
13753
13753-88453 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝２．９５ |
13753-88453 |
US $6.88 |
||
|
13753
|
13753
13753-88503 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．００ |
13753-88503 |
US $9.68 |
||
|
13753
|
13753
13753-88553 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．０５ |
13753-88553 |
US $9.68 |
||
|
13753
|
13753
13753-88603 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．１０ |
13753-88603 |
US $9.68 |
||
|
13753
|
13753
13753-88653 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．１５ |
13753-88653 |
US $9.68 |
||
|
13753
|
13753
13753-88703 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．２０ |
13753-88703 |
US $6.88 |
||
|
13753
|
13753
13753-88753 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．２５ |
13753-88753 |
US $6.87 |
||
|
13753
|
13753
13753-88803
Shim, Valve Adjusting
[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．３０ |
13753-88803 |
— | ||
|
13753
|
13753
13753-88853
Shim, Valve Adjusting
[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．３５ |
13753-88853 |
— | ||
|
13753
|
13753
13753-88893 Shim, Valve Adjusting[09.2002 - 01.2005] 3SGTE..ST246 厚さ＝３．３９ |
13753-88893 |
US $6.88 |
||
|
91512G1025
|
91512G1025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
1918388581
|
1918388581
19183-88581
Rotor, Signal
|
19183-88581 |
— | ||
|
9010510032
|
9010510032
90105-10032 BOLT |
90105-10032 |
from US $1.46 |
||
|
9090119041
|
9090119041
90901-19041 BOLT WWASHER |
90901-19041 |
US $4.30 |
||
|
9151380840
|
9151380840
91513-80840 New Genuine Part |
91513-80840 |
US $2.33 |
||
