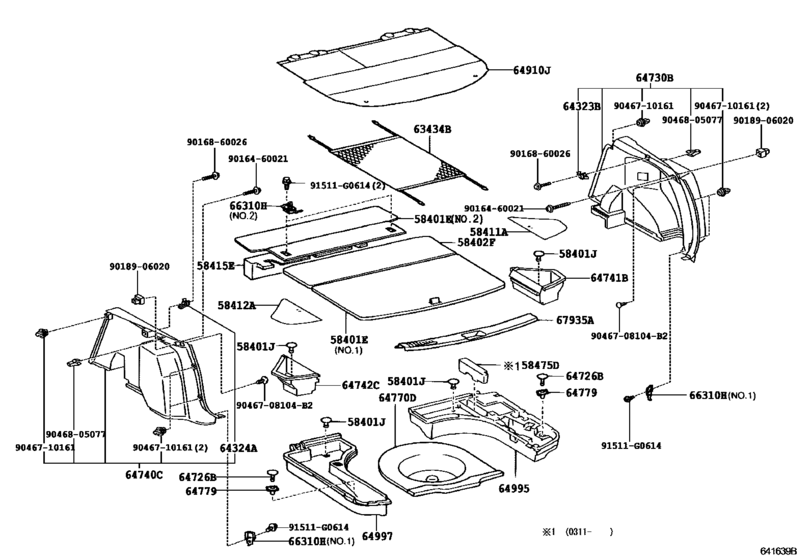

Deck Board & Deck Trim Cover ([01.2005 - ] (0501- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58401E
|
58401E
58401-21040-B0 Board Sub-Assy, Deck[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1#,ＮＯ．２ |
58401-21040-B0 |
US $182 |
||
|
58401E
|
58401E
58401-21040-C0 Board Sub-Assy, Deck[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2#,ＮＯ．２ |
58401-21040-C0 |
US $183.46 |
||
|
58401E
|
58401E
58410-21020-B0 Board Sub-Assy, Deck[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1#,ＮＯ．１ |
58410-21020-B0 |
US $406.22 |
||
|
58401E
|
58401E
58410-21020-C0 Board Sub-Assy, Deck[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2#,ＮＯ．１ |
58410-21020-C0 |
US $407.68 |
||
|
58401J
|
58401J
90467-06001-B3 Clip(For Deck Boad)[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DK.GRAY,TRIM1# |
90467-06001-B3 |
US $0.87 |
||
|
58401J
|
58401J
90467-06001-C0 Clip(For Deck Boad)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
90467-06001-C0 |
US $0.69 |
||
|
58402F
|
58402F
58402-21020-B0 Board Sub-Assy, Rear Floor, No.2[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1# |
58402-21020-B0 |
US $230.05 |
||
|
58402F
|
58402F
58402-21020-C0 Board Sub-Assy, Rear Floor, No.2[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
58402-21020-C0 |
US $230.05 |
||
|
58411A
|
58411A
58470-21010-B0 Board, Deck, No.1[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1# |
58470-21010-B0 |
US $39.17 |
||
|
58412A
|
58412A
58480-21010-B0 Board, Deck, No.2[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1# |
58480-21010-B0 |
US $39.17 |
||
|
58415E
|
58415E
58415-21020 Board, Rear Floor, No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58415-21020 |
US $64.50 |
||
|
58475D
|
58475D
58475-21010 Cover, Ecu Service[11.2003 - 01.2005] AZT24#,ST246,ZZT241 オーディオ−ナビ ＆ Ｇ−ＢＯＯＫ |
58475-21010 |
US $14.56 |
||
|
63434B
|
63434B
63434-21020
Net, Room Rack
[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ラゲージネット有り |
63434-21020 |
— | ||
|
63434B
|
63434B
63434-21021 Net, Room Rack[01.2005 -] AZT24#,ST246,ZZT241 |
63434-21021 |
US $65.52 |
||
|
64323B
|
64323B
64323-21030-B0 Clamp, Tonneau Cover[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DK.GRAY,TRIM1# |
64323-21030-B0 |
US $12.67 |
||
|
64324A
|
64324A
64323-21020-B0 Clamp, Package Tray Trim, Lh[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DK.GRAY,TRIM1# |
64323-21020-B0 |
US $12.67 |
||
|
64726B
|
64726B
64726-21010 Clip, Deck Rear Trim[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
64726-21010 |
US $3.20 |
||
|
64730B
|
64730B
64730-21060-C0 Panel Assy, Deck Trim Side, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
64730-21060-C0 |
US $313.04 |
||
|
64730B
|
64730B
64730-21080-B0 Panel Assy, Deck Trim Side, Rh[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1# |
64730-21080-B0 |
US $292.66 |
||
|
64740C
|
64740C
64740-21060-C0 Panel Assy, Deck Trim Side, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
64740-21060-C0 |
US $313.04 |
||
|
64740C
|
64740C
64740-21080-B0 Panel Assy, Deck Trim Side, Lh[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DARK GRAY,TRIM1# |
64740-21080-B0 |
US $292.66 |
||
|
64741B
|
64741B
64741-21010 Box, Deck Side Trim, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
64741-21010 |
US $80.08 |
||
|
64741B
|
64741B
64741-21020 Box, Deck Side Trim, Rh[01.2005 -] AZT24#,ST246,ZZT241 |
64741-21020 |
US $36.55 |
||
|
64742C
|
64742C
64742-21010 Box, Deck Side Trim, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
64742-21010 |
US $80.08 |
||
|
64742C
|
64742C
64742-21020 Box, Deck Side Trim, Lh[01.2005 -] AZT24#,ST246,ZZT241 |
64742-21020 |
US $36.55 |
||
|
64770D
|
64770D
64771-21040 Cover Assy, Spare Wheel[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
64771-21040 |
US $61.44 |
||
|
64779
|
64779
90467-10023 Clip(For Front Floor Mat)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90467-10023 |
US $1.25 |
||
|
64910J
|
64910J
64910-21030-C0 Cover Assy, Tonneau[09.2002 - 01.2005] AZT24#,ST246,ZZT241..GT4,Z,ZT BLACK,TRIM2#; ZZT241..X トノカバー（ＤＯＰ）,BLACK,TRIM2# |
64910-21030-C0 |
US $291.20 |
||
|
64910J
|
64910J
64910-21050-B0
Cover Assy, Tonneau
[01.2005 - 06.2007] AZT24#,ST246,ZZT241..GT4,Z,ZT DK.GRAY,TRIM1#; AZT24#,ZZT241..Z,ZT ウェルキャブ Ｐ席 回転 Ｂ（クレーン付き）,DK.GRAY,TRIM1#; ZZT241..X DK.GRAY,TRIM1# |
64910-21050-B0 |
— | ||
|
64995
|
64995
64995-21010 Box, Deck Floor, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
64995-21010 |
US $112.11 |
||
|
64995
|
64995
64995-21030 Box, Deck Floor, Rh[11.2003 - 01.2005] AZT24#,ST246,ZZT241 オーディオ−ナビ ＆ Ｇ−ＢＯＯＫ |
64995-21030 |
US $112.11 |
||
|
64997
|
64997
64997-21010 Box, Deck Floor, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
64997-21010 |
US $91.73 |
||
|
66310H
|
66310H
66310-13010 Hook Assy, Rope[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
66310-13010 |
US $13.10 |
||
|
66310H
|
66310H
66310-31010-C0 Hook Assy, Rope[01.2005 - 06.2007] AZT24#,ST246,ZZT241 BLACK,TRIM1#,ＮＯ．２ |
66310-31010-C0 |
US $13.83 |
||
|
67935A
|
67935A
67935-21010-B0 Plate, Back Door Scuff[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DK.GRAY,TRIM1# |
67935-21010-B0 |
US $82.99 |
||
|
67935A
|
67935A
67935-21010-C0 Plate, Back Door Scuff[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
67935-21010-C0 |
US $82.99 |
||
| replacement | |||||
|
67935A
|
67935A
67935-21010-B0 Plate, Back Door Scuff[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
67935-21010-B0 |
US $82.99 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
US $1.97 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.66 |
||
|
9016860026
|
9016860026
90168-60026 New Genuine Part |
90168-60026 |
US $0.87 |
||
|
9018906020
|
9018906020
90189-06020 New Genuine Part |
90189-06020 |
US $1.93 |
||
|
9046708104B2
|
9046708104B2
90467-08104-B2 Clip(For Rear Seat) |
90467-08104-B2 |
US $0.96 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.76 |
||
|
9046805077
|
9046805077
90468-05077 Clip(For Front Body Pillar Garnish) |
90468-05077 |
from US $0.86 |
||
