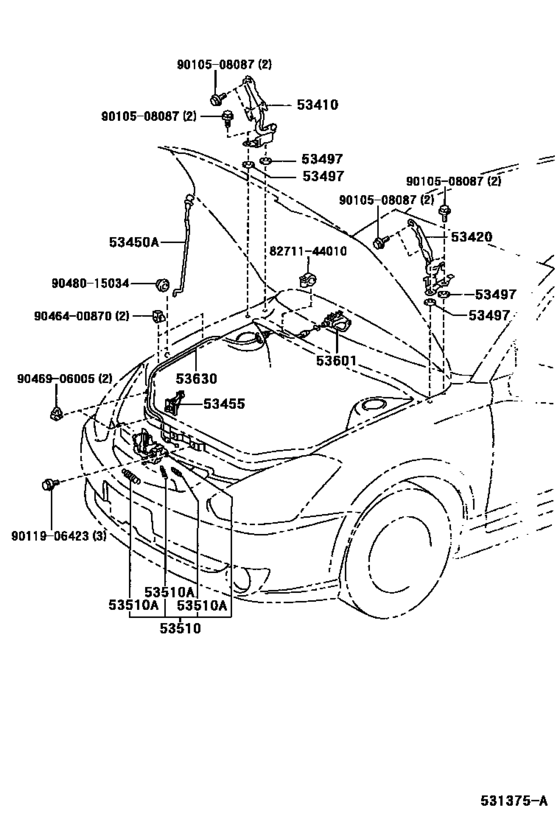

Hood Lock & Hinge ([09.2002 - ] (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-20310 Hinge Assy, Hood, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53410-20310 |
US $34.80 |
||
| replacement | |||||
|
53410
|
53410
53410-42030 Hinge Assy, Hood, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53410-42030 |
US $34.80 |
||
|
53420
|
53420
53420-20300
Hinge Assy, Hood, Lh
[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53420-20300 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-42030 Hinge Assy, Hood, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53420-42030 |
US $35.09 |
||
|
53450A
|
53450A
53440-20050
Support Assy, Hood, Lh
[09.2002 - 10.2003] AZT24#,ST246,ZZT241 |
53440-20050 |
— | ||
| replacement | |||||
|
53450A
|
53450A
53440-20051
Support Assy, Hood, Lh
[09.2002 - 10.2003] AZT24#,ST246,ZZT241 |
53440-20051 |
— | ||
|
53450A
|
53450A
53440-20051
Support Assy, Hood, Lh
[10.2003 - 01.2005] AZT24#,ST246,ZZT241 |
53440-20051 |
— | ||
|
53455
|
53455
53455-20090 Clamp, Hood Support Rod[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53455-20090 |
from US $4.82 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 厚さ＝０．５ |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-21020 Lock Assy, Hood[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53510-21020 |
US $43.24 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 線径＝０．９，コイル巻数＝２１ |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 線径＝１．２，コイル巻数＝８．５ |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 線径＝１．８，コイル巻数＝１３ |
90506-18067 |
from US $1.48 |
||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[01.2005 - 06.2007] AZT24#,ST246,ZZT241 DK.GRAY,TRIM1# |
53601-52010-B3 |
from US $26.04 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[09.2002 - 01.2005] AZT24#,ST246,ZZT241 BLACK,TRIM2# |
53601-52010-C1 |
from US $23.69 |
||
|
53630
|
53630
53630-20620 Cable Assy, Hood Lock Control[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
53630-20620 |
US $19.31 |
||
|
8271144010
|
8271144010
82711-44010
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-44010 |
— | ||
|
9010508087
|
9010508087
90105-08087 New Genuine Part |
90105-08087 |
US $2.15 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9046400870
|
9046400870
90464-00870 New Genuine Part |
90464-00870 |
US $4.80 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.33 |
||
|
9048015034
|
9048015034
90480-15034 Grommet(For Hood Support) |
90480-15034 |
from US $1.79 |
||
