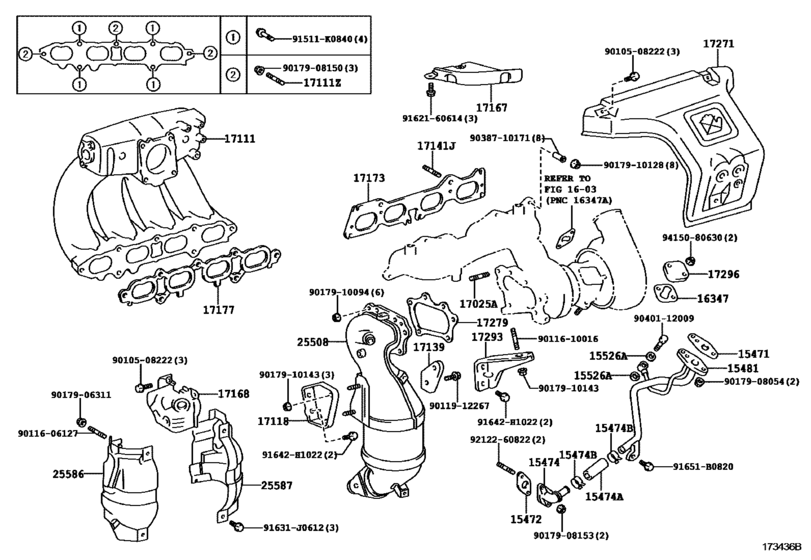

Manifold ([09.2002 - ] (0209- )3SGTE) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15471
|
15471
15471-88580 Gasket, Turbo Oil Inlet[09.2002 - 01.2005] 3SGTE..ST246 |
15471-88580 |
from US $6.73 |
||
|
15472
|
15472
15472-88480 Gasket, Turbo Oil Outlet, No.1[09.2002 - 01.2005] 3SGTE..ST246 |
15472-88480 |
US $8.60 |
||
|
15474
|
15474
15474-88480
Pipe, Turbo Oil Outlet
[09.2002 - 01.2005] 3SGTE..ST246 |
15474-88480 |
— | ||
|
15474A
|
15474A
15491-88480 Hose, Turbo Oil Outlet[09.2002 - 01.2005] 3SGTE..ST246 |
15491-88480 |
US $13.98 |
||
|
15474B
|
15474B
90467-26007 Clip(For Ventilation Hose No.2)[09.2002 - 01.2005] 3SGTE..ST246 |
90467-26007 |
US $4.84 |
||
|
15481
|
15481
15481-88580
Pipe, Turbo Oil, No.1
[09.2002 - 01.2005] 3SGTE..ST246 |
15481-88580 |
— | ||
|
15526A
|
15526A
15526-88480 Gasket, Joint(For Turbo Oil Pipe)[09.2002 - 01.2005] 3SGTE..ST246 |
15526-88480 |
US $12.01 |
||
|
16347
|
16347
16347-88380 Gasket, Water By-Pass[09.2002 - 01.2005] 3SGTE..ST246 |
16347-88380 |
US $8.06 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[09.2002 - 01.2005] 3SGTE..ST246 |
90116-10125 |
from US $1.29 |
||
|
17111
|
17111
17101-88581 Manifold, Intake[09.2002 - 01.2005] 3SGTE..ST246 |
17101-88581 |
US $907.09 |
||
|
17111Z
|
17111Z
90116-08407 Bolt, Stud(For Intake Manifold To Cylinder Head)[09.2002 - 01.2005] 3SGTE..ST246 |
90116-08407 |
US $2.04 |
||
|
17118
|
17118
17118-88580 Stay, Manifold[09.2002 - 01.2005] 3SGTE..ST246 |
17118-88580 |
US $47.17 |
||
|
17139
|
17139
17139-88580 Stay, Manifold, No.2[09.2002 - 01.2005] 3SGTE..ST246 |
17139-88580 |
US $45.72 |
||
|
17141J
|
17141J
90126-10032 Bolt, Stud(For Exhaust Manifold, Rh)used for exhaust manifold [09.2002 - 01.2005] 3SGTE..ST246 |
90126-10032 |
US $4.12 |
||
|
17167
|
17167
17167-88580
Insulator, Exhaust Manifold Heat, No.1
[09.2002 - 01.2005] 3SGTE..ST246 |
17167-88580 |
— | ||
|
17168
|
17168
17168-88580 Insulator, Exhaust Manifold Heat, No.2[09.2002 - 01.2005] 3SGTE..ST246 |
17168-88580 |
US $65.52 |
||
|
17173
|
17173
17173-88581 Gasket, Exhaust Manifold To Head[09.2002 - 01.2005] 3SGTE..ST246 |
17173-88581 |
from US $49.06 |
||
|
17177
|
17177
17177-88460 Gasket, Intake Manifold To Head, No.1[09.2002 - 01.2005] 3SGTE..ST246 |
17177-88460 |
from US $9.59 |
||
|
17271
|
17271
17271-88581
Insulator, Turbo, No.1
[09.2002 - 01.2005] 3SGTE..ST246 |
17271-88581 |
— | ||
|
17279
|
17279
17279-88580 Gasket, Turbine Outlet Elbow[09.2002 - 01.2005] 3SGTE..ST246 |
17279-88580 |
from US $15.91 |
||
|
17293
|
17293
17293-88580
Stay, Turbocharger
[09.2002 - 01.2005] 3SGTE..ST246 |
17293-88580 |
— | ||
|
17296
|
17296
17296-28010 Plate, Bearing Housing, Side[09.2002 - 01.2005] 3SGTE..ST246 |
17296-28010 |
US $10.57 |
||
|
25508
|
25508
25051-88582 Converter Sub-Assy, Manifold[09.2002 - 01.2005] 3SGTE..ST246 |
25051-88582 |
US $701.79 |
||
|
25586
|
25586
25586-88581 Insulator, Manifold Converter, No.1[09.2002 - 01.2005] 3SGTE..ST246 |
25586-88581 |
US $57.95 |
||
|
25587
|
25587
25587-88581 Insulator, Manifold Converter, No.2[09.2002 - 01.2005] 3SGTE..ST246 |
25587-88581 |
US $57.95 |
||
|
91511K0840
|
91511K0840
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $3.05 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
91642H1022
|
91642H1022
91642-H1022 BOLT WWASHER |
91642-H1022 |
US $2.51 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9010508222
|
9010508222
90105-08222 BOLT WASHER BASED |
90105-08222 |
US $2.87 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011610016
|
9011610016
90116-10016 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10016 |
US $4.80 |
||
|
9011912267
|
9011912267
90119-12267 New Genuine Part |
90119-12267 |
US $2.15 |
||
|
9017906311
|
9017906311
90179-06311 New Genuine Part |
90179-06311 |
US $1.97 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.79 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.46 |
||
|
9017910128
|
9017910128
90179-10128 NUT |
90179-10128 |
from US $1.46 |
||
|
9017910143
|
9017910143
90179-10143 Nut(For Front Suspension Support) |
90179-10143 |
US $3.58 |
||
|
9038710171
|
9038710171
90387-10171 Collar(For Exhaust Manifold) |
90387-10171 |
US $3.58 |
||
|
9040112009
|
9040112009
90401-12009 Bolt, Union, No.1 |
90401-12009 |
US $4.66 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9212260822
|
9212260822
92122-60822 Stud |
92122-60822 |
US $1.31 |
||
|
9415080630
|
9415080630
94150-80630 New Genuine Part |
94150-80630 |
US $1.08 |
||
