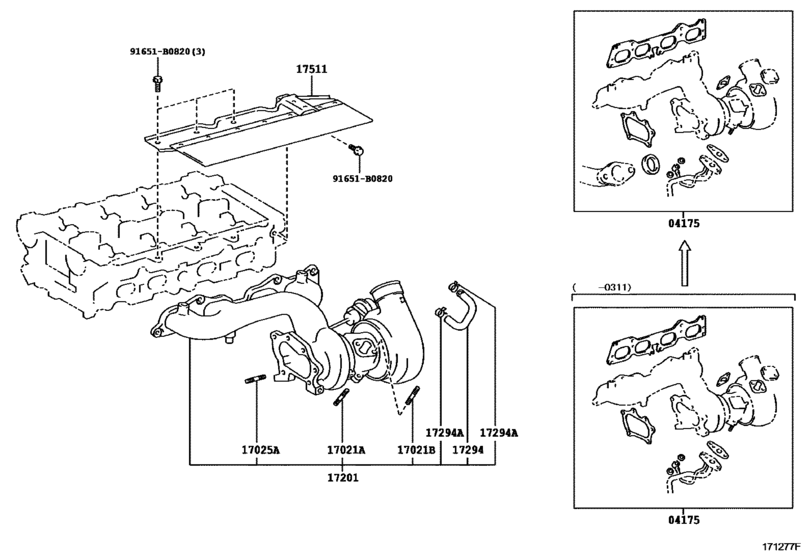

Manifold ([09.2002 - ] (0209- )3SGTE) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-74052 Gasket Kit, Turbocharger[09.2002 - 11.2003] 3SGTE..ST246 |
04175-74052 |
US $103.08 |
||
|
04175
|
04175
04175-74060
Gasket Kit, Turbocharger
[11.2003 - 01.2005] 3SGTE..ST246 |
04175-74060 |
— | ||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[09.2002 - 01.2005] 3SGTE..ST246 |
90116-08158 |
US $5.56 |
||
|
17021B
|
17021B
90116-06048 Bolt, Stud(For Oil Pan)[09.2002 - 01.2005] 3SGTE..ST246 |
90116-06048 |
from US $0.66 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[09.2002 - 01.2005] 3SGTE..ST246 |
90116-10125 |
from US $1.29 |
||
|
17201
|
17201
17201-74091
Turbocharger Sub-Assy
[09.2002 - 01.2005] 3SGTE..ST246 |
17201-74091 |
— | ||
|
17294
|
17294
17294-28010 Hose, Actuator[09.2002 - 01.2005] 3SGTE..ST246 |
17294-28010 |
US $16.07 |
||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[09.2002 - 01.2005] 3SGTE..ST246 |
96132-51100 |
from US $1.42 |
||
|
17511
|
17511
17511-74440 Insulator, Exhaust Pipe, Upper No.1[01.2005 -] 3SGTE..ST246 |
17511-74440 |
US $100.46 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
