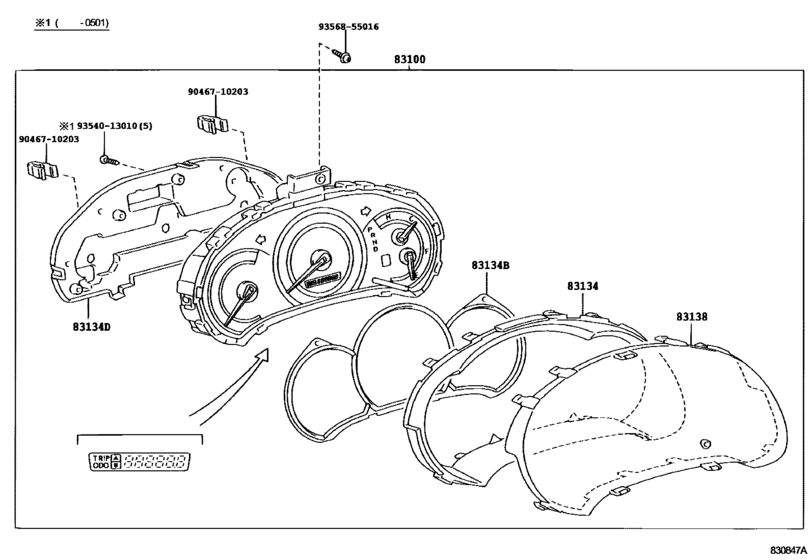

Meter ([09.2002 - ] (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-21260 Meter Assy, Combination[09.2002 - 01.2005] ST246 ＶＳＣ |
83800-21260 |
US $1,112.38 |
||
|
83100
|
83100
83800-21270 Meter Assy, Combination[09.2002 - 01.2005] ST246 |
83800-21270 |
US $1,112.38 |
||
|
83100
|
83100
83800-21330 Meter Assy, Combination[01.2005 -] ST246 |
83800-21330 |
US $1,112.38 |
||
|
83134
|
83134
83821-21290 Cover, Combination Meter, No.1[01.2005 -] AZT24#,ST246..GT4,ZT; ZZT241..Z １．８Ｌ Ｓ ＥＤＩＴＩＯＮ |
83821-21290 |
US $34.51 |
||
|
83134B
|
83134B
83821-21330 Cover, Combination Meter, No.2[01.2005 -] AZT24#,ST246,ZZT241 |
83821-21330 |
US $34.51 |
||
|
83134B
|
83134B
83822-21290 Cover, Combination Meter, No.2[09.2002 - 01.2005] AZT24#,ST246..GT4,ZT |
83822-21290 |
US $18.35 |
||
|
83134D
|
83134D
83823-21290 Cover, Combination Meter, No.3[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
83823-21290 |
US $29.12 |
||
|
83138
|
83138
83852-21290
Glass, Speedometer
[09.2002 - 01.2005] AZT24#,ST246..GT4,ZT |
83852-21290 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9354013010
|
9354013010
93540-13010 SCREW |
93540-13010 |
from US $2.20 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
