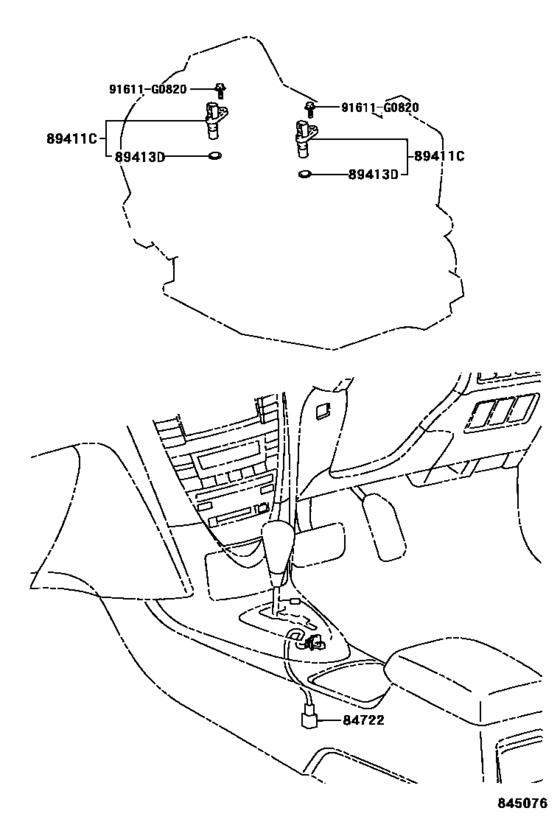

Overdrive & Electronic Controlled Transmission ([09.2002 - ] (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84722
|
84722
84722-20230 Switch, Transmission Control[09.2002 - 01.2005] ST246 |
84722-20230 |
US $29.27 |
||
|
89411C
|
89411C
89411-33010
Sensor, Speed
[09.2002 - 09.2003] ST246 ＴＯＹＯＴＡ |
89411-33010 |
— | ||
| replacement | |||||
|
89411C
|
89411C
89413-24010 Sensor, Speed[09.2002 - 09.2003] ST246 ＴＯＹＯＴＡ |
89413-24010 |
from US $86.13 |
||
|
89411C
|
89411C
89413-24010 Sensor, Speed[09.2002 - 01.2005] ST246 ＡＩＳＩＮ |
89413-24010 |
from US $86.13 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[09.2002 - 01.2005] ST246 |
90301-11008 |
from US $0.90 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
