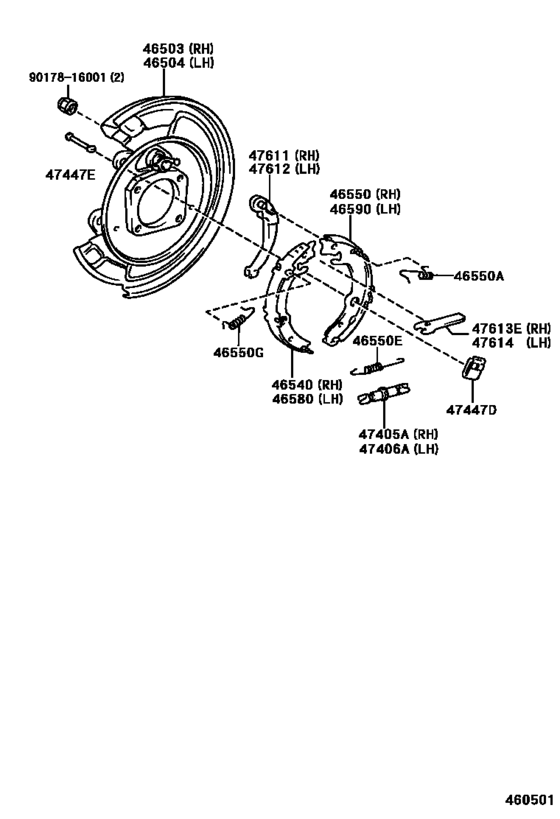

Parking Brake & Cable ([09.2002 - ] (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46503
|
46503
46503-21020 Plate Sub-Assy, Parking Brake, Rh[09.2002 - 01.2005] ST246 |
46503-21020 |
US $163.07 |
||
|
46504
|
46504
46504-21020 Plate Sub-Assy, Parking Brake, Lh[09.2002 - 01.2005] ST246 |
46504-21020 |
US $163.07 |
||
|
46540
|
46540
46540-20080 Shoe Assy, Parking Brake, Rh Or Center No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
46540-20080 |
from US $21.02 |
||
|
46550
|
46550
46540-20080 Shoe Assy, Parking Brake, Rh Or Center No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
46540-20080 |
from US $21.02 |
||
|
46550A
|
46550A
90905-06044 Spring, Tension, No.1(For Parking Brake Shoe Return)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 左側 |
90905-06044 |
from US $1.87 |
||
|
46550A
|
46550A
90905-06045 Spring, Tension, No.1(For Parking Brake Shoe Return)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 右側 |
90905-06045 |
US $1.97 |
||
|
46550E
|
46550E
90905-06046 Spring, Tension, No.1(For Parking Brake Shoe Return)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90905-06046 |
from US $1.79 |
||
|
46550G
|
46550G
90905-06043 Spring, Tension, No.3(For Parking Brake Shoe Return)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90905-06043 |
from US $1.79 |
||
|
46580
|
46580
46540-20080 Shoe Assy, Parking Brake, Rh Or Center No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
46540-20080 |
from US $21.02 |
||
|
46590
|
46590
46540-20080 Shoe Assy, Parking Brake, Rh Or Center No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
46540-20080 |
from US $21.02 |
||
|
47405A
|
47405A
47405-32010 Screw Set, Shoe Adjusting, Rh(For Parking Brake)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47405-32010 |
from US $12.07 |
||
|
47406A
|
47406A
47406-32010 Screw Set, Shoe Adjusting, Lh(For Parking Brake)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47406-32010 |
from US $12.91 |
||
|
47447D
|
47447D
47446-32010 Spring, Compression(For Parking Brake Shoe Hold Down)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47446-32010 |
from US $1.56 |
||
|
47447E
|
47447E
47447-11010 Pin, Shoe Hold Down Spring(For Parking Brake)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47447-11010 |
from US $1.27 |
||
|
47611
|
47611
47601-32030 Lever, Parking Brake Shoe, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47601-32030 |
US $11.47 |
||
|
47612
|
47612
47602-32030 Lever, Parking Brake Shoe, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47602-32030 |
US $11.47 |
||
|
47613E
|
47613E
47613-32030 Strut, Parking Brake Shoe, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47613-32030 |
US $6.45 |
||
|
47614
|
47614
47613-32030 Strut, Parking Brake Shoe, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
47613-32030 |
US $6.45 |
||
|
9017816001
|
9017816001
90178-16001 Nut |
90178-16001 |
from US $1.13 |
