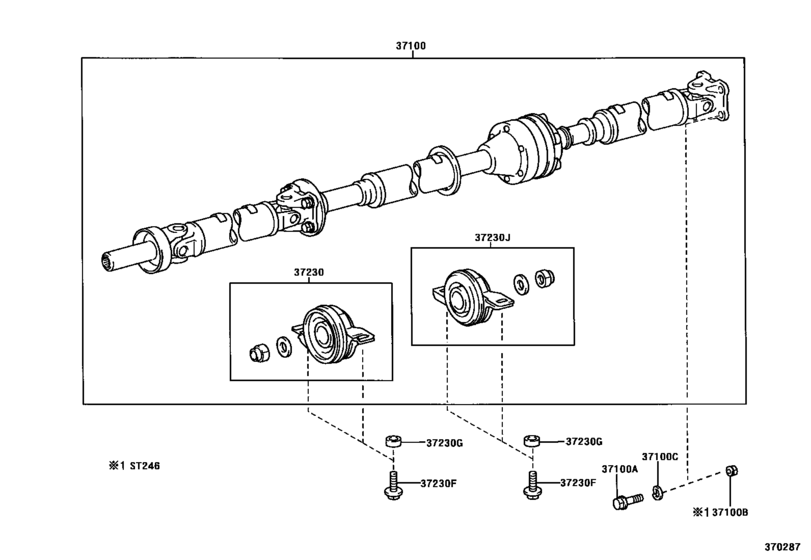

Propeller Shaft & Universal Joint ([09.2002 - ] (0209- )AZT246,ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-21120 Shaft Assy, Propeller W/center Bearing[09.2002 - 01.2005] ST246 |
37100-21120 |
US $2,009.28 |
||
|
37100A
|
37100A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.2002 - 01.2005] ST246 |
90105-10085 |
from US $1.17 |
||
|
37100B
|
37100B
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.2002 - 01.2005] ST246 |
90179-10059 |
from US $2.24 |
||
|
37100C
|
37100C
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[09.2002 - 01.2005] AZT246,ST246 |
90204-10002 |
— | ||
| replacement | |||||
|
37100C
|
37100C
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.2002 - 01.2005] AZT246,ST246 |
90560-10H00 |
from US $1.66 |
||
|
37230
|
37230
37230-39035 Bearing Assy, Center Support, No.1[09.2002 - 01.2005] AZT246,ST246 |
37230-39035 |
US $176 |
||
|
37230F
|
37230F
90119-10444 Bolt, No.1 (For Center Support Bearing)[09.2002 - 01.2005] AZT246,ST246 |
90119-10444 |
US $2.87 |
||
|
37230G
|
37230G
90201-10081 Washer, No.1 (For Center Support Bearing)[09.2002 - 01.2005] AZT246,ST246 厚さ＝４．５ |
90201-10081 |
US $3.40 |
||
|
37230G
|
37230G
90201-10083 Washer, No.1 (For Center Support Bearing)[09.2002 - 01.2005] AZT246,ST246 厚さ＝６．５ |
90201-10083 |
US $4.30 |
||
|
37230G
|
37230G
90201-10084 Washer, No.1 (For Center Support Bearing)[09.2002 - 01.2005] AZT246,ST246 厚さ＝９．０ |
90201-10084 |
US $4.02 |
||
|
37230G
|
37230G
90201-10085 Washer, No.1 (For Center Support Bearing)[09.2002 - 01.2005] ST246 厚さ＝１１．０ |
90201-10085 |
US $4.86 |
||
|
37230G
|
37230G
90201-10095 Washer, No.1 (For Center Support Bearing)[09.2002 - 01.2005] AZT246,ST246 厚さ＝３．２ |
90201-10095 |
US $3.23 |
||
|
37230J
|
37230J
37230-39045 Bearing Assy, Center Support, No.2[09.2002 - 01.2005] AZT246,ST246 |
37230-39045 |
US $136.28 |
||
