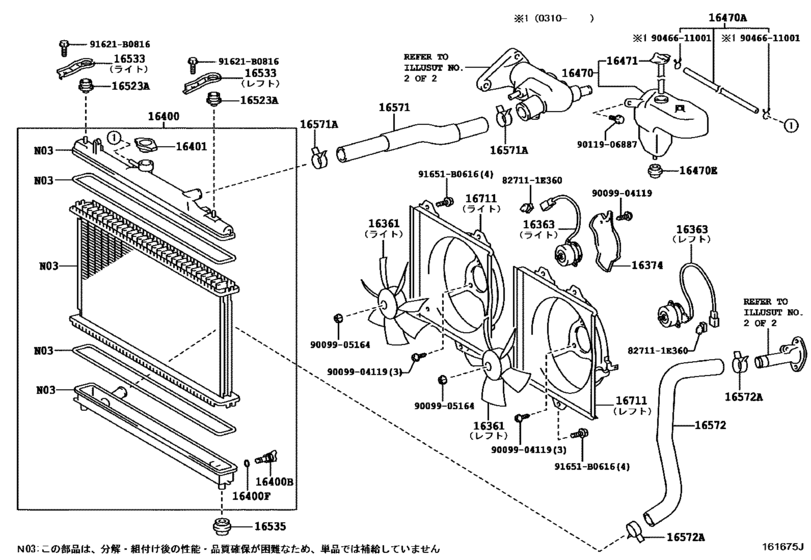

Radiator & Water Outlet ([09.2002 - ] (0209- )3SGTE) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-64060
Fan
[09.2002 - 01.2005] 3SGTE..ST246 左側 |
16361-64060 |
— | ||
|
16361
|
16361
16361-74130
Fan
[09.2002 - 01.2005] 3SGTE..ST246 右側 |
16361-74130 |
— | ||
|
16363
|
16363
16363-74380 Motor, Cooling Fan[09.2002 - 01.2005] 3SGTE..ST246 左側 |
16363-74380 |
US $378.56 |
||
|
16363
|
16363
16363-74390 Motor, Cooling Fan[09.2002 - 01.2005] 3SGTE..ST246 右側 |
16363-74390 |
US $378.56 |
||
|
16374
|
16374
16374-64110 Insulator, Cooling Fan Motor[09.2002 - 01.2005] 3SGTE..ST246 |
16374-64110 |
US $23.15 |
||
|
16400
|
16400
16400-7A670 Radiator Assy[09.2002 - 01.2005] 3SGTE..ST246 |
16400-7A670 |
US $537.26 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[09.2002 - 01.2005] 3SGTE..ST246 |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[09.2002 - 01.2005] 3SGTE..ST246 |
16492-21050 |
from US $2.16 |
||
|
16401
|
16401
16401-72090
Cap Sub-Assy, Radiator
[09.2002 - 01.2005] 3SGTE..ST246 |
16401-72090 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-20353
Cap Sub-Assy, Radiator
[09.2002 - 01.2005] 3SGTE..ST246 |
16401-20353 |
— | ||
|
16401
|
16401
16401-36030 Cap Sub-Assy, Radiator[09.2002 - 01.2005] 3SGTE..ST246 |
16401-36030 |
from US $16.13 |
||
|
16470
|
16470
16470-22060 Tank Assy, Radiator Reserve[09.2002 - 01.2005] 1AZFSE..AZT24#; 3SGTE..ST246; 1ZZFE..ZZT241 |
16470-22060 |
US $54.10 |
||
|
16470A
|
16470A
16567-22010 Hose Or Pipe(For Radiator Reserve Tank)[10.2003 - 01.2005] 3SGTE..ST246 長さ＝６００ |
16567-22010 |
US $11.79 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[09.2002 - 10.2003] 3SGTE..ST246 長さ＝６００ |
90445-12078 |
from US $6.75 |
||
|
16470E
|
16470E
90480-18010 Grommet, Radiator Reserve Tank Hose[09.2002 - 01.2005] 1AZFSE..AZT24#; 3SGTE..ST246; 1ZZFE..ZZT241 |
90480-18010 |
from US $2.15 |
||
|
16471
|
16471
16405-22040 Cap Sub-Assy, Radiator Reserve Tank[09.2002 - 01.2005] 1AZFSE..AZT24#; 3SGTE..ST246; 1ZZFE..ZZT241 |
16405-22040 |
US $8.99 |
||
|
16523A
|
16523A
16523-74010 Cushion, Sub-Radiator Support[09.2002 - 01.2005] 1AZFSE..AZT24#; 3SGTE..ST246; 1ZZFE..ZZT241 |
16523-74010 |
from US $5.23 |
||
|
16533
|
16533
16533-74330 Support, Radiator, Upper[09.2002 - 01.2005] 3SGTE..ST246 右側 |
16533-74330 |
US $33.20 |
||
|
16533
|
16533
16533-74340 Support, Radiator, Upper[09.2002 - 01.2005] 3SGTE..ST246 左側 |
16533-74340 |
US $36.69 |
||
|
16535
|
16535
16535-74230 Support, Radiator, Lower[09.2002 - 01.2005] 3SGTE..ST246 |
16535-74230 |
from US $12.19 |
||
|
16571
|
16571
16571-74540 Hose, Radiator, Inlet[09.2002 - 01.2005] 3SGTE..ST246 |
16571-74540 |
US $23.72 |
||
|
16571A
|
16571A
90467-34003
Clip(For Oil Return Hose)
[09.2002 - 01.2005] 3SGTE..ST246 |
90467-34003 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2002 - 01.2005] 3SGTE..ST246 |
90467-34004 |
from US $3.43 |
||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2005 - 03.2007] 3SGTE..ST246 |
90467-34004 |
from US $3.43 |
||
|
16571A
|
16571A
96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)[04.2007 -] 3SGTE..ST246 |
96136-43901 |
from US $4.30 |
||
|
16572
|
16572
16572-74360 Hose, Radiator, Outlet[09.2002 - 01.2005] 3SGTE..ST246 |
16572-74360 |
US $22.03 |
||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2002 - 01.2005] 3SGTE..ST246 |
90467-34004 |
from US $3.43 |
||
|
16572A
|
16572A
96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)[04.2007 -] 3SGTE..ST246 |
96136-43901 |
from US $4.30 |
||
|
16711
|
16711
16711-74740 Shroud, Fan[09.2002 - 01.2005] 3SGTE..ST246 左側 |
16711-74740 |
US $113.57 |
||
|
16711
|
16711
16711-74750 Shroud, Fan[09.2002 - 01.2005] 3SGTE..ST246 右側 |
16711-74750 |
US $99.01 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011906887
|
9011906887
90119-06887 New Genuine Part |
90119-06887 |
US $0.44 |
||
|
9046611001
|
9046611001
90466-11001 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90466-11001 |
US $0.61 |
||
