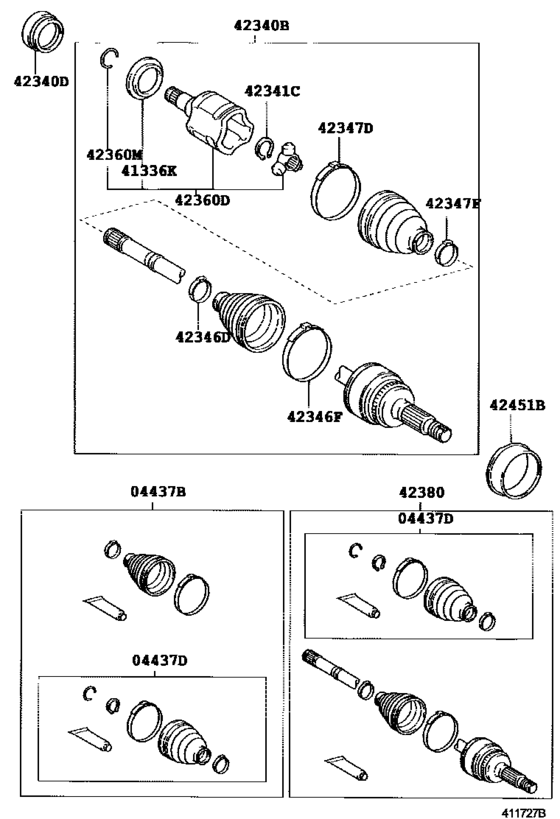

Rear Axle Shaft & Hub ([09.2002 - ] ﾚﾌﾄ (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04437B
|
04437B
04429-48030 Boot Kit, Rear Drive Shaft, Rh[01.2005 -] ST246 |
04429-48030 |
US $120.85 |
||
| replacement | |||||
|
04437B
|
04437B
04429-21030 Boot Kit, Rear Drive Shaft, In & Outboard Joint, RhREAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH [01.2005 -] ST246 |
04429-21030 |
US $100.46 |
||
|
04437B
|
04437B
04437-21040 Boot Kit, Rear Drive Shaft, Rh[09.2002 - 01.2005] ST246 |
04437-21040 |
US $145.60 |
||
| replacement | |||||
|
04437B
|
04437B
04429-21030 Boot Kit, Rear Drive Shaft, In & Outboard Joint, RhREAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH [09.2002 - 01.2005] ST246 |
04429-21030 |
US $100.46 |
||
|
04437B
|
04437B
04437-21060 Boot Kit, Rear Drive Shaft, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
04437-21060 |
US $145.60 |
||
| replacement | |||||
|
04437B
|
04437B
04437-21061 Boot Kit, Rear Drive Shaft, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
04437-21061 |
US $145.60 |
||
|
04437D
|
04437D
04437-21030 Boot Kit, Rear Drive Shaft Inboard Joint, Rh[09.2002 - 01.2005] ST246 |
04437-21030 |
US $90.27 |
||
| replacement | |||||
|
04437D
|
04437D
04439-21020 Boot Kit, Rear Drive Shaft, Inboard Joint, RhREAR DRIVE SHAFT, INBOARD JOINT, RH [09.2002 - 01.2005] ST246 |
04439-21020 |
from US $61.59 |
||
|
04437D
|
04437D
04437-21050 Boot Kit, Rear Drive Shaft Inboard Joint, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
04437-21050 |
US $90.27 |
||
| replacement | |||||
|
04437D
|
04437D
04437-21051 Boot Kit, Rear Drive Shaft Inboard Joint, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
04437-21051 |
US $90.27 |
||
|
04437D
|
04437D
04439-48030 Boot Kit, Rear Drive Shaft Inboard Joint, Rh[01.2005 -] ST246 |
04439-48030 |
US $74.26 |
||
| replacement | |||||
|
04437D
|
04437D
04439-21020 Boot Kit, Rear Drive Shaft, Inboard Joint, RhREAR DRIVE SHAFT, INBOARD JOINT, RH [01.2005 -] ST246 |
04439-21020 |
from US $61.59 |
||
|
41336K
|
41336K
41336-14010 Cover, Dust(For Rear Differential Side Gear Shaft)[09.2002 - 01.2005] ST246 |
41336-14010 |
from US $7.96 |
||
|
42340B
|
42340B
42340-21040 Shaft Assy, Rear Drive, Rh[09.2002 - 01.2005] ST246 |
42340-21040 |
US $853.22 |
||
|
42340B
|
42340B
42340-21050 Shaft Assy, Rear Drive, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
42340-21050 |
US $853.22 |
||
|
42340D
|
42340D
90311-35032 Seal, Oil (For Differential Side Gear Shaft)[09.2002 - 01.2005] ST246 |
90311-35032 |
from US $8.42 |
||
|
42341C
|
42341C
43425-21010 Ring, Snap (For Rear Drive Shaft Rh)[09.2002 - 01.2005] ST246 |
43425-21010 |
US $0.58 |
||
|
42346D
|
42346D
42345-21040 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 01.2005] ST246; ST246 スポーツＡＢＳ |
42345-21040 |
US $3.03 |
||
|
42346F
|
42346F
42345-21030 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 01.2005] ST246 |
42345-21030 |
US $5.82 |
||
|
42347D
|
42347D
42345-21010 Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)[09.2002 - 01.2005] ST246; ST246 スポーツＡＢＳ |
42345-21010 |
US $3.20 |
||
|
42347F
|
42347F
42345-21020 Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)[09.2002 - 01.2005] ST246 |
42345-21020 |
US $2.62 |
||
|
42360D
|
42360D
42360-21010 Joint Assy, Rear Drive Shaft Inboard, Rh[09.2002 - 01.2005] ST246 |
42360-21010 |
US $164.53 |
||
|
42360D
|
42360D
42360-21020 Joint Assy, Rear Drive Shaft Inboard, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
42360-21020 |
US $240.24 |
||
|
42360M
|
42360M
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[09.2002 - 01.2005] AZT246,ST246 |
90521-26004 |
from US $1.79 |
||
|
42360M
|
42360M
90521-28004 Ring, Shaft Snap (For Rear Differential Side Gear Shaft)[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
90521-28004 |
US $1.97 |
||
|
42380
|
42380
42370-29455 Shaft Assy, Rear Drive Outboard Joint, Rh[09.2002 - 01.2005] ST246 |
42370-29455 |
US $698.88 |
||
| replacement | |||||
|
42380
|
42380
42370-29456 Shaft Assy, Rear Drive Outboard Joint, Rh[09.2002 - 01.2005] ST246 |
42370-29456 |
US $698.88 |
||
|
42380
|
42380
42370-29465 Shaft Assy, Rear Drive Outboard Joint, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
42370-29465 |
US $698.88 |
||
| replacement | |||||
|
42380
|
42380
42370-29466 Shaft Assy, Rear Drive Outboard Joint, Rh[09.2002 - 01.2005] ST246 スポーツＡＢＳ |
42370-29466 |
US $698.88 |
||
|
42451B
|
42451B
42451-21010 Deflector, Rear Wheel Bearing Dust, No.1 Rh[09.2002 - 01.2005] ST246 |
42451-21010 |
US $9.32 |
||
