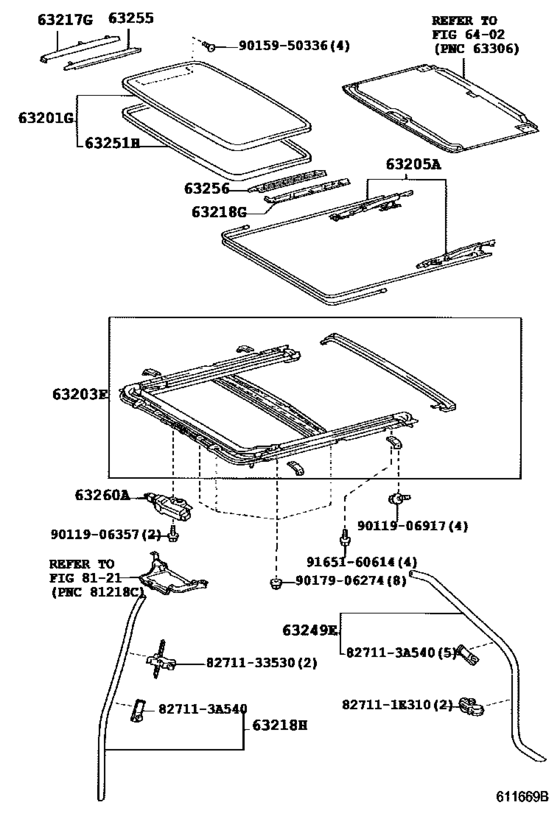

Roof Panel & Back Window Glass ([09.2002 - ] ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201G
|
63201G
63201-63010
Glass Sub-Assy, Sliding Roof
[09.2002 - 03.2003] AZT24#,ST246,ZZT241 ＊ＴＥＭ，厚さ＝４．０，グレー,ムーンルーフ−有り |
63201-63010 |
— | ||
| replacement | |||||
|
63201G
|
63201G
63201-63011
Glass Sub-Assy, Sliding Roof
[09.2002 - 03.2003] AZT24#,ST246,ZZT241 ＊ＴＥＭ，厚さ＝４．０，グレー,ムーンルーフ−有り |
63201-63011 |
— | ||
|
63201G
|
63201G
63201-63011
Glass Sub-Assy, Sliding Roof
[03.2003 - 01.2005] AZT24#,ST246,ZZT241 ＊ＴＥＭ，厚さ＝４．０，グレー,ムーンルーフ−有り |
63201-63011 |
— | ||
|
63203F
|
63203F
63203-21020
Housing Sub-Assy, Sliding Roof
[09.2002 - 02.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63203-21020 |
— | ||
|
63205A
|
63205A
63205-21020 Cable Sub-Assy, Sliding Roof Drive[09.2002 - 07.2003] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63205-21020 |
US $425.15 |
||
| replacement | |||||
|
63205A
|
63205A
63205-48010 Cable Sub-Assy, Sliding Roof Drive[09.2002 - 07.2003] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63205-48010 |
from US $383.29 |
||
|
63205A
|
63205A
63205-48010 Cable Sub-Assy, Sliding Roof Drive[03.2005 -] AZT24#,ST246,ZZT241..GT4,Z,ZT ムーンルーフ−有り |
63205-48010 |
from US $383.29 |
||
|
63205A
|
63205A
63205-63010 Cable Sub-Assy, Sliding Roof Drive[07.2003 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63205-63010 |
US $425.15 |
||
| replacement | |||||
|
63205A
|
63205A
63205-48010 Cable Sub-Assy, Sliding Roof Drive[07.2003 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63205-48010 |
from US $383.29 |
||
|
63217G
|
63217G
63217-63010 Garnish, Sliding Roof Side, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63217-63010 |
US $29.99 |
||
|
63218G
|
63218G
63218-63010 Garnish, Sliding Roof Side, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63218-63010 |
US $29.99 |
||
|
63218H
|
63218H
63249-21100 Hose, Sliding Roof Drain[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63249-21100 |
US $21.84 |
||
|
63249E
|
63249E
63249-21110 Hose, Sliding Roof Drain[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63249-21110 |
US $24.17 |
||
|
63251H
|
63251H
63251-63010 Weatherstrip, Sliding Roof[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63251-63010 |
from US $53.14 |
||
|
63255
|
63255
63255-63010 Cover, Sliding Roof Guide Rail, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63255-63010 |
US $20.68 |
||
|
63256
|
63256
63256-63010 Cover, Sliding Roof Guide Rail, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63256-63010 |
US $20.68 |
||
|
63260A
|
63260A
63260-63010 Gear Sub-Assy, Sliding Roof Drive[09.2002 - 02.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り |
63260-63010 |
US $634.82 |
||
|
827111E310
|
827111E310
82711-1E310 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E310 |
US $8.15 |
||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
from US $0.98 |
||
|
8271133530
|
8271133530
82711-33530 Wire, Fuse To Fuse(for Combustion Heater) |
82711-33530 |
US $3.06 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011906917
|
9011906917
90119-06917 New Genuine Part |
90119-06917 |
US $2.48 |
||
|
9015950336
|
9015950336
90159-50336 SCREW WWASHER |
90159-50336 |
from US $0.66 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
