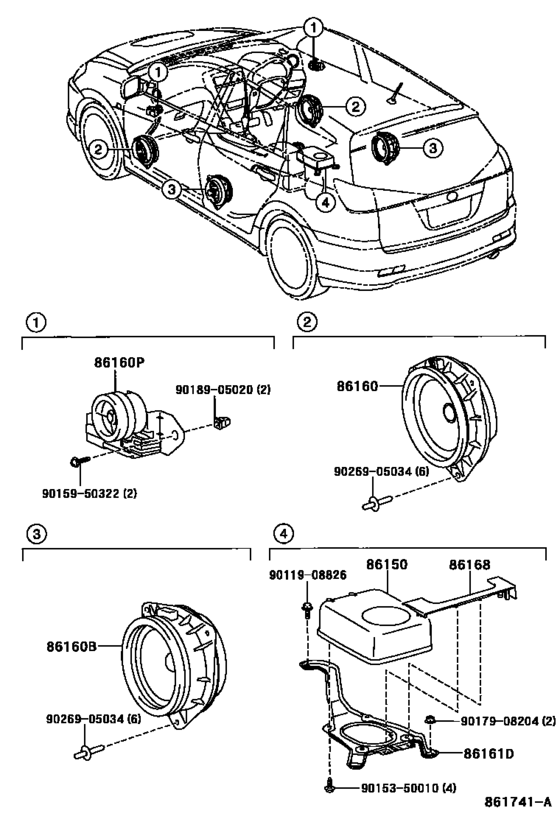

Speaker ([09.2002 - ] (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86150
|
86150
86150-21010 Speaker Assy, W/box, No.1[09.2002 - 01.2005] AZT24#,ST246..GT4,ZT |
86150-21010 |
US $413.50 |
||
|
86160
|
86160
86160-2B560 Speaker Assy, Front No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
86160-2B560 |
US $104.83 |
||
|
86160
|
86160
86160-2B580 Speaker Assy, Front No.1[01.2005 -] AZT24#,ST246,ZZT241 |
86160-2B580 |
US $154.16 |
||
|
86160B
|
86160B
86160-2B570 Speaker Assy, Rear[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
86160-2B570 |
US $126.67 |
||
|
86160B
|
86160B
86160-52220 Speaker Assy, Rear[01.2005 -] AZT24#,ST246,ZZT241 |
86160-52220 |
US $147.60 |
||
|
86160P
|
86160P
86160-21100 Speaker Assy, Front No.2[09.2002 - 01.2005] AZT24#,ST246..GT4,ZT 右側 |
86160-21100 |
US $77.17 |
||
|
86160P
|
86160P
86160-21110 Speaker Assy, Front No.2[09.2002 - 01.2005] AZT24#,ST246..GT4,ZT 左側 |
86160-21110 |
US $77.17 |
||
|
86160P
|
86160P
86160-21140 Speaker Assy, Front No.2[01.2005 -] AZT24#,ST246..GT4,ZT 右側; AZT24#,ZZT241..X,Z オーディオ−ナビ ＆ Ｇ−ＢＯＯＫ,右側 |
86160-21140 |
US $104.83 |
||
|
86160P
|
86160P
86160-21150 Speaker Assy, Front No.2[01.2005 -] AZT24#,ST246..GT4,ZT 左側; AZT24#,ZZT241..X,Z オーディオ−ナビ ＆ Ｇ−ＢＯＯＫ,左側 |
86160-21150 |
US $104.83 |
||
|
86161D
|
86161D
86161-21010 Bracket, Speaker Mounting, No.1[09.2002 - 11.2003] AZT24#,ST246..GT4,ZT; AZT24#,ZZT241..X,Z オーディオ−ナビ／ＴＶ／ＡＭ／ＦＭ／ＭＤ／ＣＤチェンジャー ７スピーカ |
86161-21010 |
US $39.17 |
||
| replacement | |||||
|
86161D
|
86161D
86161-21011 Bracket, Speaker Mounting, No.1[09.2002 - 11.2003] AZT24#,ST246..GT4,ZT; AZT24#,ZZT241..X,Z オーディオ−ナビ／ＴＶ／ＡＭ／ＦＭ／ＭＤ／ＣＤチェンジャー ７スピーカ |
86161-21011 |
US $39.17 |
||
|
86161D
|
86161D
86161-21011 Bracket, Speaker Mounting, No.1[11.2003 - 01.2005] AZT24#,ST246..GT4,ZT; AZT24#,ZZT241..X,Z オーディオ−ナビ ＆ Ｇ−ＢＯＯＫ |
86161-21011 |
US $39.17 |
||
|
86168
|
86168
86168-21010 Cover, Speaker Mounting[09.2002 - 01.2005] AZT24#,ST246..GT4,ZT |
86168-21010 |
US $13.98 |
||
|
9011908826
|
9011908826
90119-08826 BOLT |
90119-08826 |
US $1.31 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9018905020
|
9018905020
90189-05020 New Genuine Part |
90189-05020 |
US $1.93 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
||
