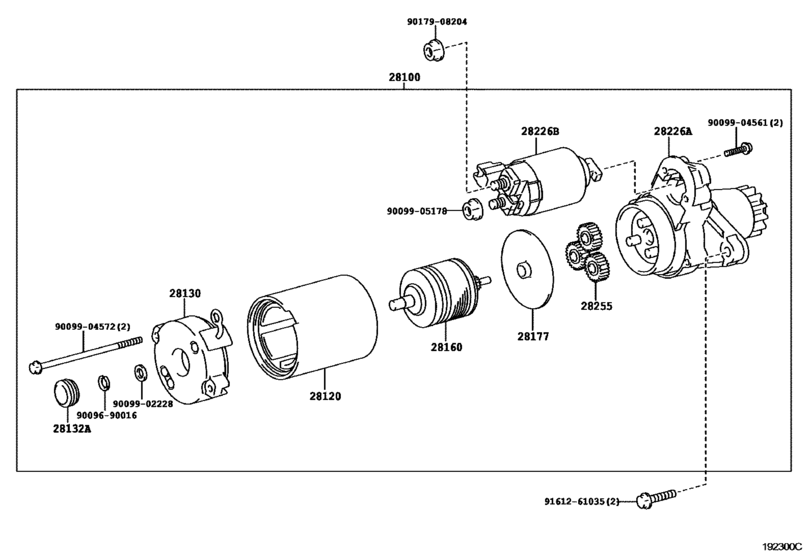

Starter ([09.2002 - ] 12V 1.3KW,1.6KW (0209- )1AZFSE,3SGTE) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-28041
Starter Assy
[09.2002 - 01.2005] 3SGTE..ST246 １２Ｖ １．６ＫＷ |
28100-28041 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-28042 Starter Assy[09.2002 - 01.2005] 3SGTE..ST246 １２Ｖ １．６ＫＷ |
28100-28042 |
from US $535 |
||
|
28120
|
28120
28120-28040
Yoke Assy, Starter
[09.2002 - 01.2005] 3SGTE..ST246 |
28120-28040 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[09.2002 - 01.2005] 3SGTE..ST246 |
28120-28060 |
— | ||
|
28130
|
28130
28130-28040 Frame Assy, Starter Commutator End[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28130-28040 |
from US $14.04 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28132-28040 |
from US $1.75 |
||
|
28160
|
28160
28160-28040 Armature Assy, Starter[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28160-28040 |
from US $125.35 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28177-28040 |
US $4.19 |
||
|
28226A
|
28226A
28226-28041 Starter Kit, Battery Terminal[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28226-28041 |
US $204.11 |
||
|
28226B
|
28226B
28226-28051 Starter Kit, Repair Service[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28226-28051 |
from US $65.40 |
||
|
28255
|
28255
28255-28040 Gear, Planet[09.2002 - 01.2005] 1AZFSE,3SGTE..AZT24#,ST246 |
28255-28040 |
from US $3.32 |
||
|
9009690016
|
9009690016
90096-90016
Ring, Snap(For Venturi Throttle Valve Shaft)
|
90096-90016 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
