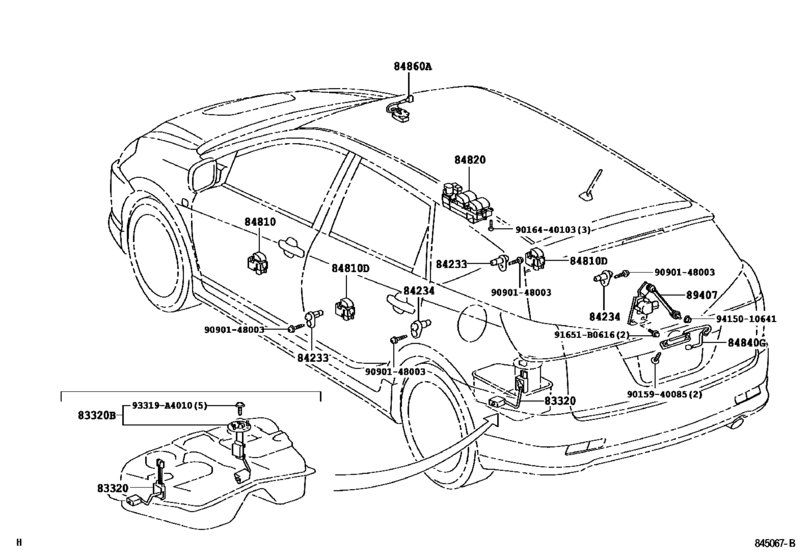

Switch & Relay & Computer ([09.2002 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-21150 Gage Assy, Fuel Sender[09.2002 - 01.2005] ST246 |
83320-21150 |
US $56.78 |
||
|
83320B
|
83320B
83320-80384 Gage Assy, Fuel Sender[09.2002 - 01.2005] AZT246,ST246 |
83320-80384 |
US $43.29 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
84231-53010 |
from US $11.83 |
||
|
84810
|
84810
84030-21010 Switch Assy, Power Window Regulator[01.2005 -] AZT24#,ST246,ZZT241 |
84030-21010 |
US $165.98 |
||
|
84810D
|
84810D
84030-21010 Switch Assy, Power Window Regulator[01.2005 -] AZT24#,ST246,ZZT241 |
84030-21010 |
US $165.98 |
||
|
84820
|
84820
84040-21011 Master Switch Assy, Power Window Regulator[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
84040-21011 |
US $355.26 |
||
|
84840G
|
84840G
84840-21010 Switch Assy, Luggage Compartment Door Opening[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
84840-21010 |
from US $56.84 |
||
|
84860A
|
84860A
84860-21020-B0 Switch Assy, Sliding Roof[09.2002 - 01.2005] AZT24#,ST246,ZZT241 ムーンルーフ−有り,LT.GRAY,TRIM2# |
84860-21020-B0 |
US $53.87 |
||
|
89407
|
89407
89407-21020 Sensor Sub-Assy, Height Control, Rear Rh[01.2005 -] AZT24#,ST246..GT4,ZT; AZT24#,ZZT241..Z ヘッドランプ−ディスチャージ |
89407-21020 |
US $562.02 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.68 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.72 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
