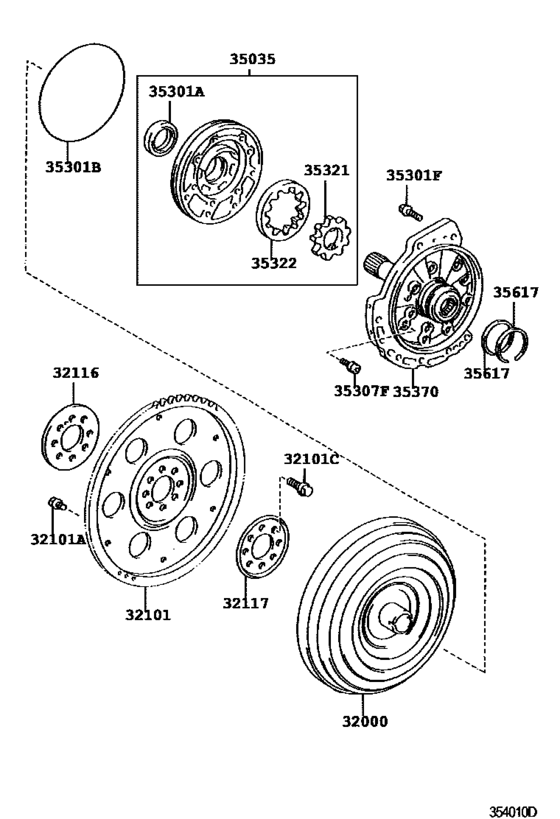

Torque Converter, Front Oil Pump & Chain (Atm) ([09.2002 - ] U140F (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-21060 Converter Assy, Torque[09.2002 - 01.2005] ST246 |
32000-21060 |
US $1,485.12 |
||
|
32101
|
32101
32101-21020 Gear Sub-Assy, Drive Plate & Ring[09.2002 - 01.2005] ST246 |
32101-21020 |
US $288.29 |
||
|
32101A
|
32101A
90109-09001 Bolt(For Drive Plate & Torque Converter Setting)[09.2002 - 01.2005] AZT24#,ST246 ＊９−１．２５ＰＸ１２．４−７．３,グリーン |
90109-09001 |
from US $0.78 |
||
|
32101A
|
32101A
90119-09025 Bolt(For Drive Plate & Torque Converter Setting)[09.2002 - 01.2005] AZT24#,ST246 ＊９−１．２５ＰＸ１２．４−８．４,イエロー |
90119-09025 |
from US $0.78 |
||
|
32101C
|
32101C
90105-12184
Bolt, Flywheel Setting
[09.2002 - 01.2005] AZT24#,ST246 ＊１２−１．２５ＰＸ２２−１６ |
90105-12184 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-12384 Bolt, Flywheel Setting[09.2002 - 01.2005] AZT24#,ST246 ＊１２−１．２５ＰＸ２２−１６ |
90105-12384 |
from US $0.82 |
||
|
32116
|
32116
32116-20050 Spacer, Drive Plate, Front[09.2002 - 01.2005] AZT24#,ST246 |
32116-20050 |
US $11.47 |
||
|
32117
|
32117
32117-20060 Spacer, Drive Plate, Rear[09.2002 - 01.2005] AZT24#,ST246 |
32117-20060 |
from US $15.05 |
||
|
35035
|
35035
35035-21020 Body Sub-Assy, Fr Oil Pump & Gear[09.2002 - 01.2005] ST246 |
35035-21020 |
US $266.45 |
||
| replacement | |||||
|
35035
|
35035
35035-12070 Body Sub-Assy, Fr Oil Pump & Gear[09.2002 - 01.2005] ST246 |
35035-12070 |
from US $182.51 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[09.2002 - 01.2005] ST246 |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99099 Ring, O (For Front Oil Pump Body)[09.2002 - 01.2005] ST246 |
90301-99099 |
from US $5.62 |
||
|
35301F
|
35301F
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting)[09.2002 - 01.2005] ST246 ＊８−１．２５ＰＸ２８−２８ |
90105-08050 |
US $3.58 |
||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[09.2002 - 01.2005] ST246 |
90148-60027 |
US $0.73 |
||
|
35321
|
35321
35321-21060 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．６９０−１０．６９９ |
35321-21060 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28060 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．６９０−１０．６９９ |
35321-28060 |
US $30.31 |
||
|
35321
|
35321
35321-21070 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．７００−１０．７０９ |
35321-21070 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28070 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．７００−１０．７０９ |
35321-28070 |
US $32.61 |
||
|
35321
|
35321
35321-21080
Gear, Front Oil Pump Drive
[09.2002 - 01.2005] ST246 厚さ＝１０．７１０−１０．７２０ |
35321-21080 |
— | ||
| replacements | |||||
|
35321
|
35321
35321-28080
Gear, Front Oil Pump Drive
[09.2002 - 01.2005] ST246 厚さ＝１０．７１０−１０．７２０ |
35321-28080 |
— | ||
|
35321
|
35321
35321-06030
Gear, Front Oil Pump Drive
[09.2002 - 01.2005] ST246 厚さ＝１０．７１０−１０．７２０ |
35321-06030 |
— | ||
|
35321
|
35321
35321-21090 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．７２１−１０．７３０ |
35321-21090 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28090 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．７２１−１０．７３０ |
35321-28090 |
US $32.61 |
||
|
35321
|
35321
35321-21100 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．７３１−１０．７４０ |
35321-21100 |
US $43.24 |
||
| replacement | |||||
|
35321
|
35321
35321-28100 Gear, Front Oil Pump Drive[09.2002 - 01.2005] ST246 厚さ＝１０．７３１−１０．７４０ |
35321-28100 |
US $32.61 |
||
|
35322
|
35322
35322-21060 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．６９０−１０．６９９ |
35322-21060 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28060 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．６９０−１０．６９９ |
35322-28060 |
US $28.30 |
||
|
35322
|
35322
35322-21070 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７００−１０．７０９ |
35322-21070 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28070 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７００−１０．７０９ |
35322-28070 |
US $30.43 |
||
|
35322
|
35322
35322-21080 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７１０−１０．７２０ |
35322-21080 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28080 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７１０−１０．７２０ |
35322-28080 |
US $30.43 |
||
|
35322
|
35322
35322-21090 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７２１−１０．７３０ |
35322-21090 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28090 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７２１−１０．７３０ |
35322-28090 |
US $30.43 |
||
|
35322
|
35322
35322-21100 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７３１−１０．７４０ |
35322-21100 |
US $40.19 |
||
| replacement | |||||
|
35322
|
35322
35322-28100 Gear, Front Oil Pump Driven[09.2002 - 01.2005] ST246 厚さ＝１０．７３１−１０．７４０ |
35322-28100 |
US $30.43 |
||
|
35370
|
35370
35370-21020 Shaft Assy, Stator[09.2002 - 01.2005] ST246 |
35370-21020 |
US $266.45 |
||
| replacement | |||||
|
35370
|
35370
35370-12110 Shaft Assy, Stator[09.2002 - 01.2005] ST246 |
35370-12110 |
from US $200.93 |
||
|
35617
|
35617
35613-21010 Ring, Forward Clutch Dram Oil Seal[09.2002 - 01.2005] ST246 |
35613-21010 |
from US $1.56 |
||
