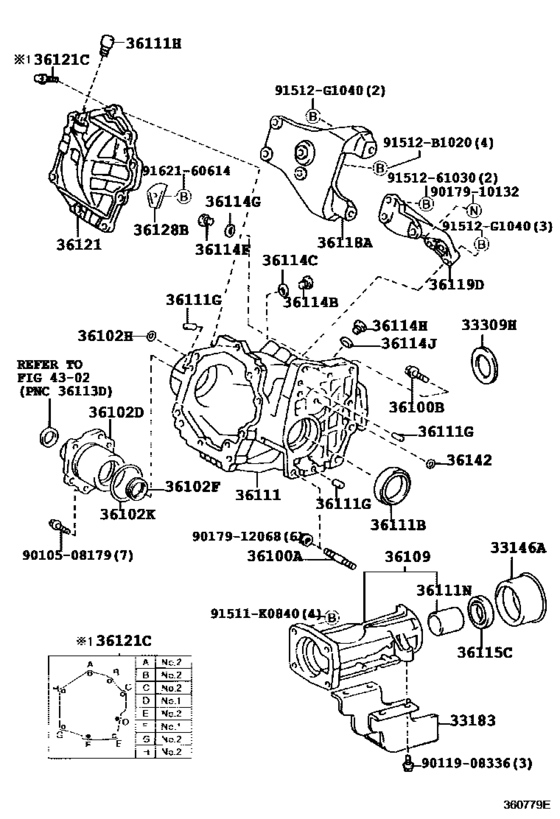

Transfer Case & Extension Housing ([09.2002 - ] (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146A
|
33146A
33146-30020 Deflector, Extension Housing Dust(Mtm)[09.2002 - 01.2005] AZT246,ST246 |
33146-30020 |
from US $17.74 |
||
|
33183
|
33183
33183-21050 Damper, Transfer Dynamic[09.2002 - 01.2005] ST246 |
33183-21050 |
US $117.94 |
||
|
33309H
|
33309H
36275-21010 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．２０，マーク ＡＡ |
36275-21010 |
US $3.49 |
||
|
33309H
|
33309H
36275-21030 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．２２，マーク ＡＣ |
36275-21030 |
US $3.49 |
||
|
33309H
|
33309H
36275-21050 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．２４，マーク ＢＢ |
36275-21050 |
US $3.49 |
||
|
33309H
|
33309H
36275-21070 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．２６，マーク ＣＡ |
36275-21070 |
US $3.49 |
||
|
33309H
|
33309H
36275-21090 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．２８，マーク ＣＣ |
36275-21090 |
US $3.49 |
||
|
33309H
|
33309H
36275-21110 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．３０，マーク ＤＢ |
36275-21110 |
US $3.49 |
||
|
33309H
|
33309H
36275-21130 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．３２，マーク ＥＡ |
36275-21130 |
US $3.49 |
||
|
33309H
|
33309H
36275-21150 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．３４，マーク ＥＣ |
36275-21150 |
US $3.49 |
||
|
33309H
|
33309H
36275-21170 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．３６，マーク ＦＢ |
36275-21170 |
US $3.49 |
||
|
33309H
|
33309H
36275-21190 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．３８，マーク ＧＡ |
36275-21190 |
US $3.49 |
||
|
33309H
|
33309H
36275-21210 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．４０，マーク ＧＣ |
36275-21210 |
US $3.49 |
||
|
33309H
|
33309H
36275-21230 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．４２，マーク ＨＢ |
36275-21230 |
US $3.49 |
||
|
33309H
|
33309H
36275-21250 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．４４，マーク ＪＡ |
36275-21250 |
US $3.49 |
||
|
33309H
|
33309H
36275-21270 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．４６，マーク ＪＣ |
36275-21270 |
US $3.49 |
||
|
33309H
|
33309H
36275-21290 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．４８，マーク ＫＢ |
36275-21290 |
US $3.49 |
||
|
33309H
|
33309H
36275-21310 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．５０，マーク ＬＡ |
36275-21310 |
US $3.49 |
||
|
33309H
|
33309H
36275-21330 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．５２，マーク ＬＣ |
36275-21330 |
US $3.49 |
||
|
33309H
|
33309H
36275-21350 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．５４，マーク ＭＢ |
36275-21350 |
US $3.49 |
||
|
33309H
|
33309H
36275-21370 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．５６，マーク ＮＡ |
36275-21370 |
US $3.49 |
||
|
33309H
|
33309H
36275-21390 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．５８，マーク ＮＣ |
36275-21390 |
US $3.49 |
||
|
33309H
|
33309H
36275-21410 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．６０，マーク ＰＢ |
36275-21410 |
US $3.49 |
||
|
33309H
|
33309H
36275-21430 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．６２，マーク ＱＡ |
36275-21430 |
US $3.49 |
||
|
33309H
|
33309H
36275-21450 Washer, Transfer Output Shaft[09.2002 - 01.2005] ST246 厚さ＝１．６４，マーク ＱＣ |
36275-21450 |
US $3.49 |
||
|
36100A
|
36100A
90116-12033 Bolt, Stud (For Transfer & Transaxle Setting)[09.2002 - 01.2005] ST246 ネジ部長さ＝１５ ＆ ２７，長さ＝５８ |
90116-12033 |
US $2.77 |
||
|
36100A
|
36100A
90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)[09.2002 - 01.2005] ST246 ネジ部長さ＝１９ ＆ １９，長さ＝４７ |
90116-12034 |
from US $1.70 |
||
|
36100B
|
36100B
90105-12228 Bolt (For Transfer & Transaxle Setting)[09.2002 - 01.2005] ST246 ＊１２−１．２５ＰＸ３２−２４ |
90105-12228 |
from US $1.31 |
||
|
36102D
|
36102D
36102-48010 Retainer Sub-Assy, Transfer Rh Bearing[09.2002 - 01.2005] ST246 |
36102-48010 |
US $169.48 |
||
|
36102F
|
36102F
90316-37001 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)[09.2002 - 01.2005] ST246 |
90316-37001 |
from US $16.31 |
||
|
36102H
|
36102H
90301-11018 Ring, O (For Transfer Rh Bearing Retainer)[09.2002 - 01.2005] ST246 |
90301-11018 |
from US $2.91 |
||
|
36102K
|
36102K
90301-70002 Ring, O[09.2002 - 01.2005] ST246 |
90301-70002 |
from US $2.91 |
||
|
36109
|
36109
36109-33010
Housing Sub-Assy, Transfer Extension
[09.2002 - 01.2005] AZT246,ST246 |
36109-33010 |
— | ||
| replacement | |||||
|
36109
|
36109
36109-48010 Housing Sub-Assy, Transfer Extension[09.2002 - 01.2005] AZT246,ST246 |
36109-48010 |
US $138.03 |
||
|
36111
|
36111
36111-21030 Case, Transfer[09.2002 - 01.2005] ST246 |
36111-21030 |
US $413.50 |
||
| replacement | |||||
|
36111
|
36111
36111-21031 Case, Transfer[09.2002 - 01.2005] ST246 |
36111-21031 |
US $413.50 |
||
|
36111
|
36111
36111-21031 Case, Transfer[11.2005 -] ST246 |
36111-21031 |
US $413.50 |
||
|
36111B
|
36111B
90311-58009 Seal, Oil (For Transfer Case)[09.2002 - 01.2005] ST246 |
90311-58009 |
from US $7.53 |
||
|
36111G
|
36111G
90250-08030
Pin, Straight(For Crankshaft)
[09.2002 - 06.2004] AZT246,ST246 長さ＝１６，外径＝８ |
90250-08030 |
— | ||
| replacement | |||||
|
36111G
|
36111G
90250-08046 Pin, Straight(For Intake Manifold Setting)[09.2002 - 06.2004] AZT246,ST246 長さ＝１６，外径＝８ |
90250-08046 |
US $1.79 |
||
|
36111G
|
36111G
90250-08046 Pin, Straight(For Intake Manifold Setting)[06.2004 - 01.2005] AZT246,ST246 長さ＝１６，外径＝８ |
90250-08046 |
US $1.79 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[09.2002 - 01.2005] AZT246,ST246 長さ＝２０，外径＝１０ |
90250-10017 |
from US $1.44 |
||
|
36111H
|
36111H
90930-03133 Plug, Breather[09.2002 - 01.2005] AZT246,ST246 |
90930-03133 |
from US $6.63 |
||
|
36111N
|
36111N
90999-73105 Bush(For Manual Transmission Extension Housing)[09.2002 - 01.2005] AZT246,ST246 |
90999-73105 |
from US $8.78 |
||
|
36114B
|
36114B
90341-18045 Plug(For Manual Transmission Filler)[09.2002 - 01.2005] AZT246,ST246 |
90341-18045 |
US $5.56 |
||
|
36114C
|
36114C
12157-10010 Gasket (For Drain Plug)[09.2002 - 01.2005] AZT246,ST246 |
12157-10010 |
from US $0.76 |
||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[09.2002 - 01.2005] AZT246,ST246 |
90341-18057 |
from US $6.27 |
||
|
36114G
|
36114G
12157-10010 Gasket (For Drain Plug)[09.2002 - 01.2005] AZT246,ST246 |
12157-10010 |
from US $0.76 |
||
|
36114H
|
36114H
90341-18006 Plug (No magnet)[09.2002 - 01.2005] AZT246,ST246 |
90341-18006 |
from US $3.23 |
||
|
36114J
|
36114J
12157-10010 Gasket (For Drain Plug)[09.2002 - 01.2005] AZT246,ST246 |
12157-10010 |
from US $0.76 |
||
|
36115C
|
36115C
90311-38062
Seal, Type T Oil (For Transfer Extension Housing)
[09.2002 - 01.2005] AZT246,ST246 |
90311-38062 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-38090 Seal, Type T Oil (For Transfer Extension Housing)[09.2002 - 01.2005] AZT246,ST246 |
90311-38090 |
from US $5.20 |
||
|
36115C
|
36115C
90311-38090 Seal, Type T Oil (For Transfer Extension Housing)[01.2005 -] AZT246,ST246 |
90311-38090 |
from US $5.20 |
||
|
36118A
|
36118A
36118-21020 Plate, Transfer Stiffener, Rh[09.2002 - 01.2005] ST246 |
36118-21020 |
US $116.48 |
||
|
36119D
|
36119D
36119-21020 Plate, Transfer Stiffener, Center[09.2002 - 01.2005] ST246 |
36119-21020 |
US $93.18 |
||
|
36121
|
36121
36121-48010 Cover, Transfer Case, No.1[09.2002 - 01.2005] ST246 |
36121-48010 |
US $82.99 |
||
|
36121C
|
36121C
90105-08351 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)[01.2005 -] ST246 ＮＯ．１ |
90105-08351 |
US $1.16 |
||
|
36121C
|
36121C
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)[09.2002 - 01.2005] AZT246,ST246 ＮＯ．２ |
91511-J0820 |
from US $0.92 |
||
|
36128B
|
36128B
36128-21010 Deflector, Breather Oil[09.2002 - 01.2005] ST246 |
36128-21010 |
US $3.49 |
||
|
36142
|
36142
36141-21010 Gasket, Transfer Cover[09.2002 - 01.2005] ST246 |
36141-21010 |
from US $2.36 |
||
|
91511K0840
|
91511K0840
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $3.05 |
||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
| replacement | |||||
|
91512B1020
|
91512B1020
90105-A0050 Bolt(For Front Transaxle Case Cover) |
90105-A0050 |
US $3.96 |
||
|
91512G1040
|
91512G1040
91512-G1040 New Genuine Part |
91512-G1040 |
US $3.06 |
||
|
9010508179
|
9010508179
90105-08179 Bolt (For Front Oil Pump Setting) |
90105-08179 |
US $2.18 |
||
| replacement | |||||
|
9010508179
|
9010508179
90105-08198 Bolt (For Front Oil Pump Setting) |
90105-08198 |
US $1.16 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.87 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.97 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $3.05 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
