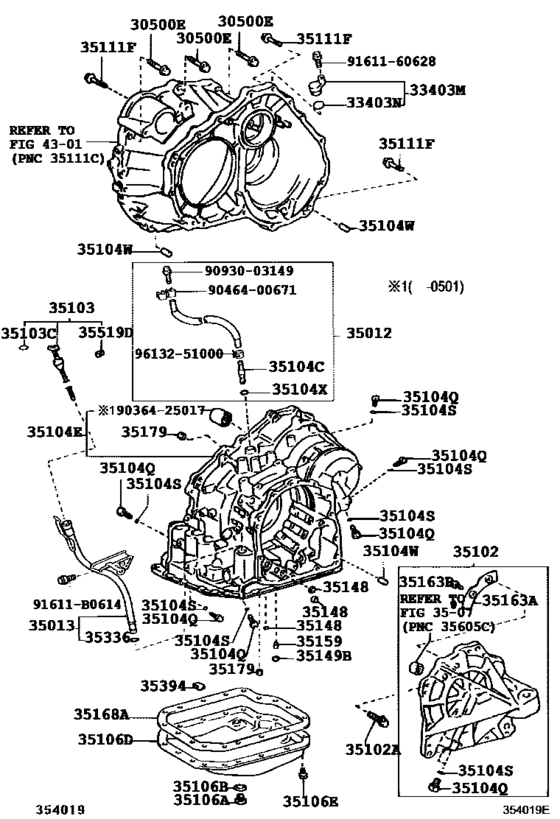

Transmission Case & Oil Pan (Atm) ([09.2002 - ] U140F (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90105-10077 Bolt(For Transaxle Case Protector)[09.2002 - 01.2005] ST246 ＊１０−１．２５ＰＸ４３−２６ |
90105-10077 |
US $4.66 |
||
|
30500E
|
30500E
90119-12250 Bolt(For Transaxle & Engine Setting)[09.2002 - 01.2005] ST246 ＊１２−１．２５ＰＸ５０−３０ |
90119-12250 |
from US $1.60 |
||
|
30500E
|
30500E
91651-41022 Bolt(For Transaxle & Engine Setting)[09.2002 - 01.2005] ST246 ＊１０−１．２５ＰＸ２２−２２ |
91651-41022 |
US $2.87 |
||
|
33403M
|
33403M
33403-21020 Cover Sub-Assy, Speedometer Driven Hole (Atm)[09.2002 - 01.2005] ST246 |
33403-21020 |
US $8.74 |
||
|
33403N
|
33403N
96711-24020 Ring O(For Ventilation Hose No.4)[09.2002 - 01.2005] ST246 |
96711-24020 |
from US $2.81 |
||
|
35012
|
35012
35012-21030 Hose Sub-Assy, Transmission Breather[09.2002 - 01.2005] ST246 |
35012-21030 |
US $18.35 |
||
|
35013
|
35013
35013-21080 Tube Sub-Assy, Transmission Oil Filler[09.2002 - 01.2005] ST246 |
35013-21080 |
US $40.48 |
||
|
35102
|
35102
35102-21011 Cover Sub-Assy, Transaxle Rear[09.2002 - 01.2005] ST246 |
35102-21011 |
US $329.06 |
||
| replacements | |||||
|
35102
|
35102
35102-42010 Cover Sub-Assy, Transaxle Rear[09.2002 - 01.2005] ST246 |
35102-42010 |
US $319.74 |
||
|
35102
|
35102
35102-42H00 Cover Sub-Assy, Transaxle Rear[09.2002 - 01.2005] ST246 |
35102-42H00 |
US $33.49 |
||
|
35102A
|
35102A
90105-08071 Bolt (For Transaxle Rear Cover Setting)[09.2002 - 01.2005] ST246 ＊８−１．２５ＰＸ３０−２５ |
90105-08071 |
US $0.96 |
||
|
35103
|
35103
35103-21060 Gage Sub-Assy, Transmission Oil Level[09.2002 - 01.2005] ST246 |
35103-21060 |
US $15.58 |
||
|
35103C
|
35103C
90301-09009 Ring, O[01.2005 -] AZT24#,ST246,ZZT241 |
90301-09009 |
US $1.89 |
||
|
35104C
|
35104C
90930-03157 Plug, Breather, No.2 (Atm)[09.2002 - 01.2005] ST246 |
90930-03157 |
from US $4.66 |
||
|
35104E
|
35104E
35104-21011 Case Sub-Assy, Automatic Transaxle[09.2002 - 01.2005] ST246 |
35104-21011 |
US $1,244.88 |
||
| replacements | |||||
|
35104E
|
35104E
35104-28083 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [09.2002 - 01.2005] ST246 |
35104-28083 |
from US $963.87 |
||
|
35104E
|
35104E
35104-28130 Case Sub-assy, Automatic Transmission[09.2002 - 01.2005] ST246 |
35104-28130 |
US $1,391.94 |
||
|
35104E
|
35104E
35105-28013 Housing, Transaxle[09.2002 - 01.2005] ST246 |
35105-28013 |
US $733.49 |
||
|
35104E
|
35104E
35105-48023 Housing, Transaxle[09.2002 - 01.2005] ST246 |
35105-48023 |
US $591.14 |
||
|
35104E
|
35104E
35105-48060
Cover Sub-assy, Transmission Case Side
[09.2002 - 01.2005] ST246 |
35105-48060 |
— | ||
|
35104E
|
35104E
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[09.2002 - 01.2005] ST246 |
90105-06320 |
— | ||
|
35104E
|
35104E
90301-06008 Ring, O (For Transfer Oil Strainer)[09.2002 - 01.2005] ST246 |
90301-06008 |
from US $0.76 |
||
|
35104E
|
35104E
90301-10189 Ring, O(For Oil Cooler Tube Union)[09.2002 - 01.2005] ST246 |
90301-10189 |
from US $2.63 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[09.2002 - 01.2005] ST246 |
90341-08001 |
from US $1.52 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[09.2002 - 01.2005] ST246 |
90301-06196 |
from US $2.24 |
||
|
35104W
|
35104W
90250-10036 Pin, Straight (For Transaxle Case)[09.2002 - 01.2005] ST246 |
90250-10036 |
US $1.60 |
||
| replacement | |||||
|
35104W
|
35104W
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[09.2002 - 01.2005] ST246 |
90250-10232 |
US $1.79 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[09.2002 - 01.2005] ST246,ZZT241 |
90301-06005 |
from US $2.30 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[09.2002 - 01.2005] ST246,ZZT241 |
90341-18016 |
from US $1.83 |
||
|
35106B
|
35106B
90430-18008 Gasket[09.2002 - 05.2004] ST246 |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.2002 - 05.2004] ST246 |
90430-T0021 |
US $1.01 |
||
|
35106D
|
35106D
35106-33030 Pan Sub-Assy, Automatic Transaxle Oil[09.2002 - 01.2005] ST246 |
35106-33030 |
from US $85.18 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[09.2002 - 01.2005] AZT24#,ST246 |
90119-06173 |
from US $0.76 |
||
|
35111F
|
35111F
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting)[09.2002 - 01.2005] ST246 ＊８−１．２５ＰＸ４２−３０ |
90105-08233 |
US $0.87 |
||
| replacement | |||||
|
35111F
|
35111F
90080-10187 Bolt (For Transaxle Housing & Transaxle Case Setting)[09.2002 - 01.2005] ST246 ＊８−１．２５ＰＸ４２−３０ |
90080-10187 |
US $3.96 |
||
|
35111F
|
35111F
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[09.2002 - 01.2005] ST246 ＊８−１．２５ＰＸ５０−３０ |
90105-08353 |
from US $0.92 |
||
|
35148
|
35148
35145-21010 Gasket, Transaxle Case[09.2002 - 01.2005] ST246 |
35145-21010 |
from US $5.34 |
||
|
35149B
|
35149B
35149-21010 Gasket, Transaxle Case 2Nd Brake[09.2002 - 01.2005] ST246,ZZT241 |
35149-21010 |
from US $4.37 |
||
|
35159
|
35159
35159-21010 Gasket, Brake Drum[09.2002 - 01.2005] ST246,ZZT241 |
35159-21010 |
from US $6.99 |
||
|
35163A
|
35163A
35163-28010 Plate, Transaxle Rear Cover[09.2002 - 01.2005] ST246 |
35163-28010 |
US $2.97 |
||
|
35163B
|
35163B
90148-60055 Screw, Hex Lobular(For Transaxle Rear Cover Plate)[09.2002 - 01.2005] ST246 |
90148-60055 |
US $0.73 |
||
|
35168A
|
35168A
35168-21011 Gasket, Automatic Transaxle Oil Pan[09.2002 - 10.2003] ST246 |
35168-21011 |
from US $9.09 |
||
|
35168A
|
35168A
35168-21020 Gasket, Automatic Transaxle Oil Pan[10.2003 - 01.2005] ST246 |
35168-21020 |
from US $9.75 |
||
|
35179
|
35179
35179-32010 Gasket, Overdrive Brake[09.2002 - 01.2005] ST246,ZZT241 |
35179-32010 |
US $8.67 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
35394-30011 |
from US $5.62 |
||
|
35519D
|
35519D
35519-52010 Label, Automatic Transmission Information[09.2002 - 01.2005] AZT246,ST246 |
35519-52010 |
US $4.51 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9036425017
|
9036425017
90364-25017 New Genuine Part |
90364-25017 |
US $40.77 |
||
|
9046400671
|
9046400671
90464-00671 Clamp, Throttle Cable |
90464-00671 |
US $3.06 |
||
|
9093003149
|
9093003149
90930-03149 Plug Sub-Assy, Breather(For Transmission) |
90930-03149 |
from US $3.94 |
||
|
9161160628
|
9161160628
91611-60628 Bolt, Hexagon |
91611-60628 |
US $1.51 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
