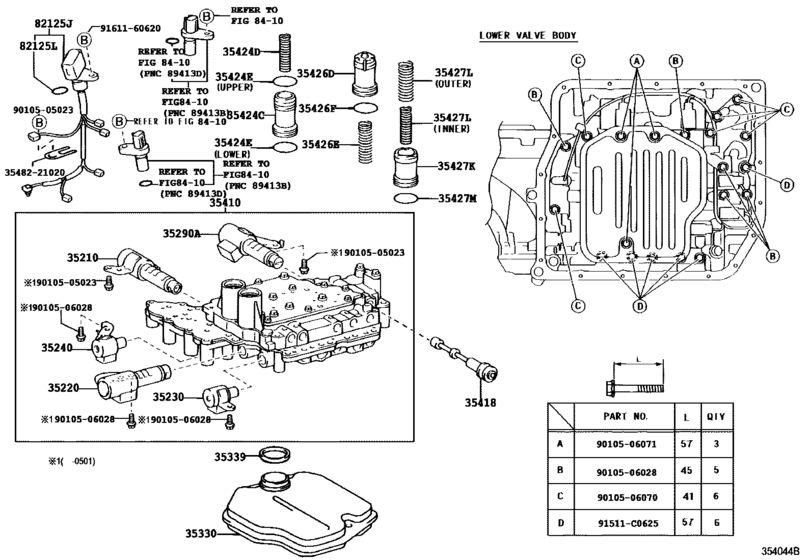

Valve Body & Oil Strainer (Atm) ([09.2002 - ] U140F (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35210
|
35210
35210-21010 Solenoid Assy, Clutch Control, No.1[09.2002 - 01.2005] ST246 |
35210-21010 |
from US $122.76 |
||
|
35220
|
35220
35220-21010 Solenoid Assy, Clutch Control, No.2[09.2002 - 01.2005] ST246 |
35220-21010 |
US $161.60 |
||
|
35230
|
35230
35230-21010 Solenoid Assy, Transmission 3Way, No.2[09.2002 - 01.2005] ST246 |
35230-21010 |
from US $227.14 |
||
|
35240
|
35240
35240-21010 Solenoid Assy, Automatic Transmission 3Way[09.2002 - 01.2005] ST246 |
35240-21010 |
US $190.44 |
||
|
35290A
|
35290A
35290-21010 Solenoid Assy, Line Pressure Control[09.2002 - 01.2005] ST246 |
35290-21010 |
from US $165.79 |
||
|
35330
|
35330
35330-06010 Strainer Assy, Valve Body Oil[09.2002 - 01.2005] ST246 |
35330-06010 |
from US $58.44 |
||
|
35339
|
35339
90301-32010 O-ring (Gasket, Oil Strainer)[09.2002 - 01.2005] ST246,ZZT241 |
90301-32010 |
from US $2.46 |
||
|
35410
|
35410
35410-48011
Body Assy, Transmission Valve
[09.2002 - 01.2005] ST246 |
35410-48011 |
— | ||
|
35418
|
35418
35418-21011 Valve, Manual[09.2002 - 01.2005] ST246 |
35418-21011 |
US $27.66 |
||
|
35424C
|
35424C
35424-21010
Piston, C-1 Accumulator
[09.2002 - 01.2005] ST246 |
35424-21010 |
— | ||
|
35424D
|
35424D
90501-20151 Spring, Compression (For C-1 Accumulator Piston)[09.2002 - 01.2005] ST246 |
90501-20151 |
US $3.93 |
||
|
35424E
|
35424E
90301-27008 Ring, O (For C-1 Accumulator Piston)[09.2002 - 01.2005] ST246 上側 |
90301-27008 |
US $2.62 |
||
|
35424E
|
35424E
90301-30007 Ring, O (For C-1 Accumulator Piston)[09.2002 - 01.2005] ST246 下側 |
90301-30007 |
from US $2.62 |
||
|
35426D
|
35426D
35406-21010 Piston, C-3 Accumulator[09.2002 - 01.2005] ST246 |
35406-21010 |
from US $29.37 |
||
|
35426E
|
35426E
90905-01035 Spring, Compression (For C-3 Accumulator Piston)[09.2002 - 01.2005] ST246 |
90905-01035 |
US $2.62 |
||
|
35426F
|
35426F
90301-30007 Ring, O (For C-1 Accumulator Piston)[09.2002 - 01.2005] ST246 |
90301-30007 |
from US $2.62 |
||
|
35427K
|
35427K
35427-21010
Piston, B-3 Accumulator
[09.2002 - 01.2005] ST246 |
35427-21010 |
— | ||
|
35427L
|
35427L
90501-22041 Spring, Compression (For B-3 Accumulator Piston)[09.2002 - 01.2005] ST246 上側 |
90501-22041 |
US $3.49 |
||
|
35427L
|
35427L
90501-25053 Spring, Compression (For B-3 Accumulator Piston)[09.2002 - 01.2005] ST246 下側 |
90501-25053 |
US $2.33 |
||
|
35427M
|
35427M
90301-28008 Ring, O (For C-2 Accumulator Piston)[09.2002 - 01.2005] ST246 |
90301-28008 |
from US $2.34 |
||
|
82125J
|
82125J
82125-28180 Wire, Transmission[09.2002 - 01.2005] ST246 |
82125-28180 |
from US $47.71 |
||
|
82125L
|
82125L
90301-21009 Ring, O(For Transmission Wire)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90301-21009 |
from US $2.22 |
||
|
91511C0625
|
91511C0625
91511-C0625
Bolt(For Cylinder Head Cover)
|
91511-C0625 |
— | ||
| replacement | |||||
|
91511C0625
|
91511C0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
3548221020
|
3548221020
35482-21020 Clamp, Temperature Sensor |
35482-21020 |
US $1.75 |
||
|
9010505023
|
9010505023
90105-05023 New Genuine Part |
90105-05023 |
US $1.02 |
||
|
9010506028
|
9010506028
90105-06028 New Genuine Part |
90105-06028 |
US $1.02 |
||
|
9010506070
|
9010506070
90105-06070 New Genuine Part |
90105-06070 |
US $1.46 |
||
|
9010506071
|
9010506071
90105-06071 New Genuine Part |
90105-06071 |
US $1.46 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
