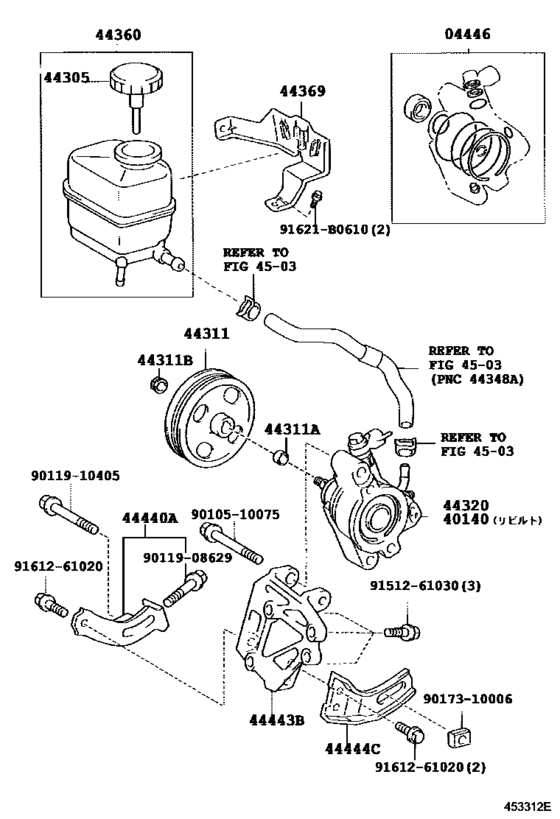

Vane Pump & Reservoir (Power Steering) ([09.2002 - ] (0209- )ST246) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-20130 Gasket Kit, Power Steering Pump[09.2002 - 01.2005] ST246 |
04446-20130 |
US $43.18 |
||
|
40140
|
40140
40140-21040 Pump Assy,vane Rebuilt[09.2002 - 01.2005] ST246 |
40140-21040 |
US $773.14 |
||
| replacement | |||||
|
40140
|
40140
44320-21040 Pump Assy, Vane[09.2002 - 01.2005] ST246 |
44320-21040 |
US $1,100.74 |
||
|
44305
|
44305
44305-20041
Cap Sub-Assy, Vane Pump Oil Reservoir
[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
44305-20041 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-20050 Cap Sub-Assy, Vane Pump Oil Reservoir[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
44305-20050 |
US $31.62 |
||
|
44311
|
44311
44311-20060 Pulley, Vane Pump[09.2002 - 01.2005] ST246 |
44311-20060 |
US $99.01 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[09.2002 - 01.2005] ST246 |
90280-05008 |
US $3.94 |
||
|
44311B
|
44311B
90178-12003 Nut(For Vane Pump Pulley)[09.2002 - 01.2005] ST246 |
90178-12003 |
from US $0.92 |
||
|
44320
|
44320
44320-21040 Pump Assy, Vane[09.2002 - 01.2005] ST246 |
44320-21040 |
US $1,100.74 |
||
|
44360
|
44360
44360-20150 Reservoir Assy, Vane Pump Oil[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
44360-20150 |
US $166.40 |
||
|
44369
|
44369
44390-20060 Bracket, Oil Reservoir, No.1[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
44390-20060 |
US $15.90 |
||
|
44440A
|
44440A
44440-20040 Bracket Assy, Pump[09.2002 - 01.2005] ST246 |
44440-20040 |
US $20.68 |
||
|
44443B
|
44443B
44443-20050 Bracket, Pump[09.2002 - 01.2005] ST246 |
44443-20050 |
US $70.76 |
||
|
44444C
|
44444C
44444-20030 Stay, Pump, Rear[09.2002 - 01.2005] ST246 |
44444-20030 |
US $17.47 |
||
|
91621B0610
|
91621B0610
91621-B0610
New Genuine Part
|
91621-B0610 |
— | ||
| replacement | |||||
|
91621B0610
|
91621B0610
91651-B0612 Bolt |
91651-B0612 |
US $2.15 |
||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.48 |
||
|
9011908629
|
9011908629
90119-08629 New Genuine Part |
90119-08629 |
US $3.20 |
||
|
9011910405
|
9011910405
90119-10405 BOLT |
90119-10405 |
US $4.27 |
||
|
9017310006
|
9017310006
90173-10006 New Genuine Part |
90173-10006 |
US $1.22 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $3.05 |
||
|
9161261020
|
9161261020
91612-61020
Bolt (For Transfer Case)Cover No.2
|
91612-61020 |
— | ||
| replacement | |||||
|
9161261020
|
9161261020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
