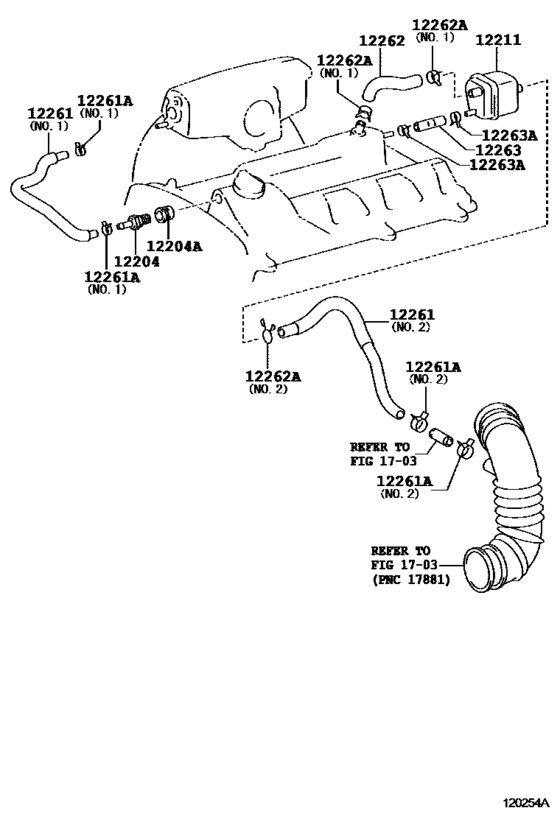

Ventilation Hose ([09.2002 - ] (0209- )3SGTE) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-88581 Valve Sub-Assy, Ventilation[09.2002 - 01.2005] 3SGTE..ST246 |
12204-88581 |
US $16.95 |
||
|
12204A
|
12204A
90480-18008 Grommet(For Ventilation System)[09.2002 - 01.2005] 3SGTE..ST246 |
90480-18008 |
from US $2.67 |
||
|
12211
|
12211
12211-88480 Case, Ventilation, No.1[09.2002 - 01.2005] 3SGTE..ST246 |
12211-88480 |
US $139.40 |
||
|
12261
|
12261
12261-74290 Hose, Ventilation[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．２ |
12261-74290 |
US $34.94 |
||
|
12261
|
12261
12261-88581 Hose, Ventilation[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．１ |
12261-88581 |
US $18.20 |
||
|
12261A
|
12261A
90467-14037 Clip Or Clamp(For Ventilation Hose)[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．１ |
90467-14037 |
US $2.33 |
||
|
12261A
|
12261A
96134-52600 Clip Or Clamp(For Ventilation Hose)[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．２ |
96134-52600 |
from US $2.87 |
||
|
12262
|
12262
12262-88580 Hose, Ventilation, No.2[09.2002 - 01.2005] 3SGTE..ST246 |
12262-88580 |
US $12.23 |
||
|
12262A
|
12262A
90467-24038 Clip(For Ventilation Tube)[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．２ |
90467-24038 |
from US $0.78 |
||
|
12262A
|
12262A
90467-26007 Clip(For Ventilation Hose No.2)[09.2002 - 01.2005] 3SGTE..ST246 ＮＯ．１ |
90467-26007 |
US $4.84 |
||
|
12263
|
12263
12263-88580 Hose, Ventilation, No.3[09.2002 - 01.2005] 3SGTE..ST246 |
12263-88580 |
US $9.03 |
||
|
12263A
|
12263A
90467-15004 Clip(For Ventilation Hose No.2)[09.2002 - 01.2005] 3SGTE..ST246 |
90467-15004 |
US $4.30 |
