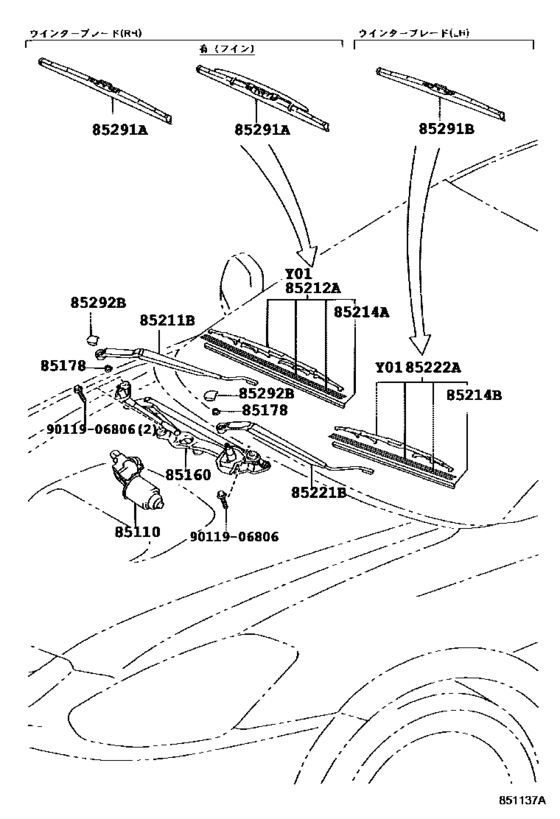

Windshield Wiper ([09.2002 - ] (0209- )) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- ST246
- grade
- GT4
- body
- WG
- ENGINE
- 3SGTE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-21060 Motor Assy, Windshield Wiper[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85110-21060 |
US $398.94 |
||
| replacement | |||||
|
85110
|
85110
85110-21070 Motor Assy, Windshield Wiper[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85110-21070 |
US $407.68 |
||
|
85110
|
85110
85110-21070 Motor Assy, Windshield Wiper[09.2002 - 01.2005] AZT24#,ST246,ZZT241 寒冷地仕様 |
85110-21070 |
US $407.68 |
||
|
85160
|
85160
85150-21050 Link Assy, Windshield Wiper[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85150-21050 |
US $161.62 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
90179-10223 |
from US $0.92 |
||
|
85211B
|
85211B
85211-21020 Arm, Front Wiper, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85211-21020 |
US $71.34 |
||
|
85212A
|
85212A
85212-21010 Blade, Fr Wiper, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85212-21010 |
US $53.87 |
||
| replacement | |||||
|
85212A
|
85212A
85212-30370 Blade, Fr Wiper, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85212-30370 |
US $56.45 |
||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[11.2004 - 01.2005] AZT24#,ST246,ZZT241 |
85214-50100 |
from US $13.07 |
||
|
85214A
|
85214A
85214-50120
Rubber, Wiper, Rh
[09.2002 - 11.2004] AZT24#,ST246,ZZT241 |
85214-50120 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-50100 Rubber, Wiper, Rh[09.2002 - 11.2004] AZT24#,ST246,ZZT241 |
85214-50100 |
from US $13.07 |
||
|
85214B
|
85214B
85214-50060
Rubber, Wiper, Lh
[11.2004 - 01.2005] AZT24#,ST246,ZZT241 |
85214-50060 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[11.2004 - 01.2005] AZT24#,ST246,ZZT241 |
85214-50061 |
from US $8.09 |
||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[08.2006 -] AZT24#,ST246,ZZT241 |
85214-50061 |
from US $8.09 |
||
|
85214B
|
85214B
85214-50130
Rubber, Wiper, Lh
[09.2002 - 11.2004] AZT24#,ST246,ZZT241 |
85214-50130 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[09.2002 - 11.2004] AZT24#,ST246,ZZT241 |
85214-50061 |
from US $8.09 |
||
|
85221B
|
85221B
85221-21020 Arm, Front Wiper, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85221-21020 |
US $77.17 |
||
|
85222A
|
85222A
85222-13040 Blade, Fr Wiper, Lh[11.2004 - 01.2005] AZT24#,ST246,ZZT241 |
85222-13040 |
US $26.35 |
||
| replacement | |||||
|
85222A
|
85222A
85222-13041 Blade, Fr Wiper, Lh[11.2004 - 01.2005] AZT24#,ST246,ZZT241 |
85222-13041 |
US $27.55 |
||
|
85222A
|
85222A
85222-13041 Blade, Fr Wiper, Lh[08.2006 -] AZT24#,ST246,ZZT241 |
85222-13041 |
US $27.55 |
||
|
85222A
|
85222A
85222-21020 Blade, Fr Wiper, Lh[09.2002 - 12.2002] AZT24#,ST246,ZZT241 |
85222-21020 |
US $30.43 |
||
| replacement | |||||
|
85222A
|
85222A
85222-58021 Blade, Fr Wiper, Rh[09.2002 - 12.2002] AZT24#,ST246,ZZT241 |
85222-58021 |
US $27.55 |
||
|
85222A
|
85222A
85222-58020 Blade, Fr Wiper, Lh[12.2002 - 11.2004] AZT24#,ST246,ZZT241 |
85222-58020 |
US $26.35 |
||
| replacement | |||||
|
85222A
|
85222A
85222-58021 Blade, Fr Wiper, Rh[12.2002 - 11.2004] AZT24#,ST246,ZZT241 |
85222-58021 |
US $27.55 |
||
|
85291A
|
85291A
85291-24090 Blade, Front Wiper, Winter, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 寒冷地仕様; ZZT241..X リヤウインドウワイパー−有り（間欠式）＆寒冷地仕様; AZT24#,ST246,ZZT241; ZZT241..X |
85291-24090 |
US $51.72 |
||
|
85291A
|
85291A
85291-24100 Blade, Front Wiper, Winter, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 寒冷地仕様; ZZT241..X リヤウインドウワイパー−有り（間欠式）＆寒冷地仕様; AZT24#,ST246,ZZT241 有り（フィン）; ZZT241..X 有り（フィン） |
85291-24100 |
US $113.16 |
||
|
85291B
|
85291B
85291-44080 Blade Assy, Windshield Wiper[09.2002 - 01.2005] AZT24#,ST246,ZZT241 寒冷地仕様; ZZT241..X リヤウインドウワイパー−有り（間欠式）＆寒冷地仕様 |
85291-44080 |
from US $32.95 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
85292-13010 |
from US $4.11 |
||
|
9011906806
|
9011906806
90119-06806 New Genuine Part |
90119-06806 |
US $1.61 |
||
