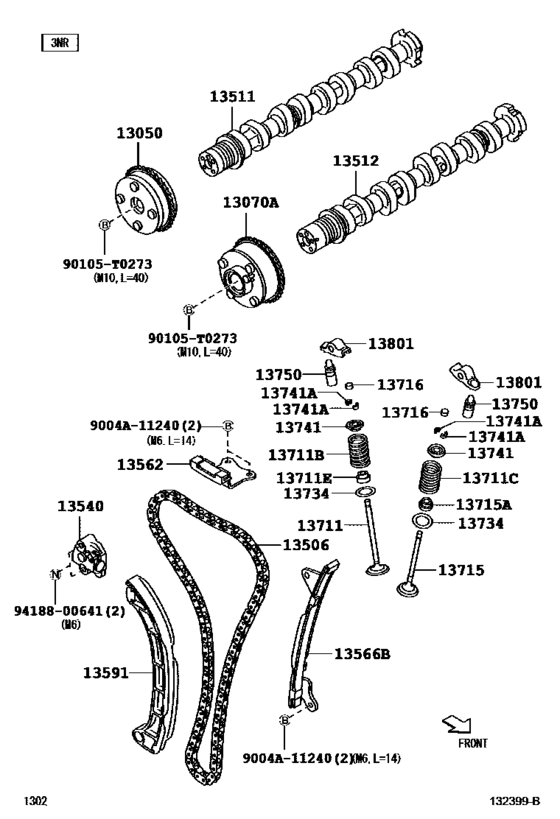

Camshaft & Valve ([06.2016 - ] 3NR (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-0Y020 Gear Assy, Camshaft Timing[06.2016 -] 3NRVE..B401 |
13050-0Y020 |
US $158.40 |
||
|
13070A
|
13070A
13070-BZ010
Gear Assy, Camshaft Timing Exhaust
[06.2016 -] 3NRVE..B401 |
13070-BZ010 |
— | ||
|
13506
|
13506
13506-0Y040 Chain Sub-Assy[06.2016 -] 3NRVE..B401 |
13506-0Y040 |
from US $101.35 |
||
|
13511
|
13511
13501-BZ040
Camshaft
[06.2016 -] 3NRVE..B401 |
13501-BZ040 |
— | ||
|
13512
|
13512
13502-BZ040
Camshaft, No.2
[06.2016 -] 3NRVE..B401 |
13502-BZ040 |
— | ||
|
13540
|
13540
13540-0Y010 Tensioner Assy, Chain, No.1[06.2016 -] 3NRVE..B401 |
13540-0Y010 |
US $29.22 |
||
|
13562
|
13562
13562-0Y020 Damper, Chain Vibration, No.2[06.2016 -] 3NRVE..B401 |
13562-0Y020 |
US $24.74 |
||
|
13566B
|
13566B
13566-0Y010 Guide, Timing Chain[06.2016 -] 3NRVE..B401 |
13566-0Y010 |
US $10.26 |
||
|
13591
|
13591
13591-0Y010 Arm, Timing Chain Tension[06.2016 -] 3NRVE..B401 |
13591-0Y010 |
US $24.36 |
||
|
13711
|
13711
13711-0Y020 Valve, Intake[06.2016 -] 3NRVE..B401 |
13711-0Y020 |
US $10.26 |
||
|
13711B
|
13711B
90501-T0045
Spring, Compression(For Inner)
[06.2016 -] 3NRVE..B401 |
90501-T0045 |
— | ||
|
13711C
|
13711C
90501-T0045
Spring, Compression(For Inner)
[06.2016 -] 3NRVE..B401 |
90501-T0045 |
— | ||
|
13711E
|
13711E
90913-T2004
Seal, Intake Valve Stem Oil
[06.2016 -] 3NRVE..B401 |
90913-T2004 |
— | ||
| replacement | |||||
|
13711E
|
13711E
90080-31084 Seal Or Ring, O(For Valve Stem Oil)[06.2016 -] 3NRVE..B401 |
90080-31084 |
US $4.09 |
||
|
13715
|
13715
13715-0Y020 Valve, Exhaust[06.2016 -] 3NRVE..B401 |
13715-0Y020 |
US $14.14 |
||
|
13715A
|
13715A
90913-T2005
Seal, Exhaust Valve Stem Oil
[06.2016 -] 3NRVE..B401 |
90913-T2005 |
— | ||
| replacement | |||||
|
13715A
|
13715A
90080-31085 Seal Or Ring, O(For Valve Stem Oil)[06.2016 -] 3NRVE..B401 |
90080-31085 |
US $4.58 |
||
|
13716
|
13716
13716-0C020
Cap, Valve Stem
[06.2016 -] 3NRVE..B401 |
13716-0C020 |
— | ||
|
13734
|
13734
13734-0C010 Seat, Valve Spring[06.2016 -] 3NRVE..B401 |
13734-0C010 |
US $0.49 |
||
|
13741
|
13741
13741-0Y010
Retainer, Valve Spring
[06.2016 -] 3NRVE..B401 |
13741-0Y010 |
— | ||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[06.2016 -] 3NRVE..B401 |
90913-03028 |
from US $0.95 |
||
|
13750
|
13750
13750-0C040
Adjuster Assy, Valve Lash
[06.2016 -] 3NRVE..B401 |
13750-0C040 |
— | ||
|
13801
|
13801
13801-0C030
Arm Sub-Assy, Valve Rocker, No.1
[06.2016 -] 3NRVE..B401 |
13801-0C030 |
— | ||
|
9004A11240
|
9004A11240
9004A-11240
New Genuine Part
|
9004A-11240 |
— | ||
