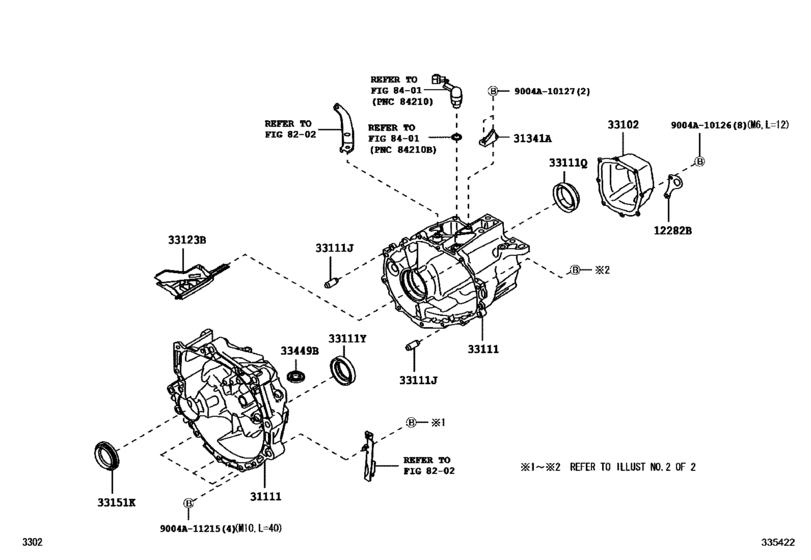

Clutch Housing & Transmission Case (Mtm) ([06.2016 - ] (1606- )5F) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12282B
|
12282B
12282-BZ040
Hanger, Transaxle
[06.2016 -] 3NRVE..B401..5F |
12282-BZ040 |
— | ||
|
31111
|
31111
31115-BZ040
Housing, Clutch
[06.2016 -] B401..5F |
31115-BZ040 |
— | ||
|
31341A
|
31341A
31341-BZ050
Bracket, Clutch Cable
[06.2016 -] B401..5F |
31341-BZ050 |
— | ||
|
33102
|
33102
33102-BZ010
Cover Sub-Assy, Manual Transmission Case
[06.2016 -] B401..5F |
33102-BZ010 |
— | ||
|
33111
|
33111
33111-BZ060
Case, Manual Transmission
[06.2016 -] B401..5F |
33111-BZ060 |
— | ||
|
33111J
|
33111J
9004A-25032
Pin, Straight(For Transmission Case)
[06.2016 -] B401..5F L=25,OD=10 |
9004A-25032 |
— | ||
|
33111Q
|
33111Q
9004A-31050
Seal, Oil(For Transmission Case)
[06.2016 -] B401..5F |
9004A-31050 |
— | ||
|
33111Y
|
33111Y
9004A-31013 Seal, Oil(For Transmission Case)[06.2016 -] B401..5F |
9004A-31013 |
US $3.30 |
||
|
33123B
|
33123B
33123-BZ010
Receiver, Case Cover Oil, No.1(Mtm)
[06.2016 -] B401..5F |
33123-BZ010 |
— | ||
|
33151K
|
33151K
9004A-31051
Seal, Type T Oil
[06.2016 -] B401..5F |
9004A-31051 |
— | ||
|
33449B
|
33449B
33449-BZ030
Magnet, Transmission
[06.2016 -] B401..5F |
33449-BZ030 |
— | ||
|
9004A10126
|
9004A10126
9004A-10126
New Genuine Part
|
9004A-10126 |
— | ||
|
9004A10127
|
9004A10127
9004A-10127
New Genuine Part
|
9004A-10127 |
— | ||
|
9004A11215
|
9004A11215
9004A-11215 New Genuine Part |
9004A-11215 |
US $1.79 |
