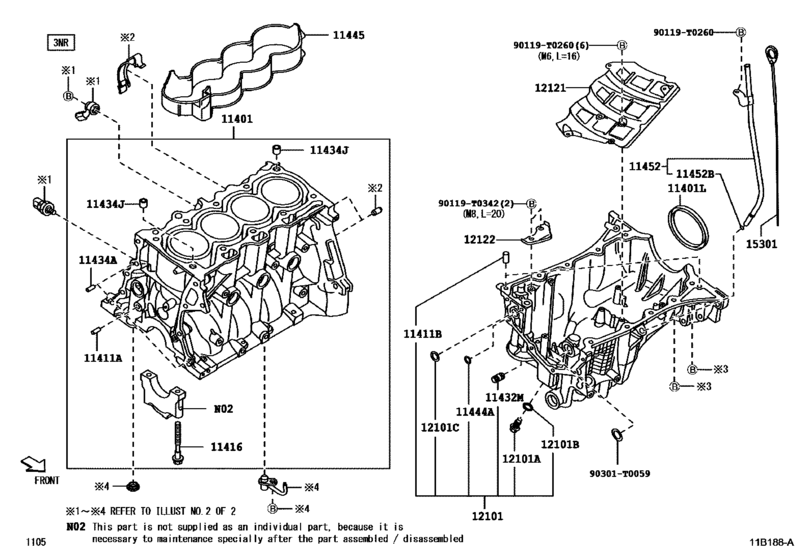

Cylinder Block ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11410-B9030
Block Sub-Assy, Cylinder
[06.2016 -] 3NRVE..B401 |
11410-B9030 |
— | ||
|
11401L
|
11401L
90311-T0074 Seal, Engine Rear Oil[06.2016 -] 3NRVE..B401 |
90311-T0074 |
from US $23.35 |
||
|
11411A
|
11411A
90250-10030 Pin, Straight(For Clutch Housing Set)[06.2016 -] 3NRVE..B401 |
90250-10030 |
from US $1.27 |
||
|
11411B
|
11411B
90250-08120 Pin, Straight, No.1[06.2016 -] 3NRVE..B401 |
90250-08120 |
from US $0.99 |
||
|
11416
|
11416
90910-T2013
Bolt(For Crankshaft Bearing Cap Set)
[06.2016 -] 3NRVE..B401 |
90910-T2013 |
— | ||
|
11432M
|
11432M
90404-19011 Union(For Oil Filter)[06.2016 -] 3NRVE..B401 |
90404-19011 |
US $4.54 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[06.2016 -] 3NRVE..B401 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[06.2016 -] 3NRVE..B401 |
90253-13017 |
from US $1.31 |
||
|
11444A
|
11444A
90301-T0055
Ring, O
[06.2016 -] 3NRVE..B401 |
90301-T0055 |
— | ||
|
11445
|
11445
11445-0Y020 Spacer, Cylinder Block Water Jacket[06.2016 -] 3NRVE..B401 |
11445-0Y020 |
US $15.56 |
||
|
11452
|
11452
11409-BZ130
Guide, Oil Level Gage
[06.2016 -] 3NRVE..B401 |
11409-BZ130 |
— | ||
|
11452B
|
11452B
9004A-30058
Ring, O(For Oil Level Gage Guide)
[06.2016 -] 3NRVE..B401 |
9004A-30058 |
— | ||
|
12101
|
12101
12101-BZ110
Pan Sub-Assy, Oil
[06.2016 -] 3NRVE..B401 |
12101-BZ110 |
— | ||
|
12101A
|
12101A
9004A-34015 Plug(For Oil Pan Drain)[06.2016 -] 3NRVE..B401 |
9004A-34015 |
from US $2.34 |
||
|
12101B
|
12101B
9004A-43022 Gasket(For Oil Pan Drain Plug)[06.2016 -] 3NRVE..B401 |
9004A-43022 |
from US $0.59 |
||
|
12101C
|
12101C
90301-T0057
Ring, O(For Oil Pan)
[06.2016 -] 3NRVE..B401 |
90301-T0057 |
— | ||
|
12121
|
12121
12121-0Y030
Plate, Oil Pan Baffle, No.1
[06.2016 -] 3NRVE..B401 |
12121-0Y030 |
— | ||
|
12122
|
12122
12122-0Y010
Plate, Oil Pan Baffle, No.2
[06.2016 -] 3NRVE..B401 |
12122-0Y010 |
— | ||
|
15301
|
15301
15301-BZ110
Gage Sub-Assy, Oil Level
[06.2016 -] 3NRVE..B401 |
15301-BZ110 |
— | ||
|
90119T0260
|
90119T0260
90119-T0260
New Genuine Part
|
90119-T0260 |
— | ||
|
90119T0342
|
90119T0342
90119-T0342
Bolt (For Transmission Control Cable Bracket)
|
90119-T0342 |
— | ||
|
90301T0059
|
90301T0059
90301-T0059
Ring, O(For Oil Pump)
|
90301-T0059 |
— |
