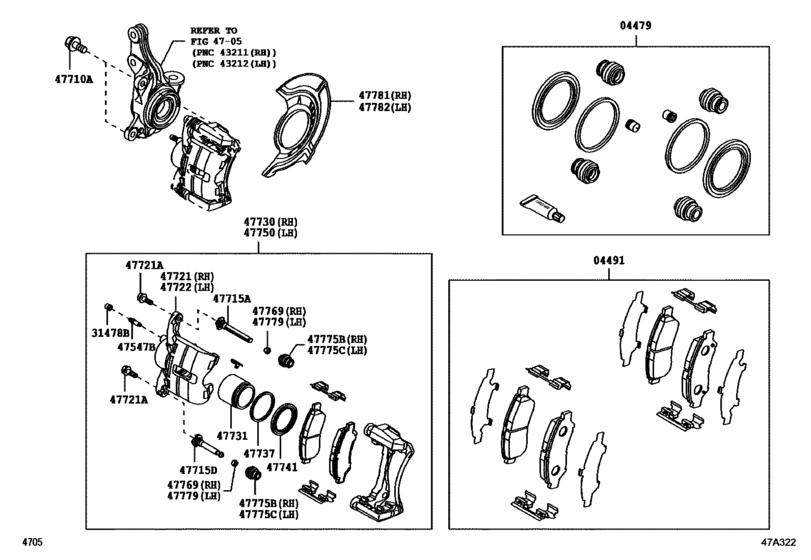

Front Disc Brake Caliper & Dust Cover ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04478-BZ170
Cylinder Kit, Disc Brake, Front
[06.2016 -] B401 |
04478-BZ170 |
— | ||
|
04491
|
04491
04491-BZ030
Pad Kit, Disc Brake, Front
[06.2016 -] B401 |
04491-BZ030 |
— | ||
|
31478B
|
31478B
47548-BZ010
Cap, Bleeder Plug(For Front Disc Brake)
[06.2016 -] B401 |
47548-BZ010 |
— | ||
|
47547B
|
47547B
47547-BZ050 Plug, Bleeder(For Front Disc Brake)[06.2016 -] B401 |
47547-BZ050 |
US $2.33 |
||
|
47710A
|
47710A
90041-05242 Bolt, Hexagon(For Front Disc Brake Caliper)[06.2016 -] B401 |
90041-05242 |
US $4.30 |
||
|
47715A
|
47715A
47715-BZ160
Pin, Front Disc Brake Cylinder Slide
[06.2016 -] B401 |
47715-BZ160 |
— | ||
|
47715D
|
47715D
47715-BZ170
Pin, Front Disc Brake Cylinder Slide, No.2
[06.2016 -] B401 |
47715-BZ170 |
— | ||
|
47721
|
47721
47721-BZ090
Mounting, Front Disc Brake Cylinder, Rh
[06.2016 -] B401 |
47721-BZ090 |
— | ||
|
47721A
|
47721A
9004A-10110 Bolt(For Front Disc Brake Cylinder Slide)[06.2016 -] B401 |
9004A-10110 |
US $3.40 |
||
|
47722
|
47722
47721-BZ090
Mounting, Front Disc Brake Cylinder, Rh
[06.2016 -] B401 |
47721-BZ090 |
— | ||
|
47730
|
47730
47730-BZ080
Cylinder Assy, Front Disc Brake, Rh
[06.2016 -] B401 |
47730-BZ080 |
— | ||
|
47731
|
47731
47731-BZ010
Piston, Front Disc Brake
[06.2016 -] B401 |
47731-BZ010 |
— | ||
|
47737
|
47737
47737-BZ010
Seal, Front Disc Brake Cylinder Piston
[06.2016 -] B401 |
47737-BZ010 |
— | ||
|
47741
|
47741
47741-BZ030
Boot, Front Disc Brake Cylinder
[06.2016 -] B401 |
47741-BZ030 |
— | ||
|
47750
|
47750
47750-BZ100
Cylinder Assy, Disc Brake, Lh
[06.2016 -] B401 |
47750-BZ100 |
— | ||
|
47769
|
47769
47769-BZ030
Bush, Cylinder Slide, No.1(For Front Disc Brake)
[06.2016 -] B401 |
47769-BZ030 |
— | ||
|
47775B
|
47775B
47775-BZ010 Boot, Bush Dust(For Front Disc Brake)[06.2016 -] B401 |
47775-BZ010 |
US $4.66 |
||
|
47775C
|
47775C
47775-BZ010 Boot, Bush Dust(For Front Disc Brake)[06.2016 -] B401 |
47775-BZ010 |
US $4.66 |
||
|
47779
|
47779
47769-BZ030
Bush, Cylinder Slide, No.1(For Front Disc Brake)
[06.2016 -] B401 |
47769-BZ030 |
— | ||
|
47781
|
47781
47781-BZ150
Cover, Disc Brake Dust, Front Rh
[06.2016 -] B401 |
47781-BZ150 |
— | ||
|
47782
|
47782
47782-BZ150
Cover, Disc Brake Dust, Front Lh
[06.2016 -] B401 |
47782-BZ150 |
— |
