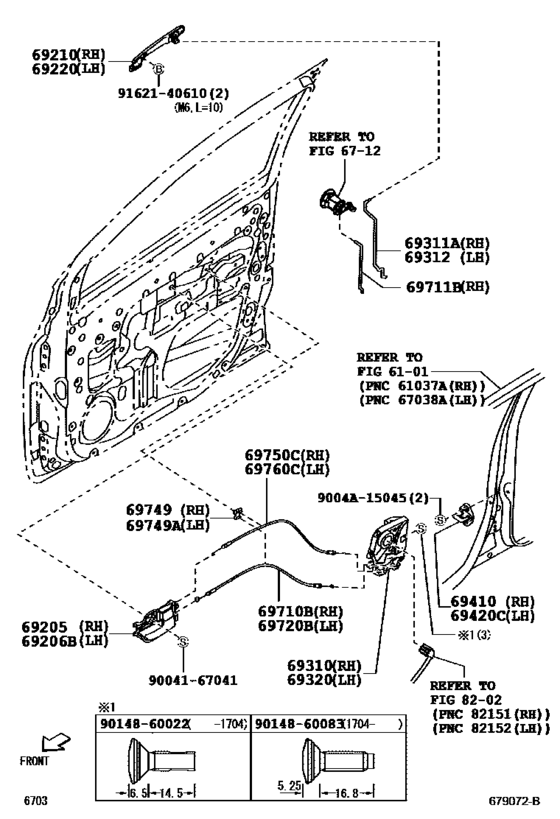

Front Door Lock & Handle ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69270-BZ091-B0
Handle Sub-Assy, Front Door Inside, Rh
[06.2016 -] B401..E DK.GRAY,TRIM4# |
69270-BZ091-B0 |
— | ||
|
69206B
|
69206B
69280-BZ091-B0
Handle Sub-Assy, Front Door Inside, Lh
[06.2016 -] B401..E DK.GRAY,TRIM4# |
69280-BZ091-B0 |
— | ||
|
69210
|
69210
69210-BZ200-A0
Handle Assy, Front Door, Outside Rh
[06.2016 -] B401 WHITE,W09 |
69210-BZ200-A0 |
— | ||
|
69210
|
69210
69210-BZ200-B1
Handle Assy, Front Door, Outside Rh
[06.2016 -] B401 SILVER M.M.,1E7 |
69210-BZ200-B1 |
— | ||
|
69210
|
69210
69210-BZ200-B3
Handle Assy, Front Door, Outside Rh
[06.2016 -] B401 GRAY ME.,1G3 |
69210-BZ200-B3 |
— | ||
|
69210
|
69210
69210-BZ200-C1
Handle Assy, Front Door, Outside Rh
[06.2016 -] B401 BLACK,X13 |
69210-BZ200-C1 |
— | ||
|
69210
|
69210
69210-BZ200-D2
Handle Assy, Front Door, Outside Rh
[06.2016 -] B401 RED,R40 |
69210-BZ200-D2 |
— | ||
|
69210
|
69210
69210-BZ200-D3
Handle Assy, Front Door, Outside Rh
[06.2016 -] B401 ORANGE ME.,R71 |
69210-BZ200-D3 |
— | ||
|
69220
|
69220
69220-BZ200-A0
Handle Assy, Front Door Outside, Lh
[06.2016 -] B401 WHITE,W09 |
69220-BZ200-A0 |
— | ||
|
69220
|
69220
69220-BZ200-B1
Handle Assy, Front Door Outside, Lh
[06.2016 -] B401 SILVER M.M.,1E7 |
69220-BZ200-B1 |
— | ||
|
69220
|
69220
69220-BZ200-B3
Handle Assy, Front Door Outside, Lh
[06.2016 -] B401 GRAY ME.,1G3 |
69220-BZ200-B3 |
— | ||
|
69220
|
69220
69220-BZ200-C1
Handle Assy, Front Door Outside, Lh
[06.2016 -] B401 BLACK,X13 |
69220-BZ200-C1 |
— | ||
|
69220
|
69220
69220-BZ200-D2
Handle Assy, Front Door Outside, Lh
[06.2016 -] B401 RED,R40 |
69220-BZ200-D2 |
— | ||
|
69220
|
69220
69220-BZ200-D3
Handle Assy, Front Door Outside, Lh
[06.2016 -] B401 ORANGE ME.,R71 |
69220-BZ200-D3 |
— | ||
|
69310
|
69310
69310-BZ130
Lock Assy, Front Door, Rh
[06.2016 - 10.2016] B401 |
69310-BZ130 |
— | ||
| replacement | |||||
|
69310
|
69310
69310-BZ370
Lock Assy, Front Door, Rh
[06.2016 - 10.2016] B401 |
69310-BZ370 |
— | ||
|
69310
|
69310
69310-BZ370
Lock Assy, Front Door, Rh
[11.2016 -] B401 |
69310-BZ370 |
— | ||
|
69311A
|
69311A
69311-BZ080
Rod, Front Door Lock Open, Rh
[06.2016 -] B401 |
69311-BZ080 |
— | ||
|
69312
|
69312
69312-BZ080
Rod, Front Door Lock Open, Lh
[06.2016 -] B401 |
69312-BZ080 |
— | ||
|
69320
|
69320
69320-BZ110
Lock Assy, Front Door, Lh
[06.2016 - 10.2016] B401 |
69320-BZ110 |
— | ||
| replacement | |||||
|
69320
|
69320
69320-BZ330
Lock Assy, Front Door, Lh
[06.2016 - 10.2016] B401 |
69320-BZ330 |
— | ||
|
69320
|
69320
69320-BZ330
Lock Assy, Front Door, Lh
[11.2016 -] B401 |
69320-BZ330 |
— | ||
|
69410
|
69410
69410-BZ010 Plate Assy, Front Door Lock Striker[06.2016 -] B401 RH |
69410-BZ010 |
US $13.21 |
||
|
69420C
|
69420C
69410-BZ010 Plate Assy, Front Door Lock Striker[06.2016 -] B401 LH |
69410-BZ010 |
US $13.21 |
||
|
69710B
|
69710B
69710-BZ090
Cable Assy, Front Door Lock Remote Control, Rh
[06.2016 -] B401 |
69710-BZ090 |
— | ||
|
69711B
|
69711B
69711-BZ090
Link, Front Door Lock Remote Control, Rh
[06.2016 -] B401 |
69711-BZ090 |
— | ||
|
69720B
|
69720B
69710-BZ090
Cable Assy, Front Door Lock Remote Control, Rh
[06.2016 -] B401 |
69710-BZ090 |
— | ||
|
69749
|
69749
69749-BZ100
Clamp, Front Door Lock Link
[06.2016 -] B401 RH |
69749-BZ100 |
— | ||
|
69749A
|
69749A
69749-BZ100
Clamp, Front Door Lock Link
[06.2016 -] B401 LH |
69749-BZ100 |
— | ||
|
69750C
|
69750C
69750-BZ090
Cable Assy, Front Door Inside Locking, Rh
[06.2016 -] B401 |
69750-BZ090 |
— | ||
|
69760C
|
69760C
69760-BZ090
Cable Assy, Front Door Inside Locking Lh
[06.2016 -] B401 |
69760-BZ090 |
— | ||
|
9004167041
|
9004167041
90041-67041 New Genuine Part |
90041-67041 |
US $2.15 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014860083
|
9014860083
90148-60083 SCREW HEXALOBULAR |
90148-60083 |
US $1.08 |
||
|
9162140610
|
9162140610
91621-40610 BOLT |
91621-40610 |
from US $0.68 |
||
