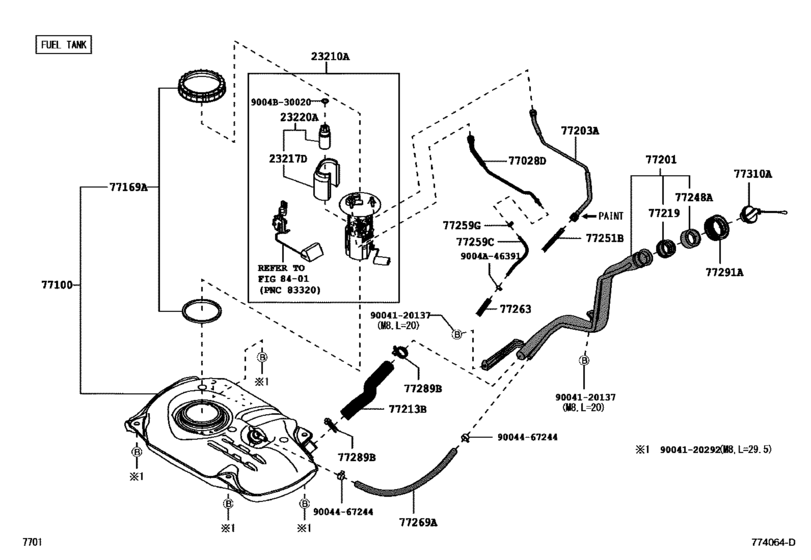

Fuel Tank & Tube ([06.2016 - ] FUEL TANK (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23210A
|
23210A
23210-BZ180
Pump Assy, Fuel W/motor & Bracket
[06.2016 -] 3NRVE..B401 |
23210-BZ180 |
— | ||
|
23217D
|
23217D
23105-BZ010
Filter, Fuel Pump
[06.2016 -] 3NRVE..B401 |
23105-BZ010 |
— | ||
|
23220A
|
23220A
23220-BZ020
Pump Assy, Fuel W/filter
[06.2016 -] 3NRVE..B401 |
23220-BZ020 |
— | ||
|
77028D
|
77028D
77028-BZ010
Tube Sub-Assy, Fuel Emission, Rear
[06.2016 -] B401 |
77028-BZ010 |
— | ||
|
77100
|
77100
77001-BZ360
Tank Assy, Fuel
[06.2016 -] B401 |
77001-BZ360 |
— | ||
|
77169A
|
77169A
77169-BZ040 Gasket, Fuel Suction Tube Set[06.2016 -] B401 |
77169-BZ040 |
US $6.37 |
||
|
77201
|
77201
77201-BZ140
Pipe Sub-Assy, Fuel Tank Inlet
[06.2016 -] B401 |
77201-BZ140 |
— | ||
|
77203A
|
77203A
77203-BZ140
Tube Sub-Assy, Fuel Suction
[06.2016 -] B401 |
77203-BZ140 |
— | ||
|
77213B
|
77213B
77213-BZ150
Hose, Fuel Tank To Filler Pipe
[06.2016 -] B401 |
77213-BZ150 |
— | ||
|
77219
|
77219
77219-20070 Cover, Fuel Tank Filler PipeFUEL TANK FILLER PIPE [06.2016 -] B401 |
77219-20070 |
US $4.95 |
||
|
77248A
|
77248A
77248-20030 Holder, Fuel Tank Filler Pipe Cover[06.2016 -] B401 |
77248-20030 |
US $2.91 |
||
|
77251B
|
77251B
77251-BZ270
Tube, Fuel Main
[06.2016 -] B401 |
77251-BZ270 |
— | ||
|
77259C
|
77259C
77259-BZ060
Hose, Fuel
[06.2016 -] B401 |
77259-BZ060 |
— | ||
|
77259G
|
77259G
90466-09001 Clip(For Fuel Vapor Feed Hose, No.1)[06.2016 -] B401 |
90466-09001 |
US $2.33 |
||
|
77263
|
77263
77263-BZ190
Tube, Fuel Tank To Canister, No.3
[06.2016 -] B401 |
77263-BZ190 |
— | ||
|
77269A
|
77269A
77269-BZ120
Hose, Fuel Tank Breather
[06.2016 -] B401 |
77269-BZ120 |
— | ||
|
77289B
|
77289B
96111-30440 Clamp (For Fuel Filler Pipe)[06.2016 -] B401 |
96111-30440 |
US $2.87 |
||
|
77291A
|
77291A
77291-BZ041
Shield, Fuel Tank Filler Pipe
[06.2016 -] B401 |
77291-BZ041 |
— | ||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[06.2016 -] B401 |
77300-52030 |
from US $25.57 |
||
|
9004120137
|
9004120137
90041-20137 New Genuine Part |
90041-20137 |
US $2.48 |
||
|
9004120292
|
9004120292
90041-20292 New Genuine Part |
90041-20292 |
US $3.40 |
||
|
9004467244
|
9004467244
90044-67244 Clamp Or Clip, Hose(For Water By-Pass Pipe) |
90044-67244 |
US $14.34 |
