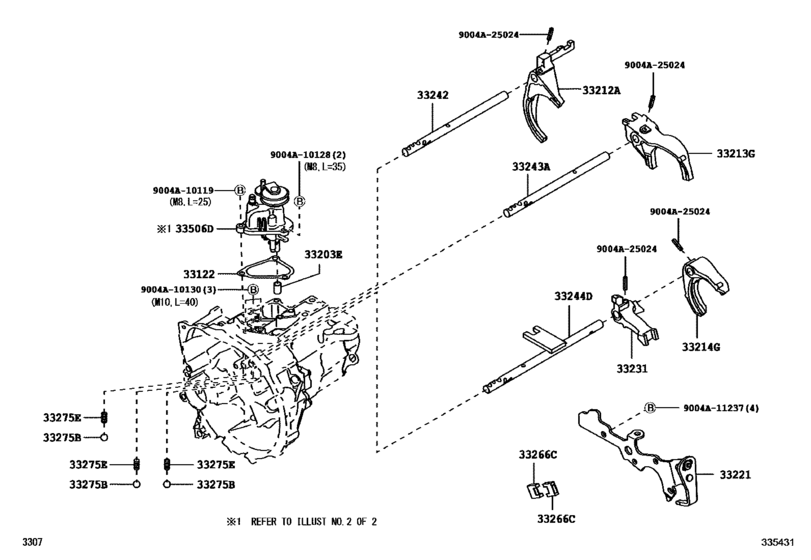

Gear Shift Fork & Lever Shaft (Mtm) ([06.2016 - ] (1606- )5F) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33122
|
33122
33122-BZ040
Gasket, Manual Transmission Case Cover
[06.2016 -] B401..5F |
33122-BZ040 |
— | ||
|
33203E
|
33203E
33572-BZ010
Bush(For Shift Lever Shaft)
[06.2016 -] B401..5F |
33572-BZ010 |
— | ||
|
33212A
|
33212A
33212-BZ050
Fork, Gear Shift, No.1
[06.2016 -] B401..5F |
33212-BZ050 |
— | ||
|
33213G
|
33213G
33213-BZ050
Fork, Gear Shift, No.2
[06.2016 -] B401..5F |
33213-BZ050 |
— | ||
|
33214G
|
33214G
33214-BZ060
Fork, Gear Shift, No.3
[06.2016 -] B401..5F |
33214-BZ060 |
— | ||
|
33221
|
33221
33201-BZ030
Arm, Reverse Shift
[06.2016 -] B401..5F |
33201-BZ030 |
— | ||
|
33231
|
33231
33231-BZ020
Head, Reverse Shift
[06.2016 -] B401..5F |
33231-BZ020 |
— | ||
|
33242
|
33242
33242-BZ031
Shaft, Gear Shift Fork, No.1
[06.2016 -] B401..5F |
33242-BZ031 |
— | ||
|
33243A
|
33243A
33243-BZ061
Shaft, Gear Shift Fork, No.2
[06.2016 -] B401..5F |
33243-BZ061 |
— | ||
|
33244D
|
33244D
33244-BZ061
Shaft, Gear Shift Fork, No.3
[06.2016 -] B401..5F |
33244-BZ061 |
— | ||
|
33266C
|
33266C
33266-BZ031
Plate, Shift Inter Lock
[06.2016 -] B401..5F |
33266-BZ031 |
— | ||
|
33275B
|
33275B
9004A-36044
Ball, Shaft Detent
[06.2016 -] B401..5F |
9004A-36044 |
— | ||
| replacement | |||||
|
33275B
|
33275B
90043-60003 Ball, Shaft Detent[06.2016 -] B401..5F |
90043-60003 |
US $1.31 |
||
|
33275E
|
33275E
9004A-50122
Spring, Compression (For Shift Detent Ball)
[06.2016 -] B401..5F |
9004A-50122 |
— | ||
|
33506D
|
33506D
33506-BZ060
Cover Sub-Assy, Control Shaft
[06.2016 -] B401..5F |
33506-BZ060 |
— | ||
|
9004A10119
|
9004A10119
9004A-10119
New Genuine Part
|
9004A-10119 |
— | ||
|
9004A10128
|
9004A10128
9004A-10128
New Genuine Part
|
9004A-10128 |
— | ||
|
9004A10130
|
9004A10130
9004A-10130
New Genuine Part
|
9004A-10130 |
— | ||
|
9004A11237
|
9004A11237
9004A-11237
New Genuine Part
|
9004A-11237 |
— | ||
|
9004A25024
|
9004A25024
9004A-25024
Pin, Slotted Spring
|
9004A-25024 |
— | ||
| replacement | |||||
|
9004A25024
|
9004A25024
90042-54078 Pin, Slotted Spring |
90042-54078 |
from US $2.27 |
||
