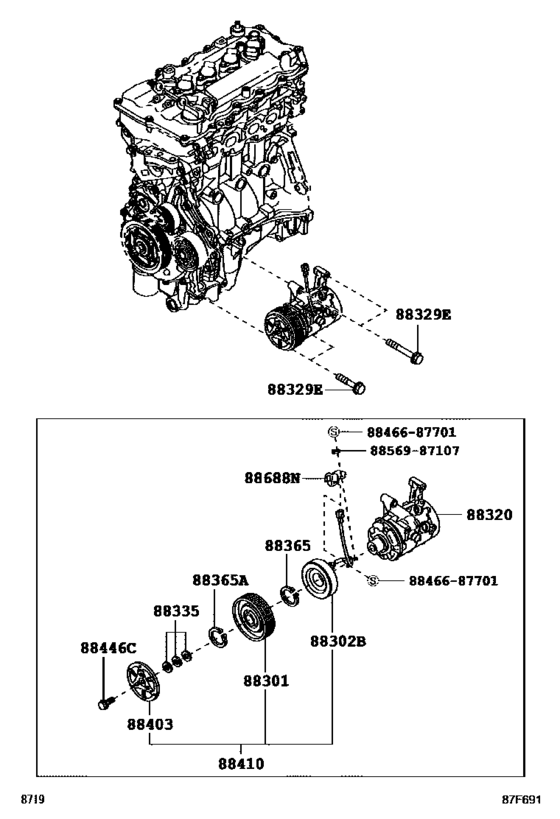

Heating & Air Conditioning - Compressor ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-BZ110
Rotor Sub-Assy, Magnet Clutch
[06.2016 -] B401 |
88412-BZ110 |
— | ||
|
88302B
|
88302B
88411-BZ210
Stator, Magnet Clutch
[06.2016 -] B401 |
88411-BZ210 |
— | ||
|
88320
|
88320
88320-BZ330
Compressor Assy, Cooler
[06.2016 -] B401 |
88320-BZ330 |
— | ||
|
88329E
|
88329E
9004A-10144
Bolt, Compressor, No.1
[06.2016 -] B401 |
9004A-10144 |
— | ||
|
88335
|
88335
88335-14020 Washer[06.2016 -] B401 |
88335-14020 |
from US $1.24 |
||
|
88365
|
88365
90099-07125 Ring, Snap[06.2016 -] B401 |
90099-07125 |
from US $1.01 |
||
|
88365A
|
88365A
90099-07114 Ring, Snap (For Magnet Clutch)[06.2016 -] B401 |
90099-07114 |
from US $1.03 |
||
|
88403
|
88403
88403-BZ080
Hub Sub-Assy, Magnet Clutch
[06.2016 -] B401 |
88403-BZ080 |
— | ||
|
88410
|
88410
88410-BZ320
Clutch Assy, Magnet
[06.2016 -] B401 |
88410-BZ320 |
— | ||
|
88446C
|
88446C
90099-04349 Bolt, Magnet Clutch Setting[06.2016 -] B401 |
90099-04349 |
from US $0.70 |
||
|
88688N
|
88688N
88688-BZ220
Bracket, Cooler
[06.2016 -] B401 |
88688-BZ220 |
— | ||
|
8846687701
|
8846687701
88466-87701
New Genuine Part
|
88466-87701 |
— | ||
| replacement | |||||
|
8846687701
|
8846687701
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
8856987107
|
8856987107
88569-87107
Bracket, Cooler
|
88569-87107 |
— | ||
