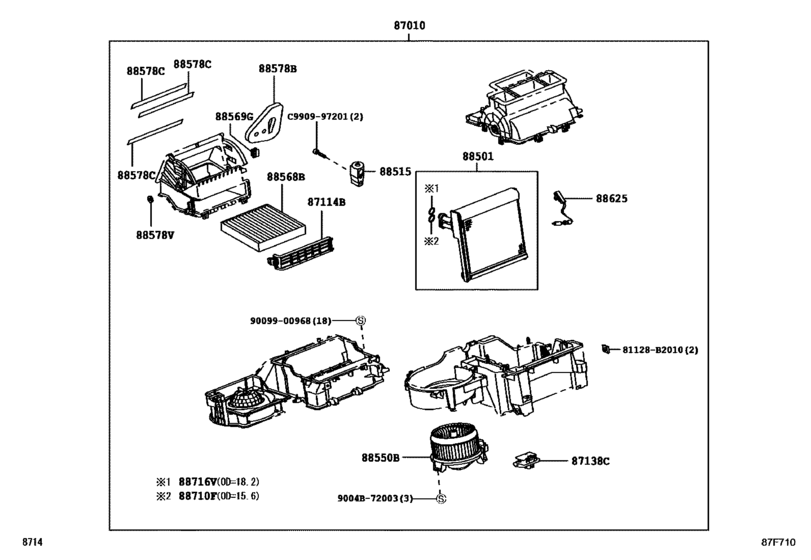

Heating & Air Conditioning - Cooler Unit ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010
|
87010
87010-BZ410
Unit Assy, Air Conditioner
[06.2016 -] B401 |
87010-BZ410 |
— | ||
|
87114B
|
87114B
87114-BZ020 Cover, Heater[06.2016 -] B401 |
87114-BZ020 |
from US $13.45 |
||
|
87138C
|
87138C
87138-BZ080
Resistor, Blower
[06.2016 -] B401 |
87138-BZ080 |
— | ||
|
88501
|
88501
88501-BZ180
Evaporator Sub-Assy, Cooler, No.1
[06.2016 -] B401 |
88501-BZ180 |
— | ||
|
88515
|
88515
88515-BZ150
Valve, Cooler Expansion
[06.2016 -] B401 |
88515-BZ150 |
— | ||
|
88550B
|
88550B
88550-B4010
Motor Assy, Blower
[06.2016 -] B401 FR UNIT |
88550-B4010 |
— | ||
|
88550B
|
88550B
88550-BZ110
Motor Assy, Blower
[06.2016 -] B401 RR UNIT |
88550-BZ110 |
— | ||
|
88568B
|
88568B
88568-BZ060 Filter, Air[06.2016 -] B401 |
88568-BZ060 |
US $54.09 |
||
|
88569G
|
88569G
88888-BZ010
Clamp
[06.2016 -] B401 |
88888-BZ010 |
— | ||
|
88578B
|
88578B
88578-BZ620
Packing, Cooling Unit, No.1
[06.2016 -] B401 FR UNIT |
88578-BZ620 |
— | ||
|
88578B
|
88578B
88578-BZB60
Packing, Cooling Unit, No.1
[06.2016 -] B401 RR UNIT |
88578-BZB60 |
— | ||
|
88578C
|
88578C
88578-BZ740
Packing, Cooling Unit, No.2
[06.2016 -] B401 |
88578-BZ740 |
— | ||
|
88578V
|
88578V
88578-BZ770
Packing, Cooling Unit, No.3
[06.2016 -] B401 |
88578-BZ770 |
— | ||
|
88625
|
88625
88625-BZ060 Thermistor, Cooler, No.1[06.2016 -] B401 |
88625-BZ060 |
US $29.41 |
||
|
88710F
|
88710F
15188-87402 Ring, O[06.2016 -] B401 OD=15.6 ID=10.8 |
15188-87402 |
from US $2.09 |
||
|
88716V
|
88716V
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)[06.2016 -] B401 OD=18.2 ID=13.4 |
15188-87403 |
from US $1.94 |
||
|
9004B72003
|
9004B72003
9004B-72003
New Genuine Part
|
9004B-72003 |
— | ||
|
81128B2010
|
81128B2010
81128-B2010 Nut, Headlamp |
81128-B2010 |
US $2.48 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
C990997201
|
C990997201
C9909-97201 Bolt(For Cooler Expansion Valve) |
C9909-97201 |
US $2.15 |
