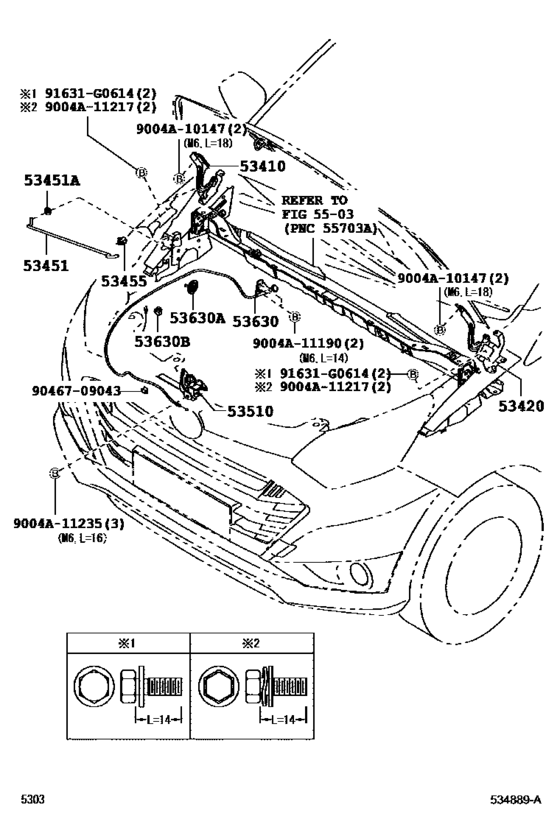

Hood Lock & Hinge ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53401-BZ080
Hinge Assy, Hood, Rh
[06.2016 -] B401 |
53401-BZ080 |
— | ||
|
53420
|
53420
53402-BZ050
Hinge Assy, Hood, Lh
[06.2016 -] B401 |
53402-BZ050 |
— | ||
|
53451
|
53451
53451-BZ170
Rod, Hood Support
[06.2016 -] B401 |
53451-BZ170 |
— | ||
|
53451A
|
53451A
9004A-48054 Grommet(For Hood Support Rod)[06.2016 -] B401 |
9004A-48054 |
US $1.79 |
||
|
53455
|
53455
53455-BZ100
Clamp, Hood Support Rod
[06.2016 -] B401 |
53455-BZ100 |
— | ||
|
53510
|
53510
53510-BZ270
Lock Assy, Hood
[06.2016 -] B401 |
53510-BZ270 |
— | ||
|
53630
|
53630
53630-BZ250
Cable Assy, Hood Lock Control
[06.2016 -] B401 |
53630-BZ250 |
— | ||
|
53630A
|
53630A
85373-BZ090 Grommet(For Hood Lock Control Cable)[06.2016 -] B401 |
85373-BZ090 |
US $5.68 |
||
|
53630B
|
53630B
82711-BZ100 Clamp, Rear Washer Hose[06.2016 -] B401 |
82711-BZ100 |
US $1.08 |
||
|
9004A10147
|
9004A10147
9004A-10147
New Genuine Part
|
9004A-10147 |
— | ||
|
9004A11190
|
9004A11190
9004A-11190 New Genuine Part |
9004A-11190 |
US $1.75 |
||
|
9004A11217
|
9004A11217
9004A-11217
BOLT WWASHER
|
9004A-11217 |
— | ||
| replacement | |||||
|
9004A11217
|
9004A11217
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
|
9004A11235
|
9004A11235
9004A-11235 New Genuine Part |
9004A-11235 |
US $1.60 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $3.58 |
||
