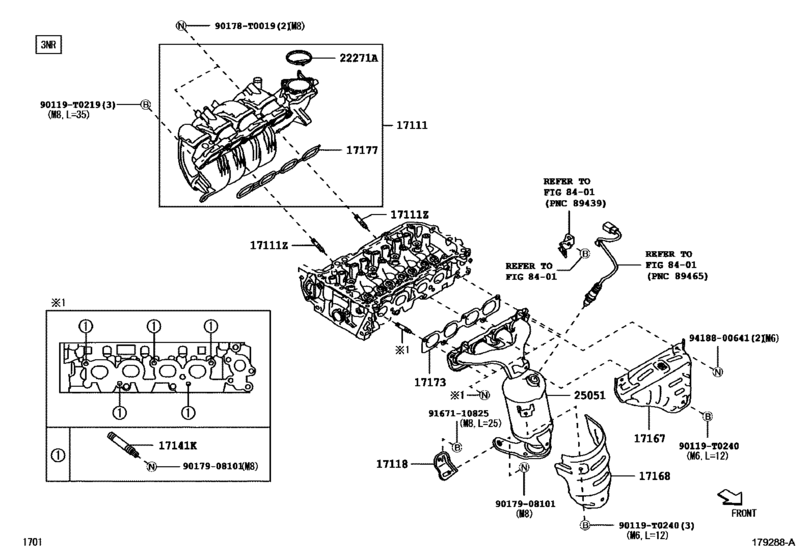

Manifold ([06.2016 - ] 3NR (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-BZ120
Manifold, Intake
[06.2016 - 11.2016] 3NRVE..B401 |
17120-BZ120 |
— | ||
| replacement | |||||
|
17111
|
17111
17120-BZ121
Manifold, Intake
[06.2016 - 11.2016] 3NRVE..B401 |
17120-BZ121 |
— | ||
|
17111
|
17111
17120-BZ121
Manifold, Intake
[12.2016 -] 3NRVE..B401 |
17120-BZ121 |
— | ||
|
17111Z
|
17111Z
90126-T0019
Bolt, Stud(For Intake Manifold To Cylinder Head)
[06.2016 -] 3NRVE..B401 |
90126-T0019 |
— | ||
|
17118
|
17118
17118-BZ150
Stay, Manifold
[06.2016 -] 3NRVE..B401 |
17118-BZ150 |
— | ||
|
17141K
|
17141K
90126-08063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) [06.2016 -] 3NRVE..B401 |
90126-08063 |
from US $0.82 |
||
|
17167
|
17167
17167-BZ130
Insulator, Exhaust Manifold Heat, No.1
[06.2016 -] 3NRVE..B401 |
17167-BZ130 |
— | ||
|
17168
|
17168
17168-0Y020
Insulator, Exhaust Manifold Heat, No.2
[06.2016 -] 3NRVE..B401 |
17168-0Y020 |
— | ||
|
17173
|
17173
17173-BZ070 Gasket, Exhaust Manifold To Head[06.2016 -] 3NRVE..B401 |
17173-BZ070 |
US $14.69 |
||
|
17177
|
17177
17177-0Y030
Gasket, Intake Manifold To Head, No.1
[06.2016 -] 3NRVE..B401 |
17177-0Y030 |
— | ||
|
22271A
|
22271A
22271-BZ030
Gasket, Throttle Body
[06.2016 -] 3NRVE..B401 |
22271-BZ030 |
— | ||
|
25051
|
25051
25051-BZ040
Converter Sub-Assy, Exhaust Manifold
[06.2016 -] 3NRVE..B401 |
25051-BZ040 |
— | ||
|
90119T0219
|
90119T0219
90119-T0219
New Genuine Part
|
90119-T0219 |
— | ||
|
90119T0240
|
90119T0240
90119-T0240
New Genuine Part
|
90119-T0240 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.89 |
||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.78 |
||
|
9167110825
|
9167110825
91671-10825 BOLT, FLANGE |
91671-10825 |
US $1.43 |
||
